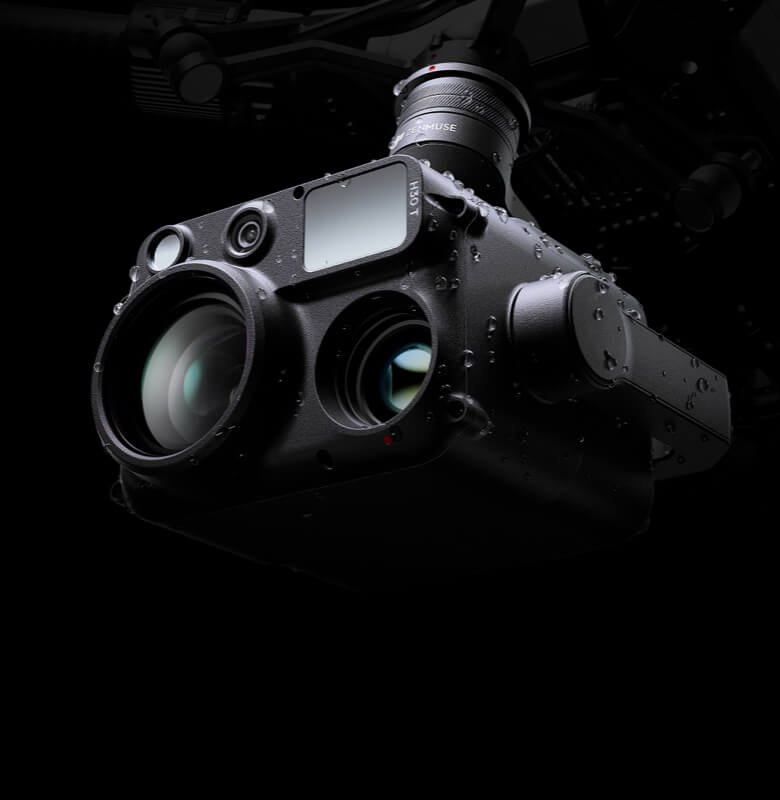

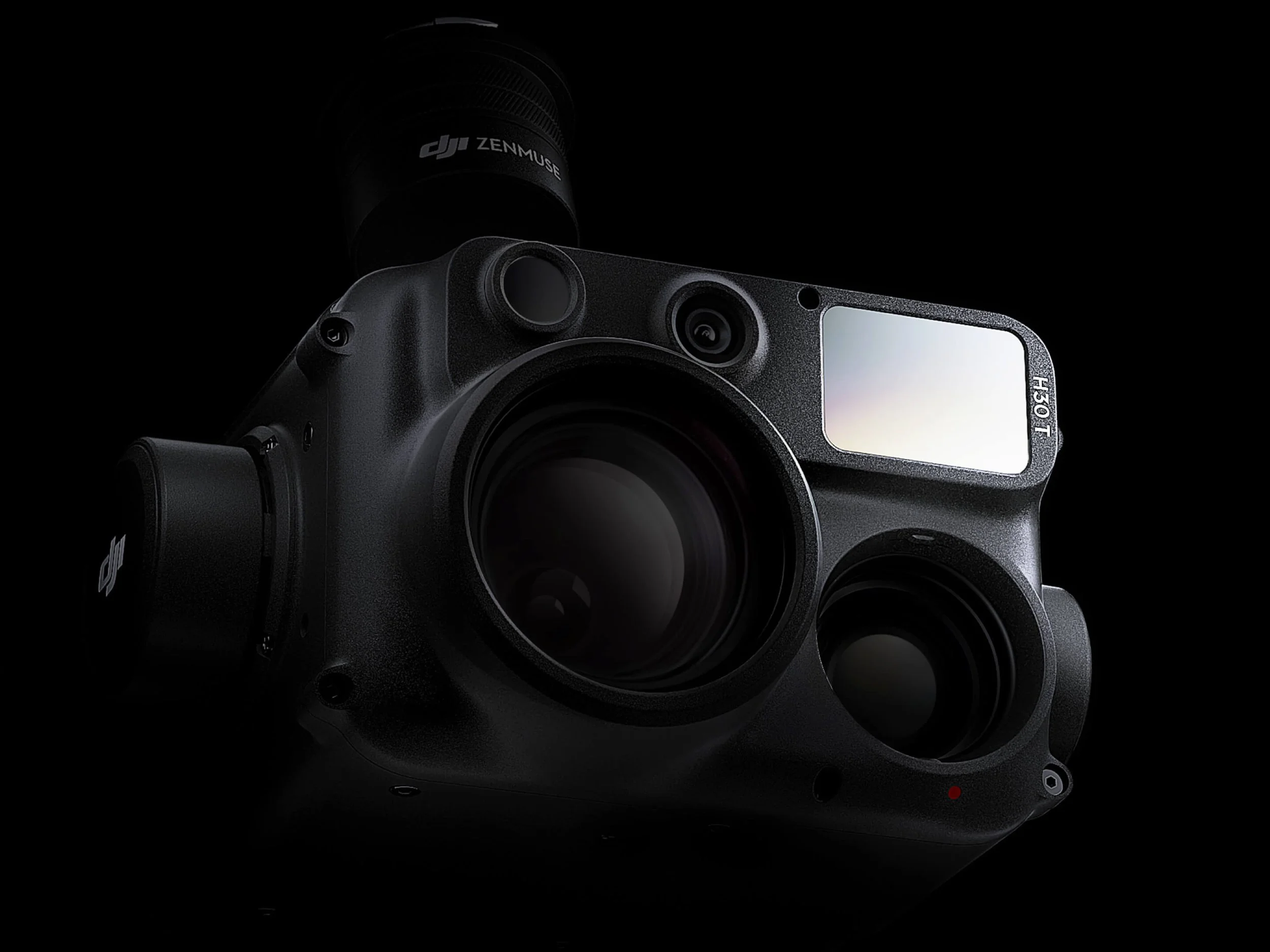

ZENMUSE H30 SERIES
Unparalleled Vision, Day or Night

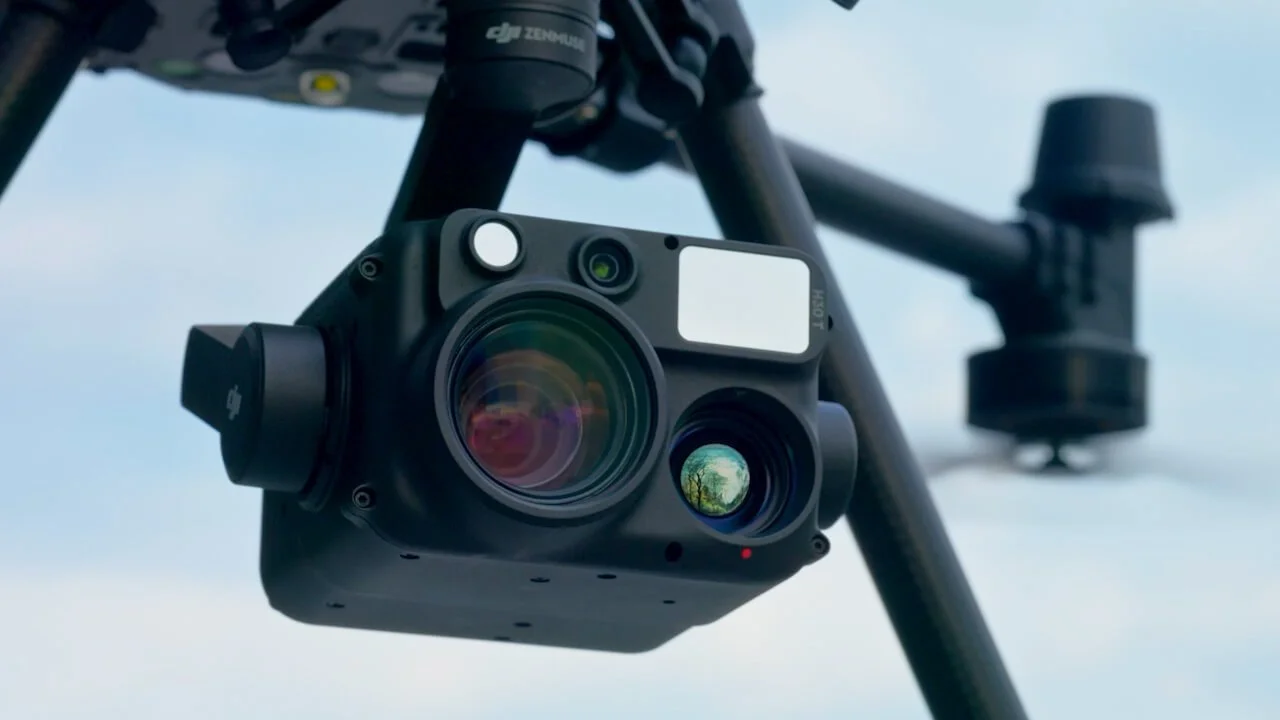

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.
Versatile Performance,
Day and Night
Further and Clearer Vision
Smarter Multi-Scenario Operations
Enhanced Night Vision
More Powerful
Infrared Performance
Superior Environmental Adaptability
More Reliable Information Sync and Retention

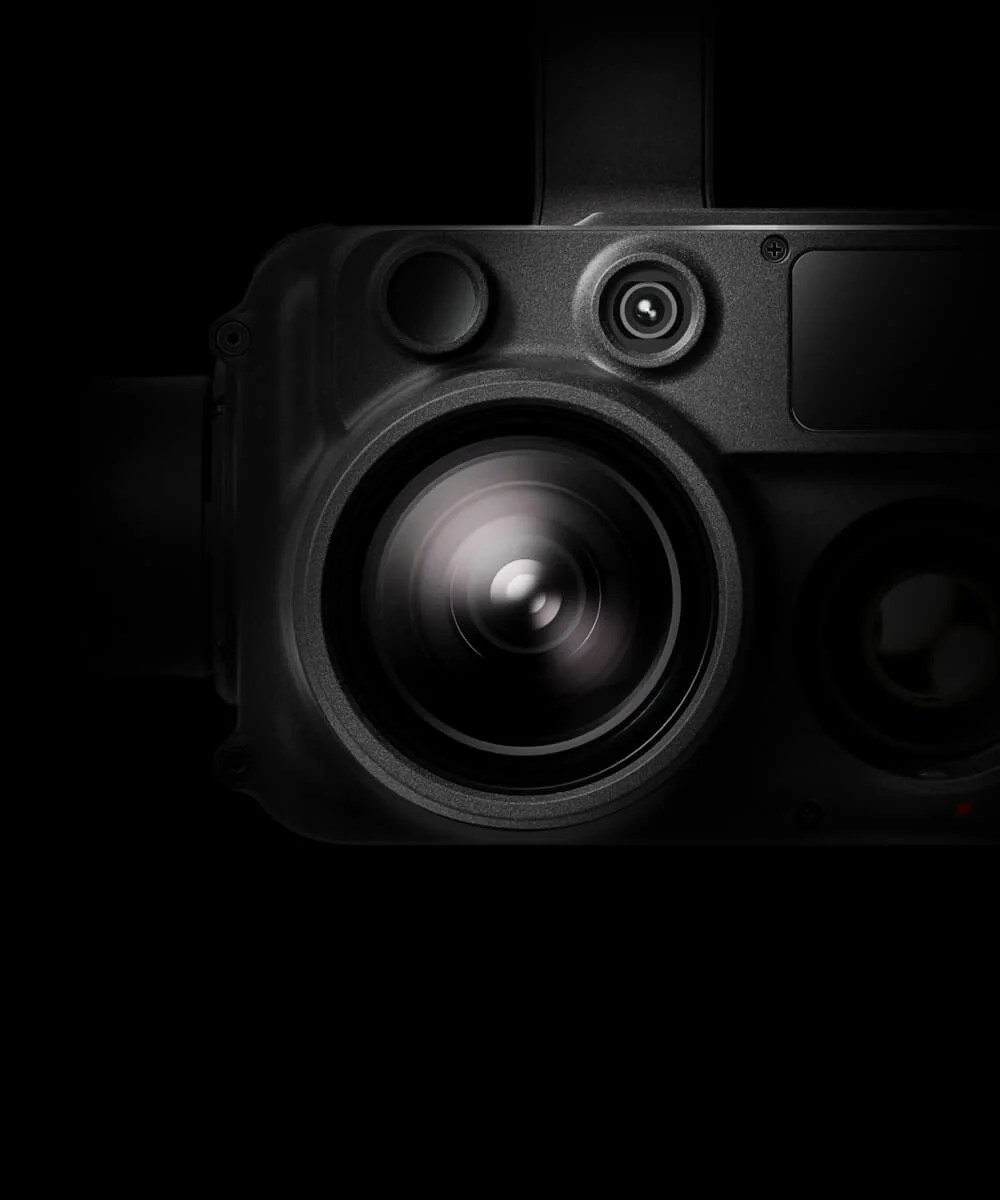

Further and Clearer Vision
Up to 34× Optical Zoom
and 400× Digital Zoom
The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, *it not only observes subjects at greater distances but also captures more details.
Max 3000m Laser Range Finder
The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, * accurately capturing the position information of subjects within a range from 3 m to 3000 m, * including linear distance from the camera, altitude, and GPS coordinates
More Stable Imagery
from the Zoom Camera

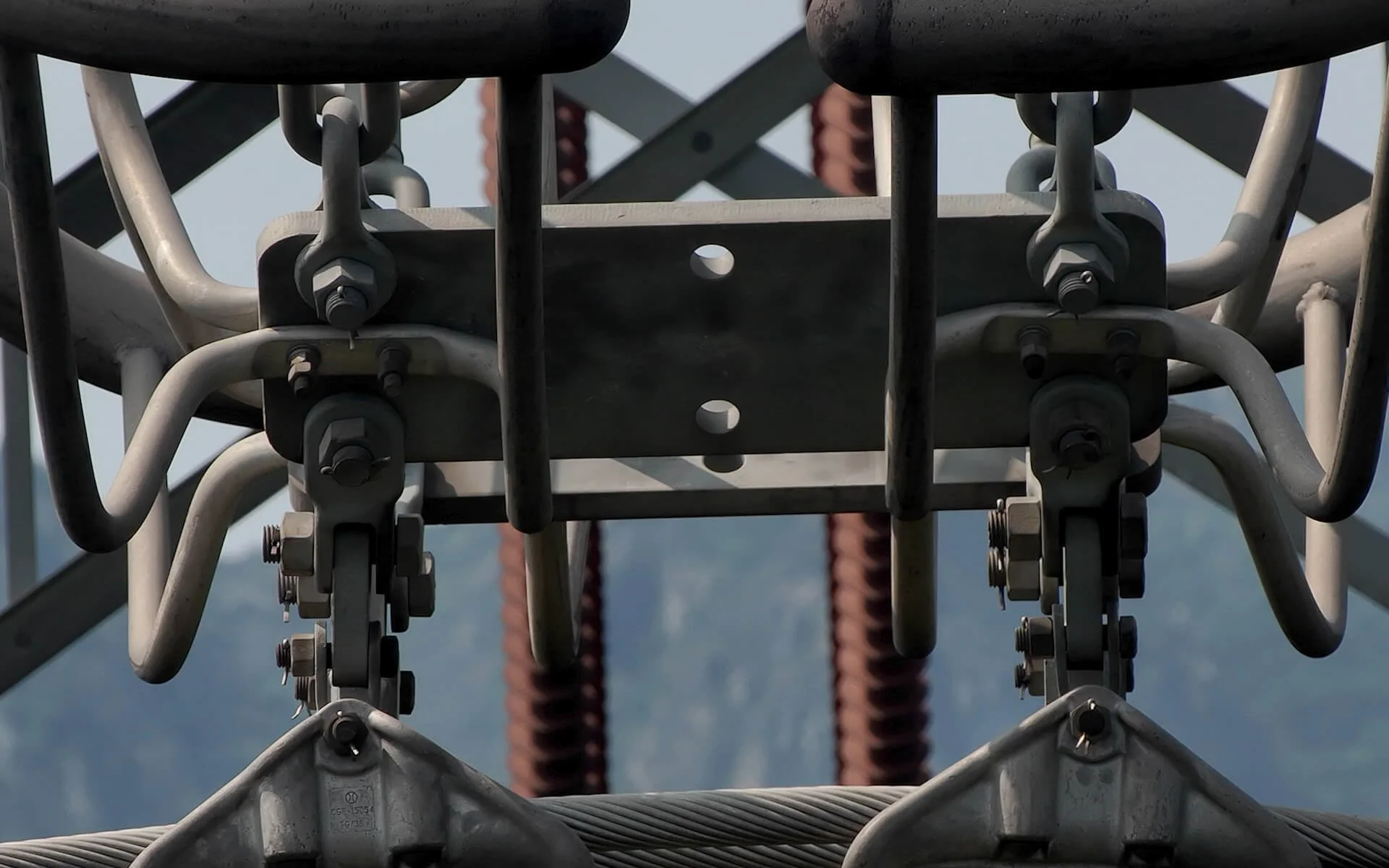

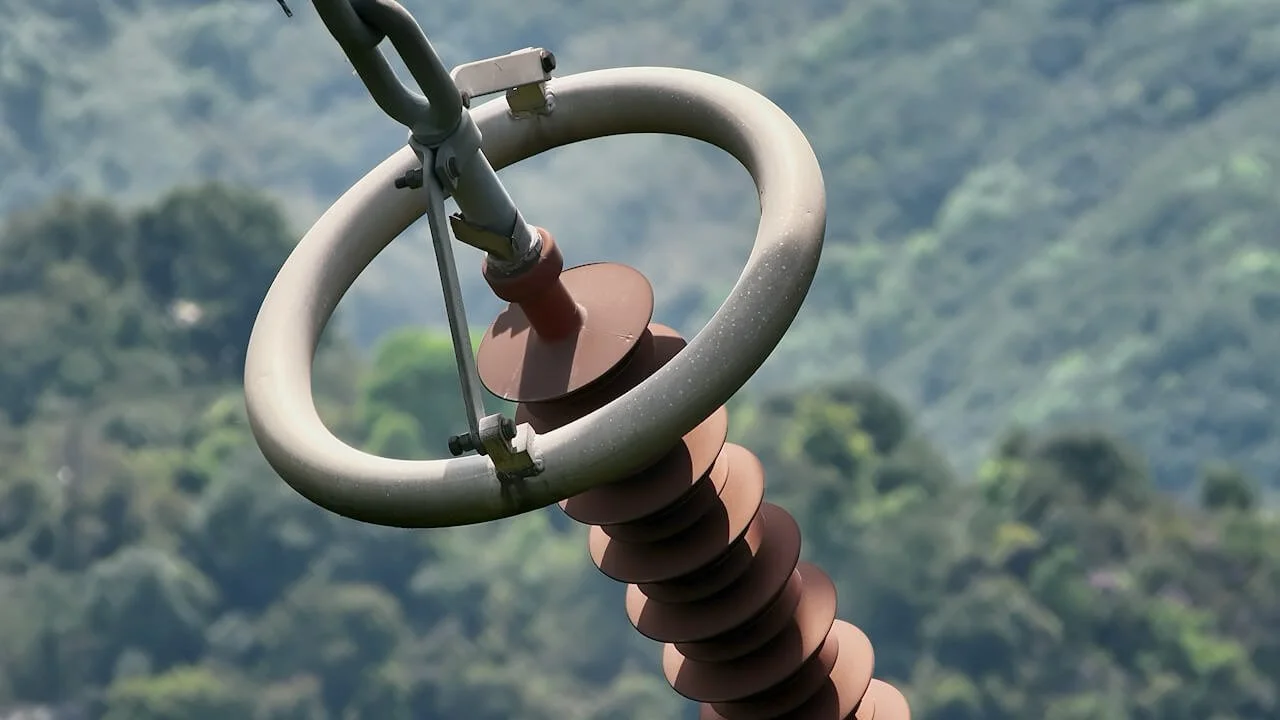

With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.
Enhanced Night Vision

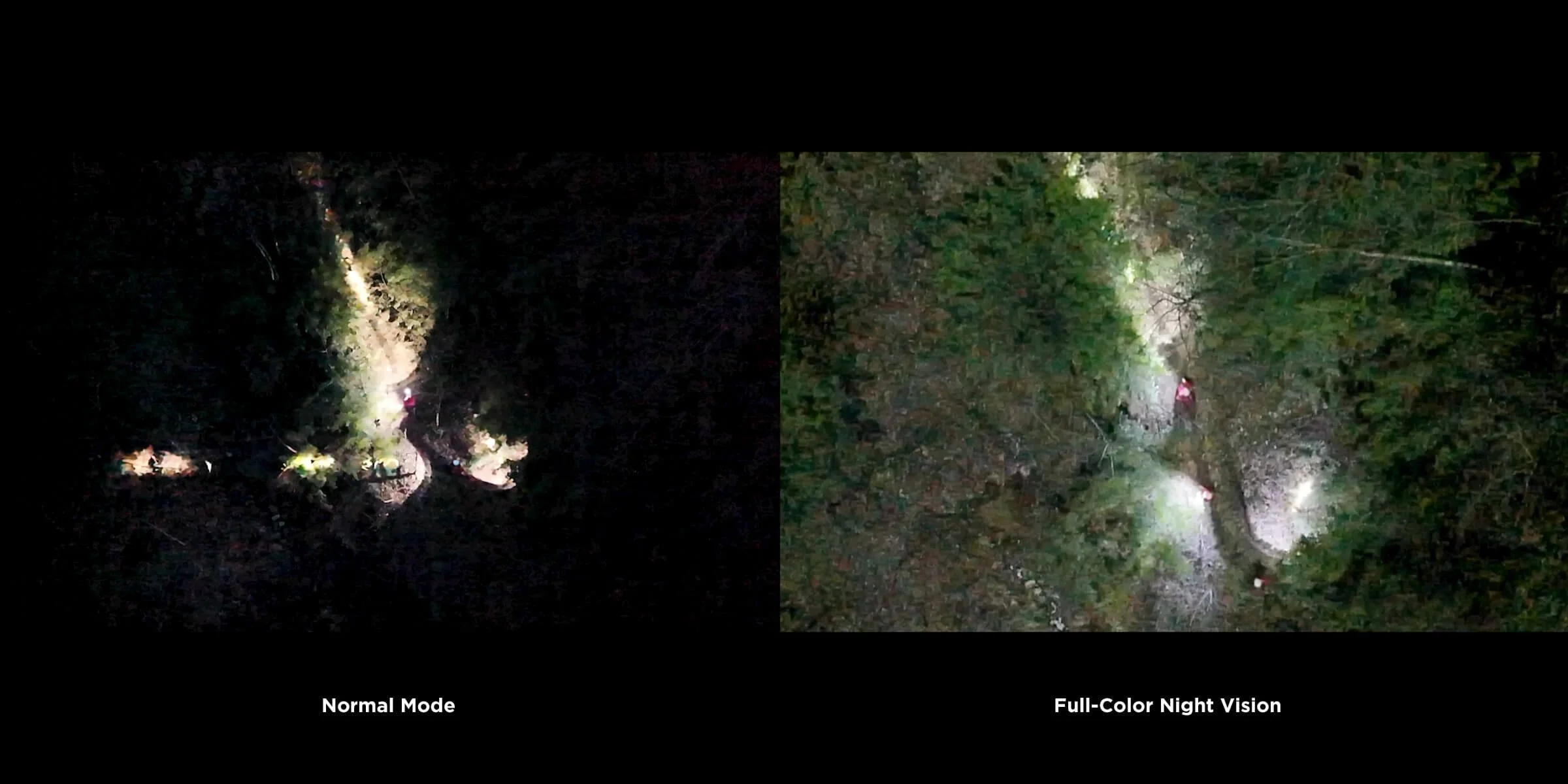

Supports Full-Color Night Vision
Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.

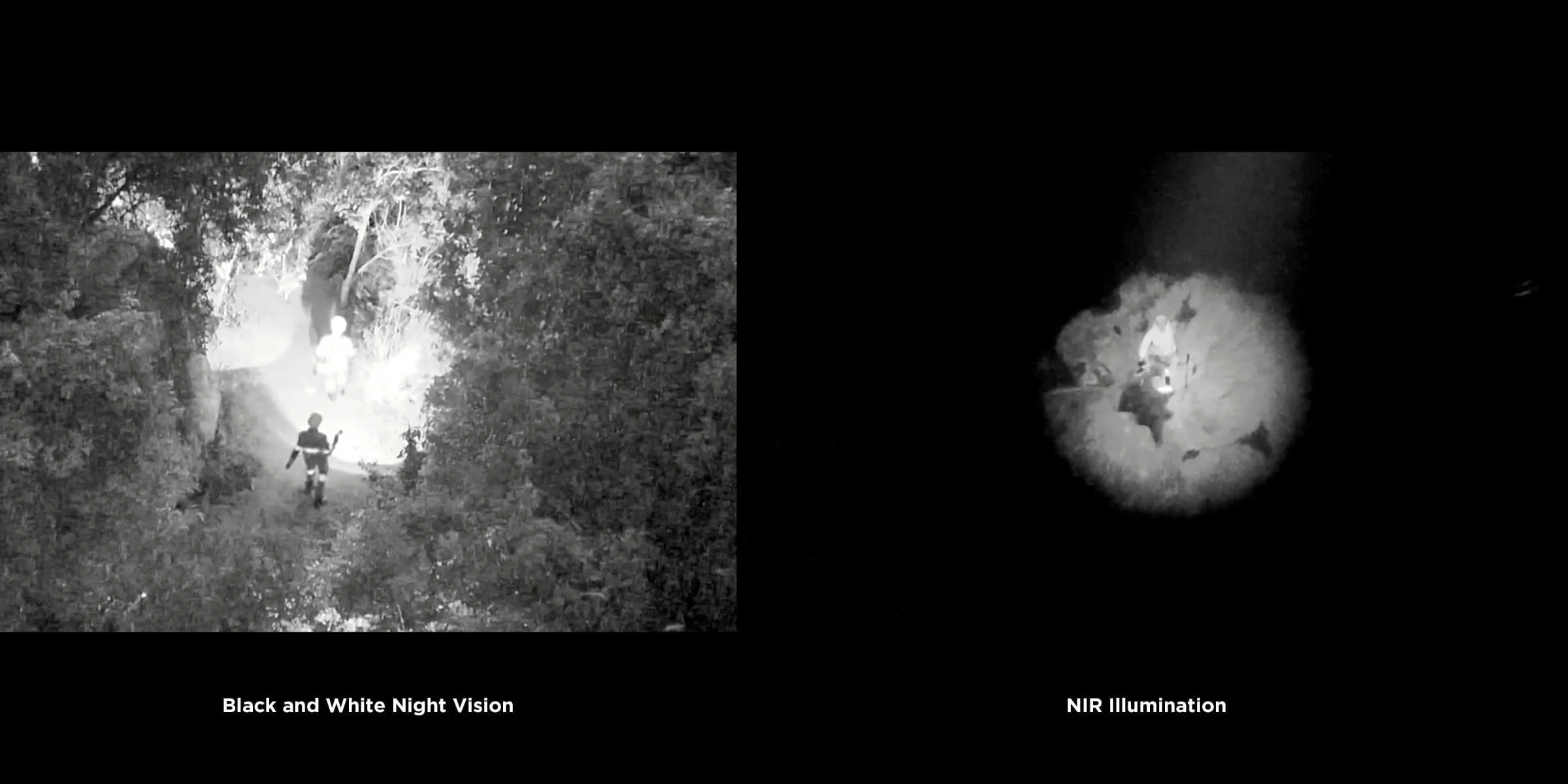

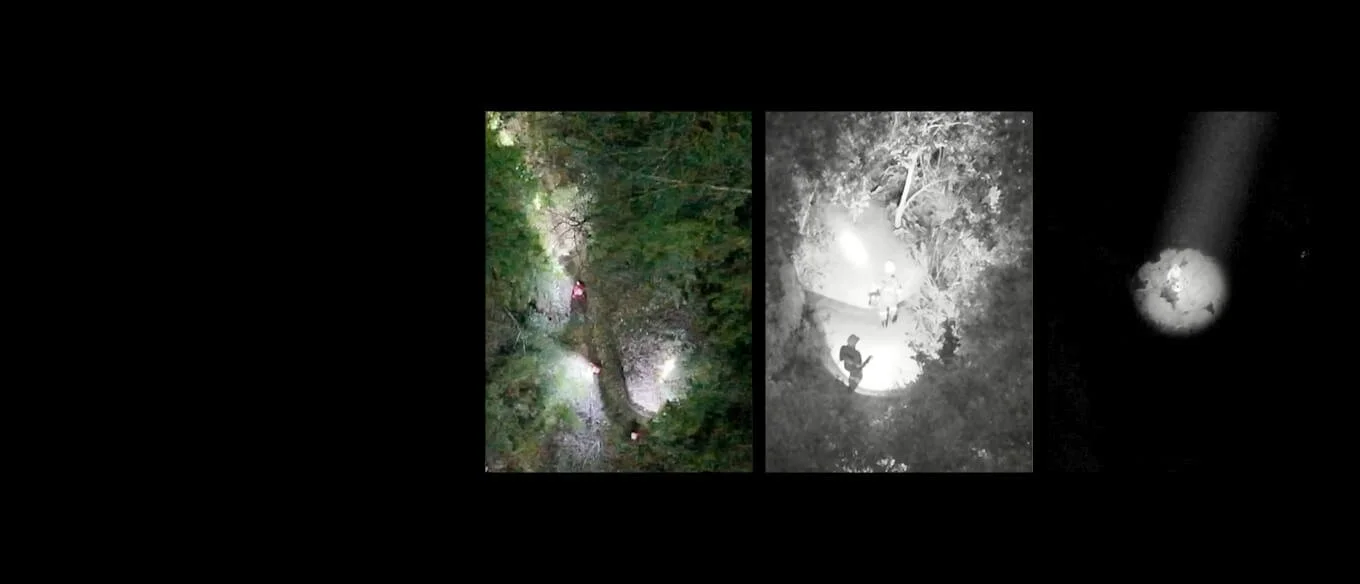

Supports Black and White Night Vision
and NIR Illumination
In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. * It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for covert night surveillance and search-and-rescue operations.
More Powerful Infrared Performance

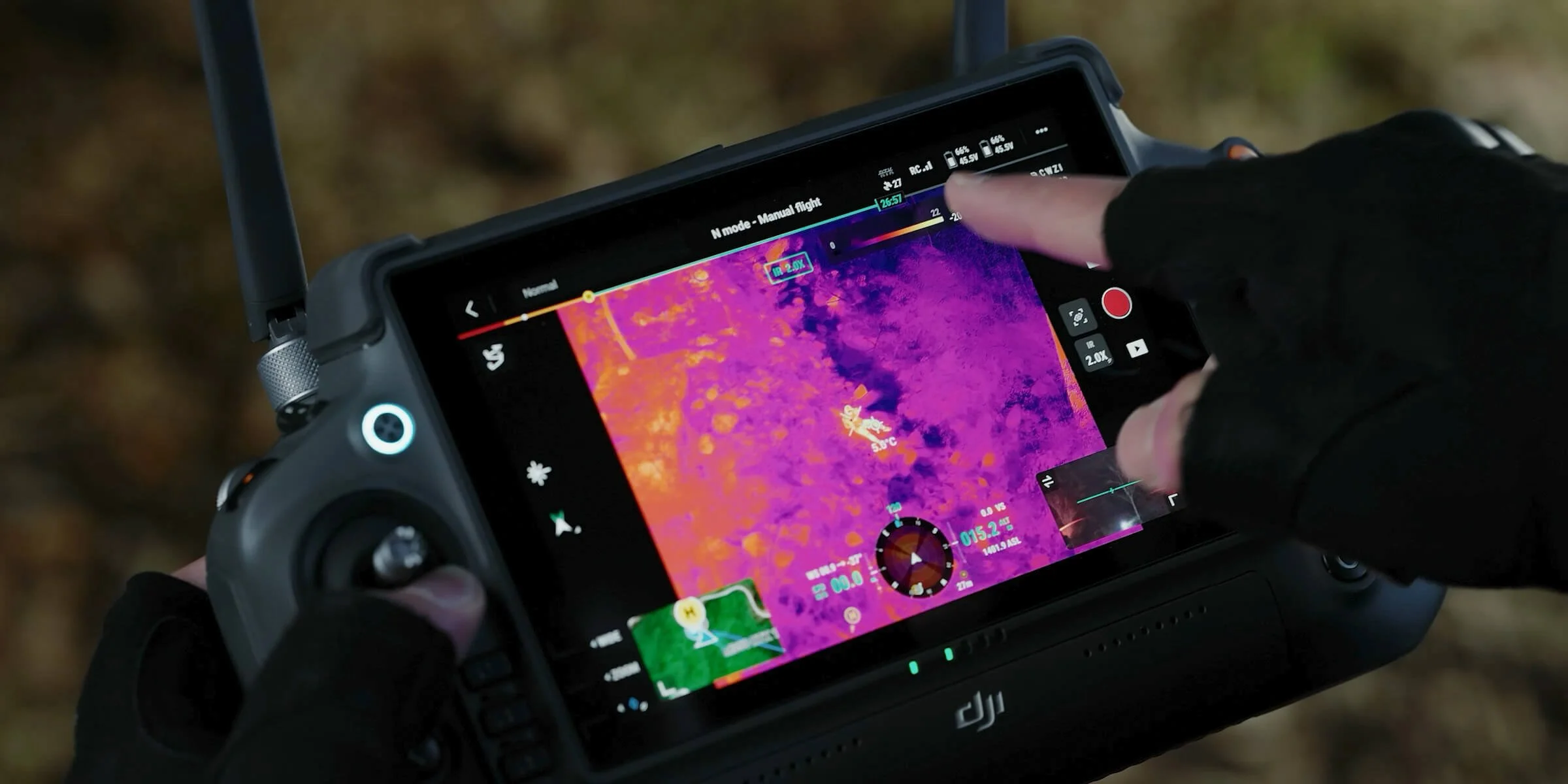

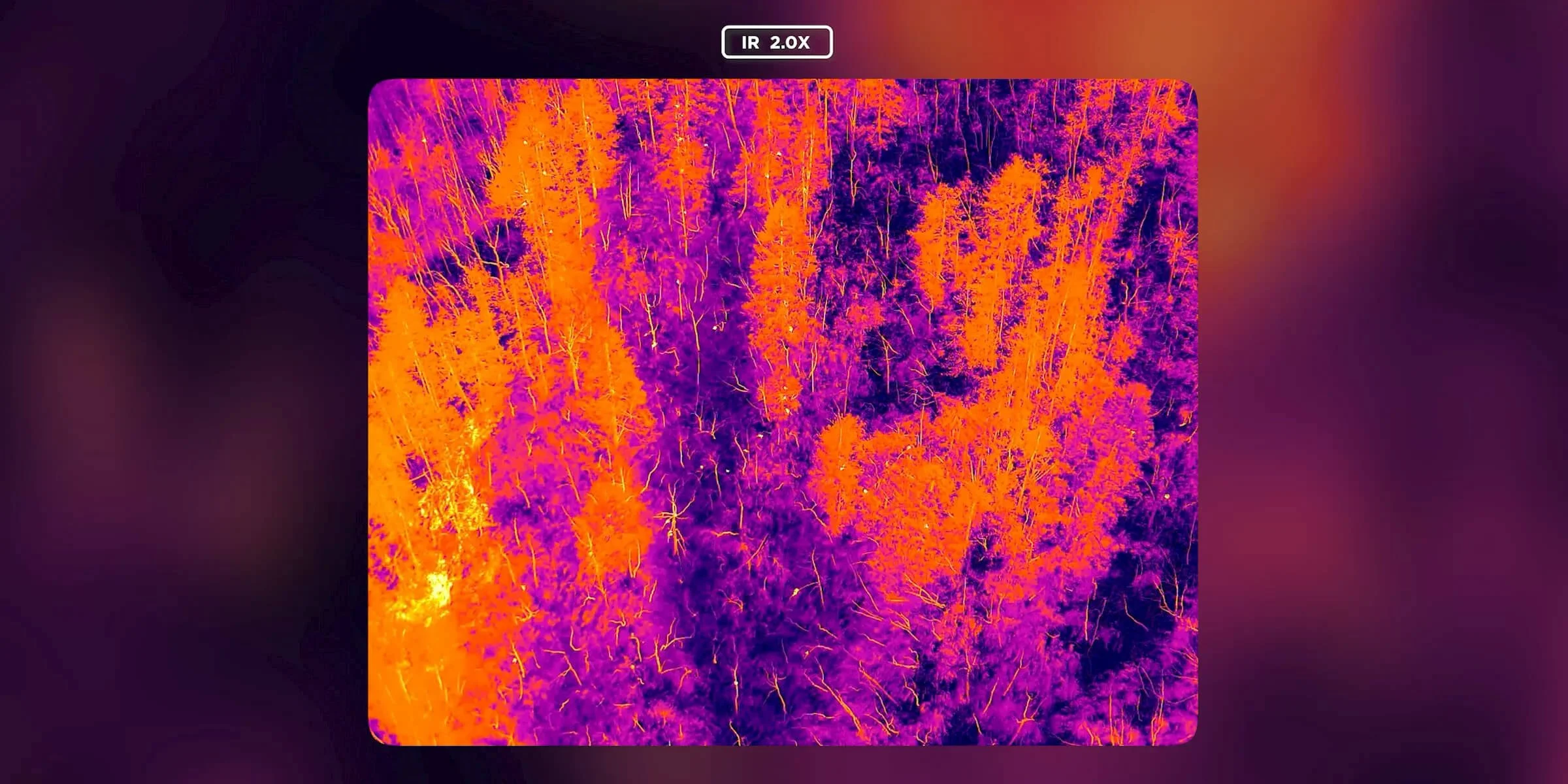

1280×1024 Infrared Resolution
The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, *with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, *ensuring the infrared images remain clear.

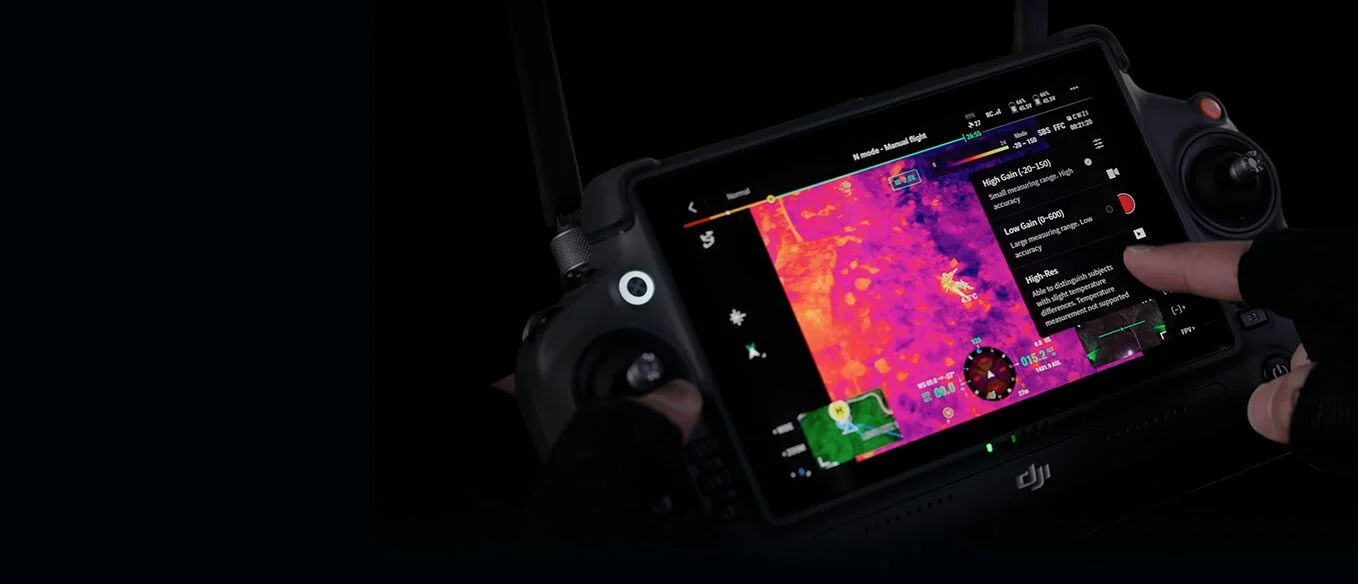

High-Res Mode
for Precise Observation
Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, *which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.
Smarter Multi-Scenario Operations
Smart Capture for Improved Imaging
In Smart Capture mode, the Zenmuse H30 Series zoom and wide-angle cameras automatically assess the brightness of ambient light and the dynamic range, and apply intelligent image algorithms. This ensures the output of photos with natural transitions between light and dark and rich details, even in environments with high dynamics, strong light, or low light.
Electronic Dehazing
In conditions such as smog or high atmospheric humidity, the Zenmuse H30 Series zoom camera employs a new Electronic Dehazing function* to enhance image clarity. It offers low and high dehazing levels to suit different operational environments and requirements.
Superior Environmental Adaptability
IP54 Ingress Protection
With an IP54 dust and water resistance rating, * the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions.

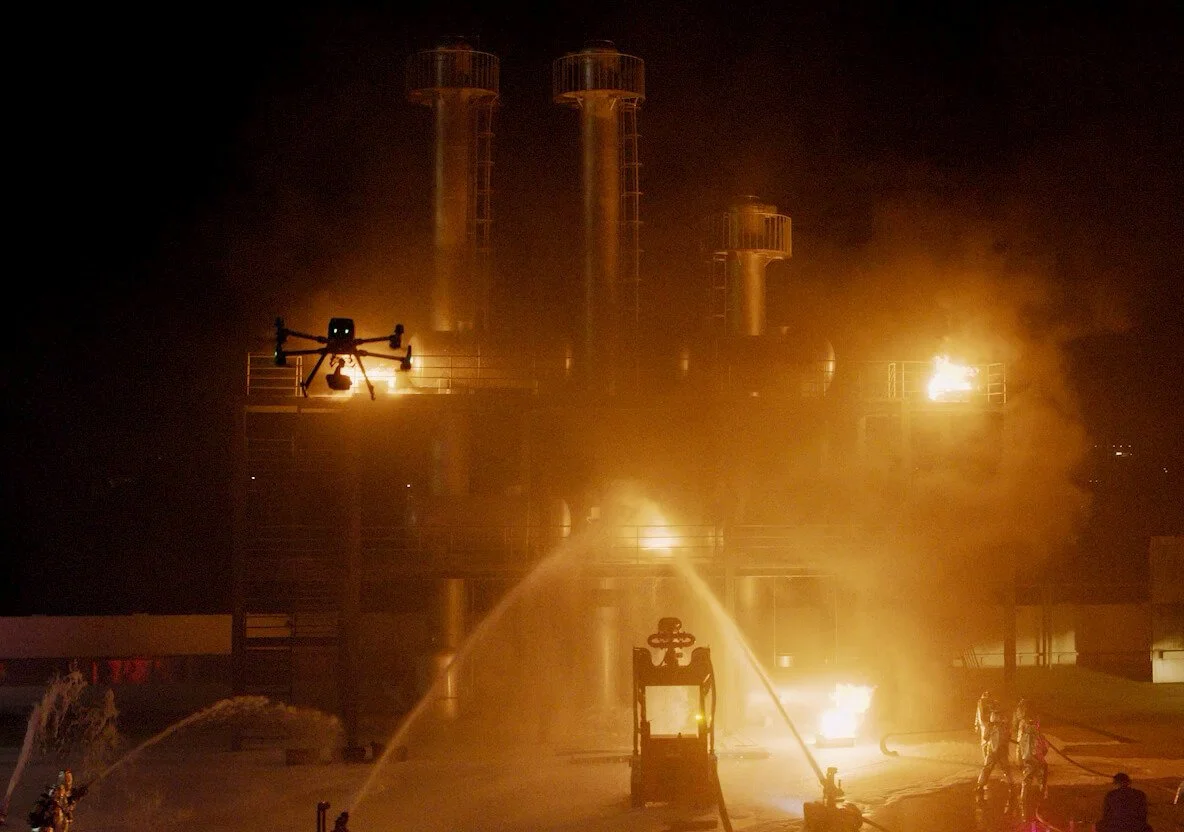

Public Safety
Oil and Natural Gas
-20° to 50° C (-4° to 122° F) Operating Temperature
The Zenmuse H30 Series is built to work in temperatures ranging from -20° to 50° C (-4° to 122° F), meeting all-weather operational needs.
Application Scenarios
With DJI Enterprise flight platforms, the Zenmuse H30 Series is suited for applications in a range of industries, such as public safety, electricity, oil and gas, water conservation, and forestry.
