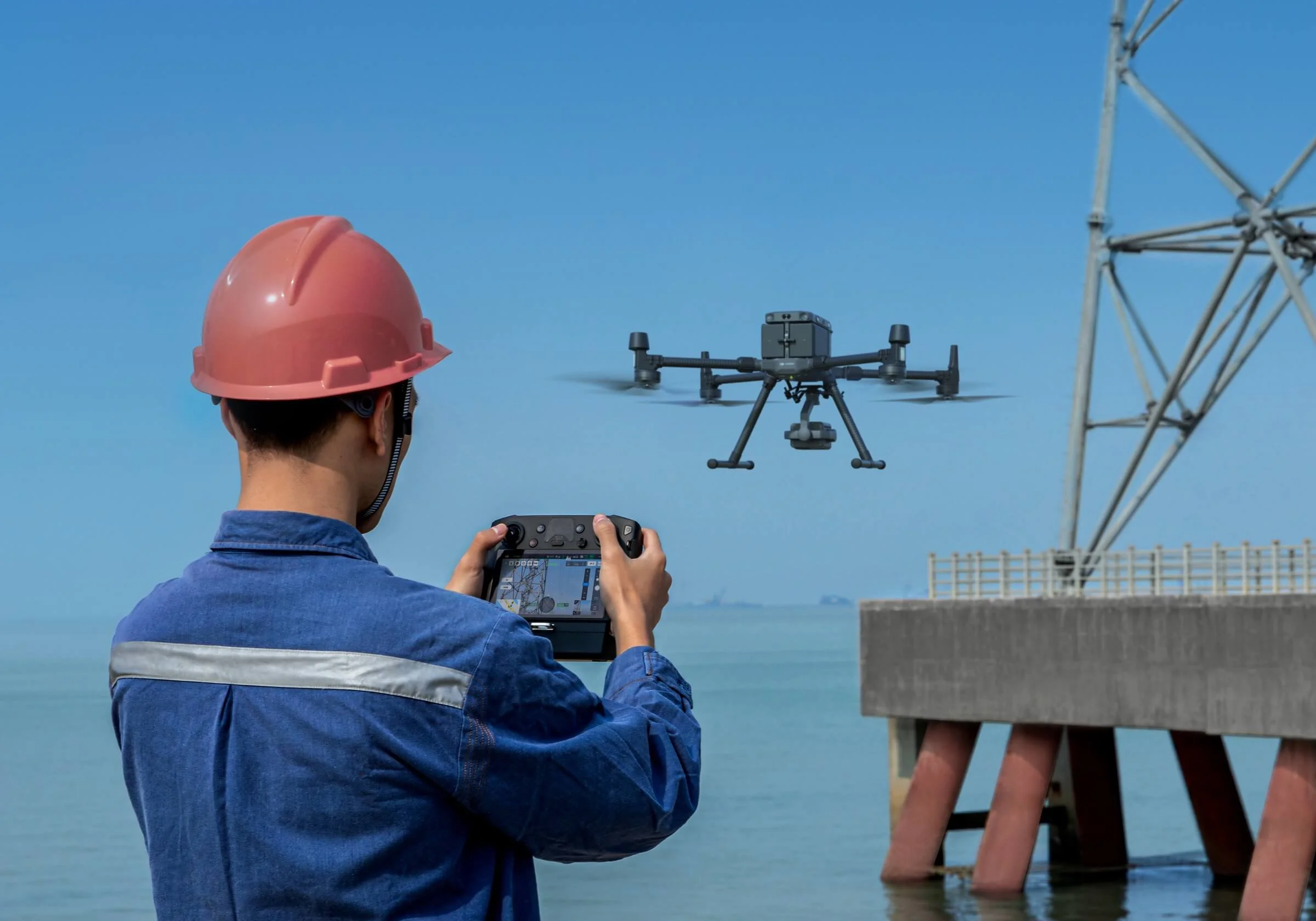

DJI MATRICE 300 RTK
The Matrice 300 RTK is DJI’s latest commercial drone platform that takes inspiration from modern aviation systems. Offering up to 55 minutes of flight time, advanced AI capabilities, 6 Directional Sensing & Positioning and more, the M300 RTK sets a whole new standard by combining intelligence with high-performance and unrivaled reliability.
Super Performance
Improved Transmission System
The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel3 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz4 enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.
15km
Transmission Range
2.4 /5.8GHz
Real-time Auto-switching
1080p
Triple-channel Video

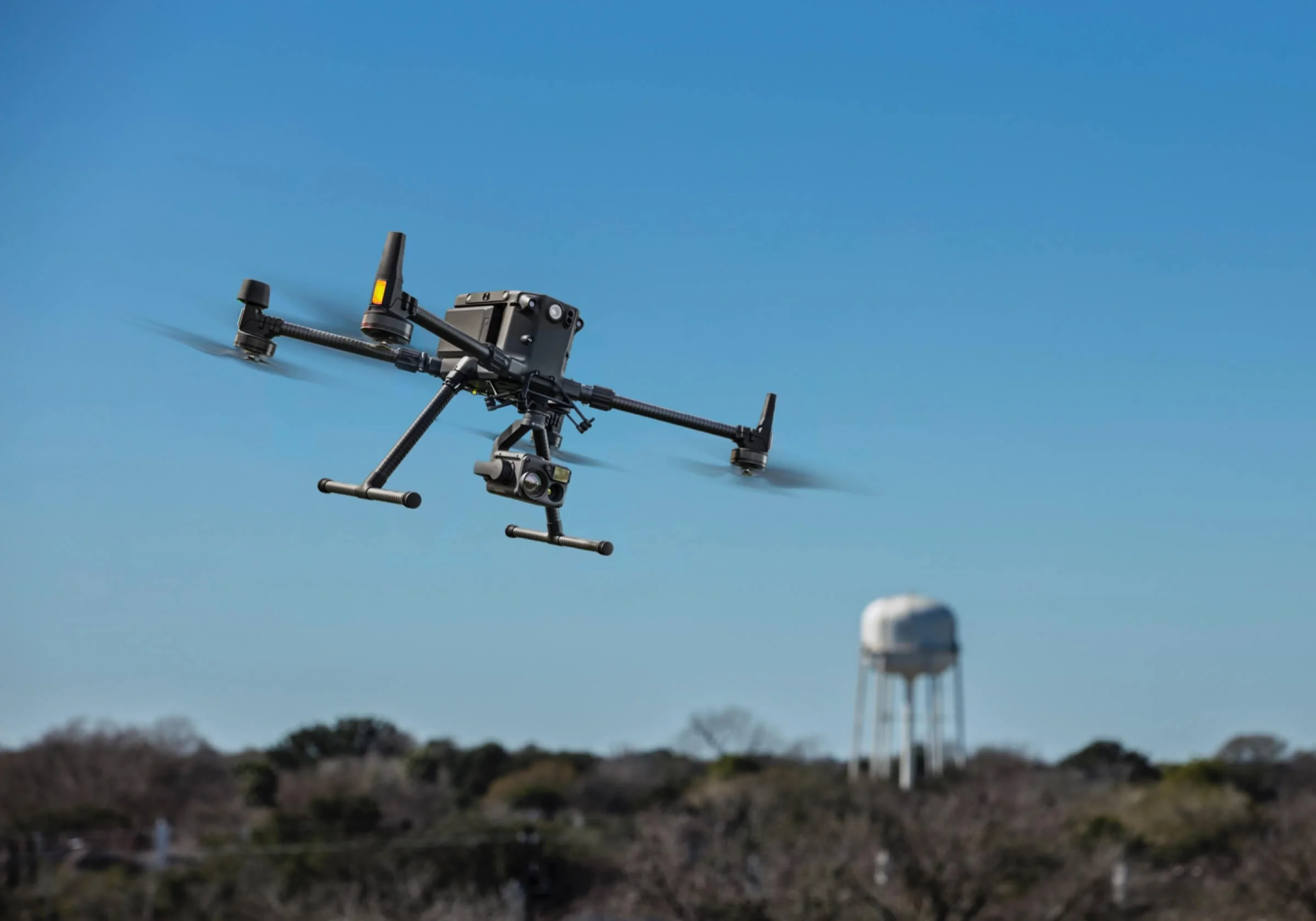

Enhanced Flight Performance
The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.
55 min
Max Flight Time
7 m/s
Max Descend Speed
7000 m
Service Ceiling
15 m/s
Wind Resistance
23 m/s
Max Speed
Multiple Payload Configurations
Configure your M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.

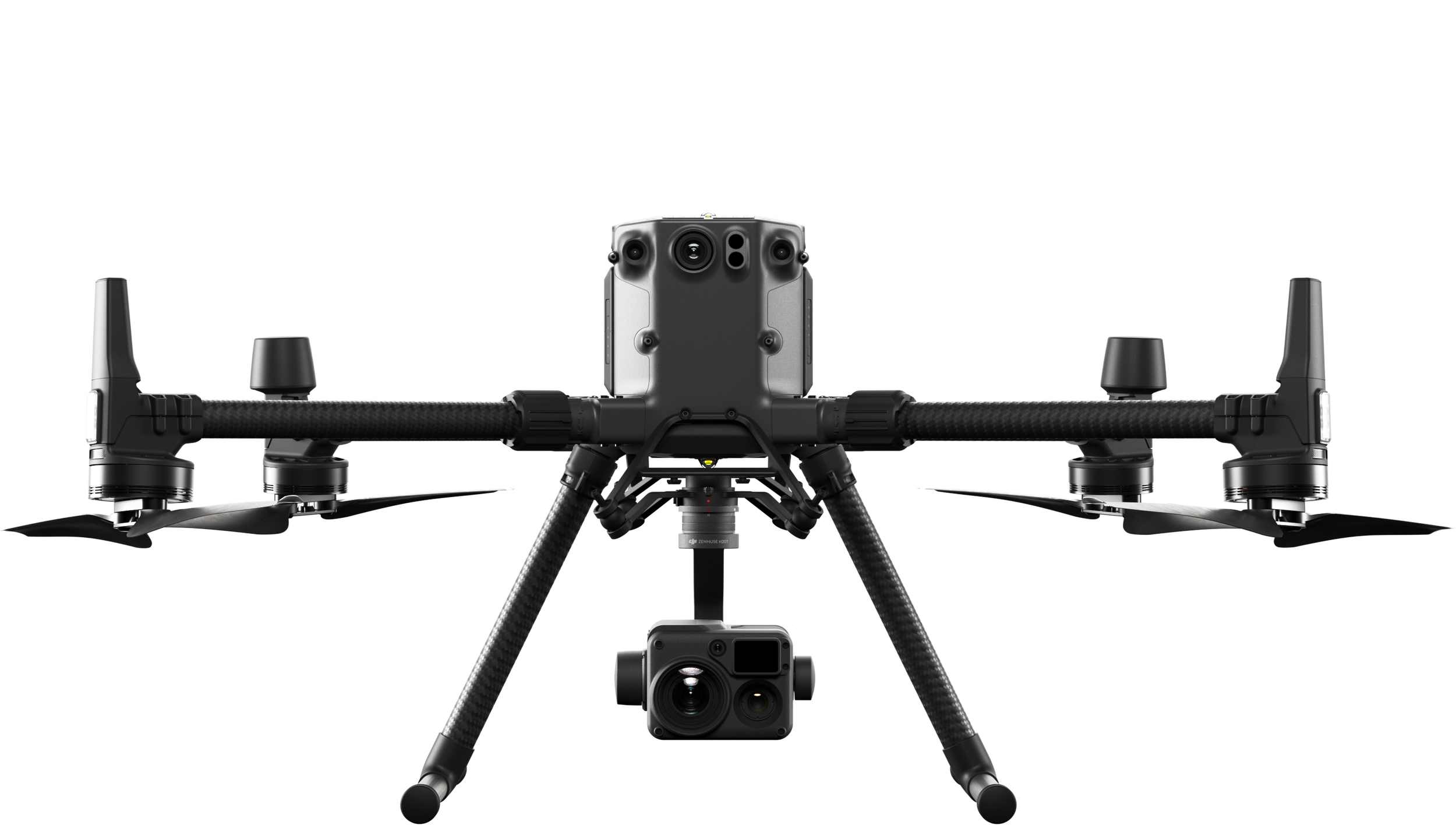

Single Downward Gimbal
Single Upward Gimbal x Single Downward Gimbal

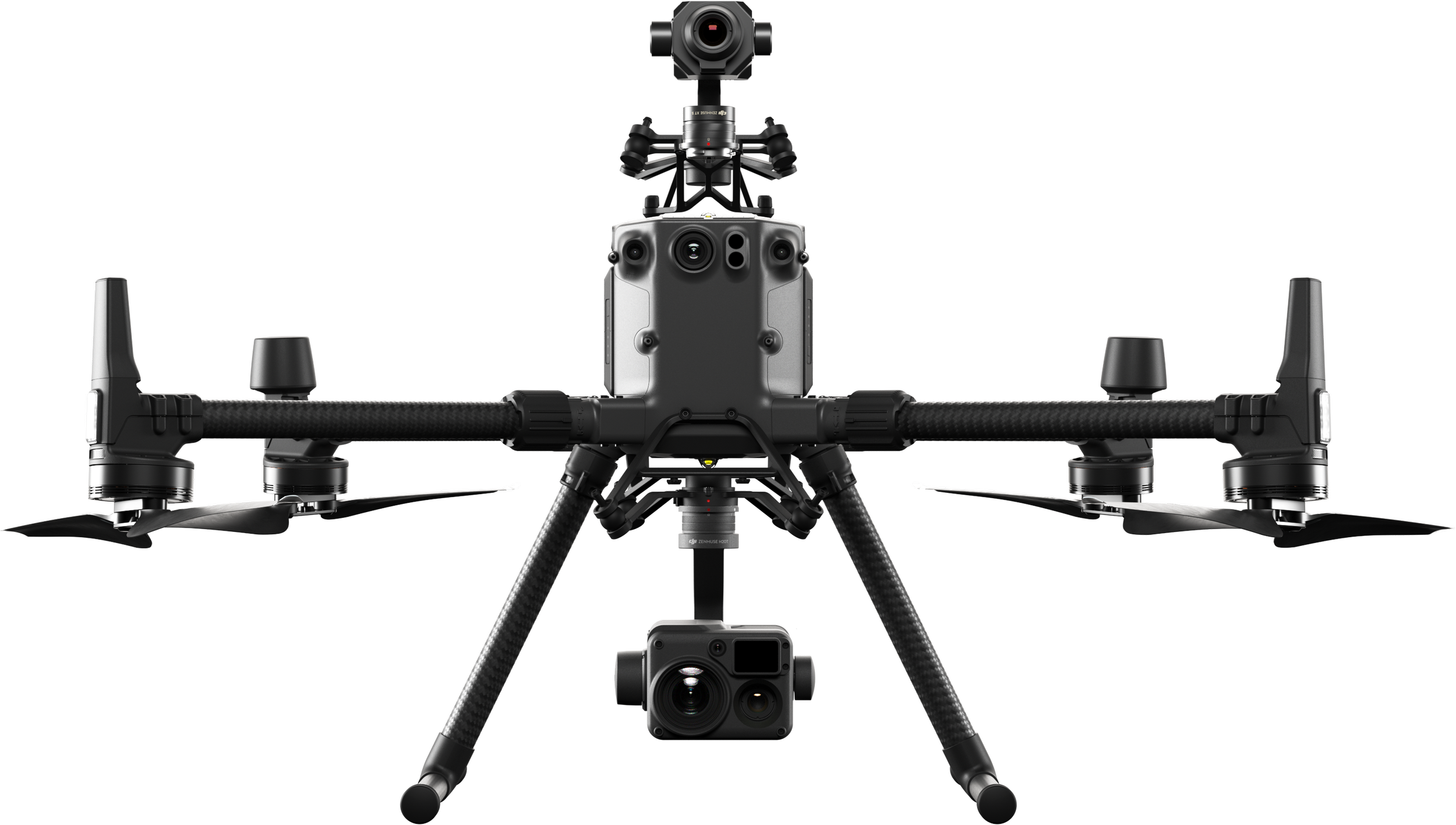

Single Upward Gimbal x Dual Downward Gimbals
Smart Inspection
Live Mission Recording
Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.

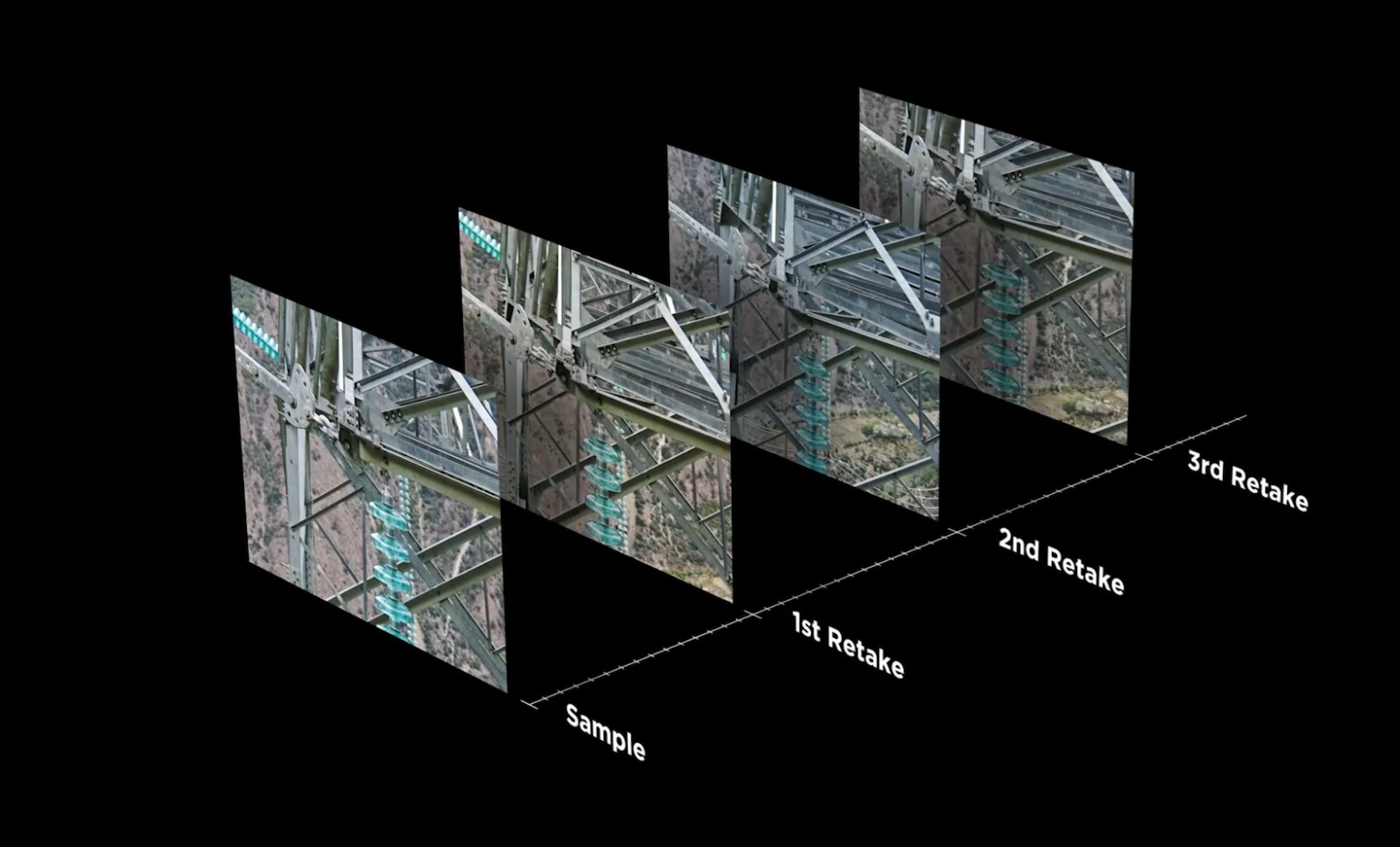

AI Spot-Check
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.
Waypoints 2.0
Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3rd party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.
PinPoint
Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub.

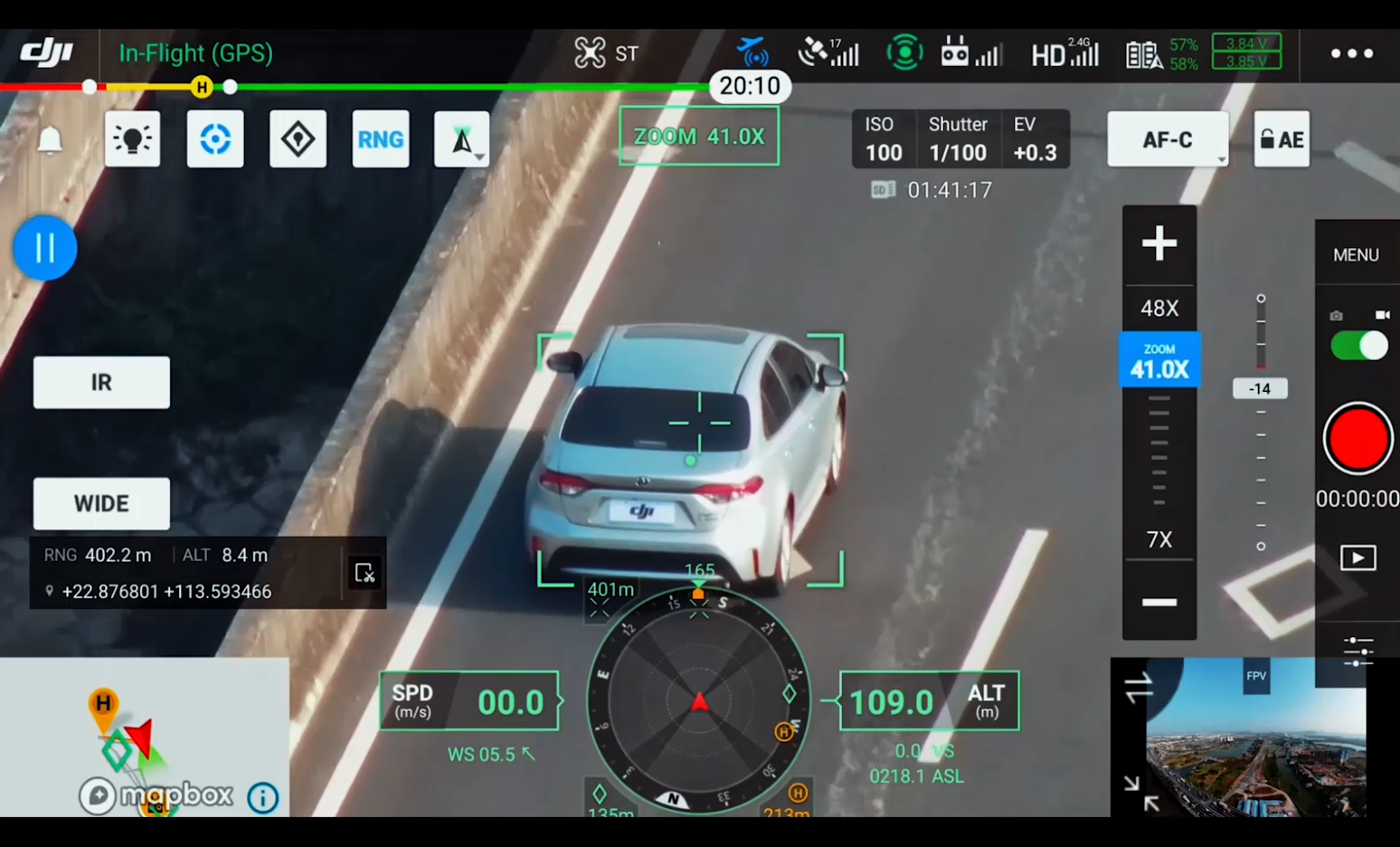

Smart Track
Identify and follow moving subjects like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub.
Aviation-Grade Situational Awareness
The M300 RTK adopts a new Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.
Flight Information
Flight information such as aircraft attitude, altitude, and velocity, as well as wind speed and wind direction, are all intuitively presented.

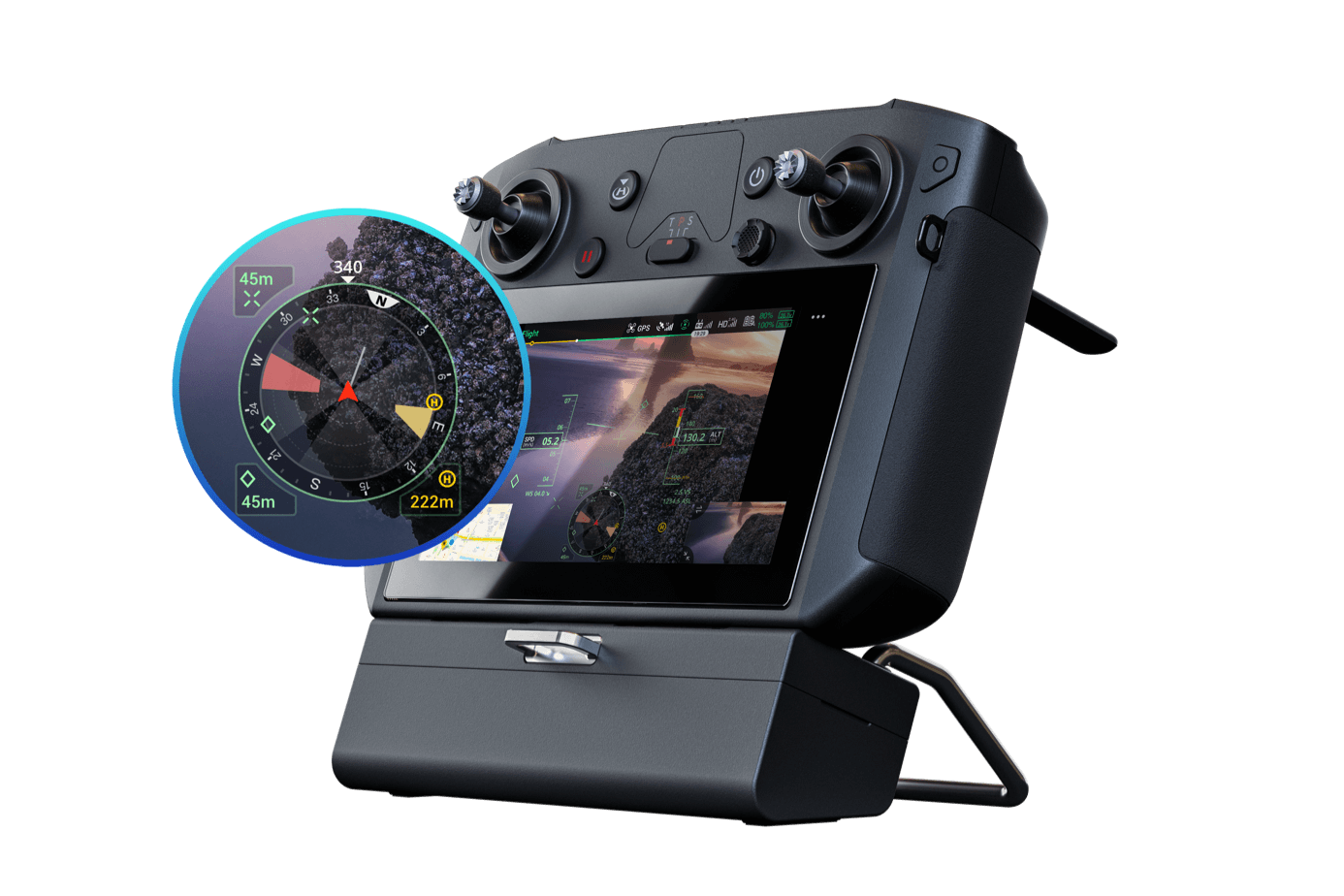

Navigation Display
Pilots can also view the live status of the aircraft’s heading, trajectory, PinPoint information, and home point projection, in a more efficient way. Visualize all nearby obstacles at once with the new obstacle map, so you can be fully informed.

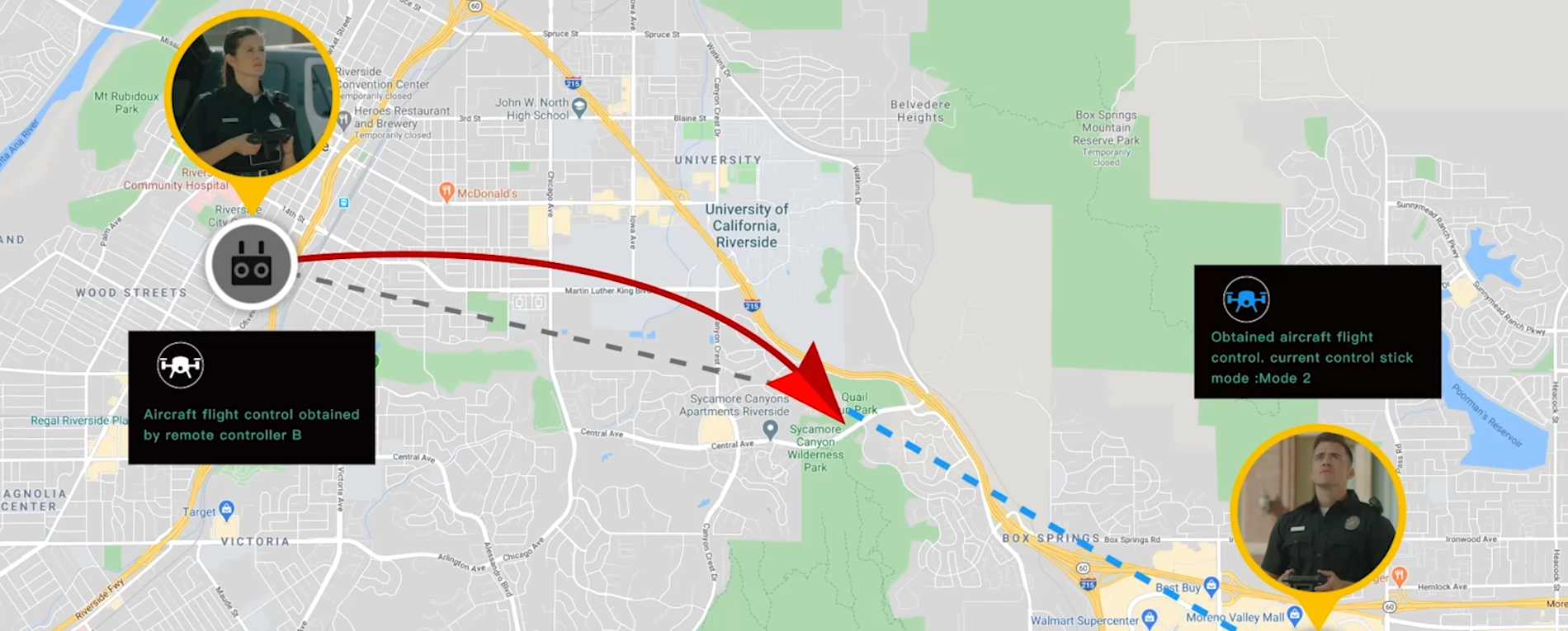

Advanced Dual Control
Either operator can now obtain control of the aircraft or payload with a single tap. This creates new possibilities for mission strategies as well as higher flexibility during operations.
Safety and Reliability
A Powerful Vision System You Can Rely On

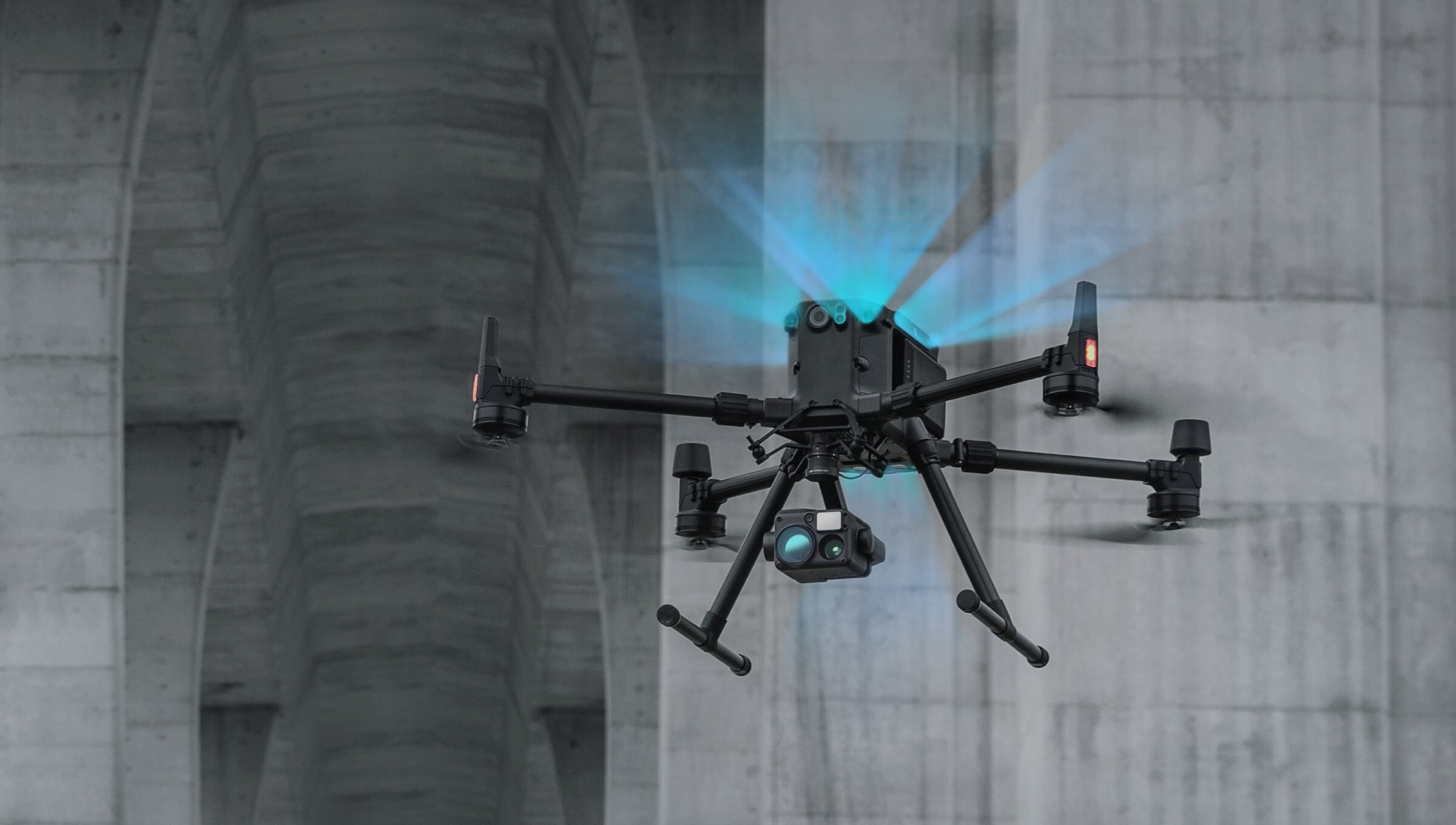

To enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40 m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.

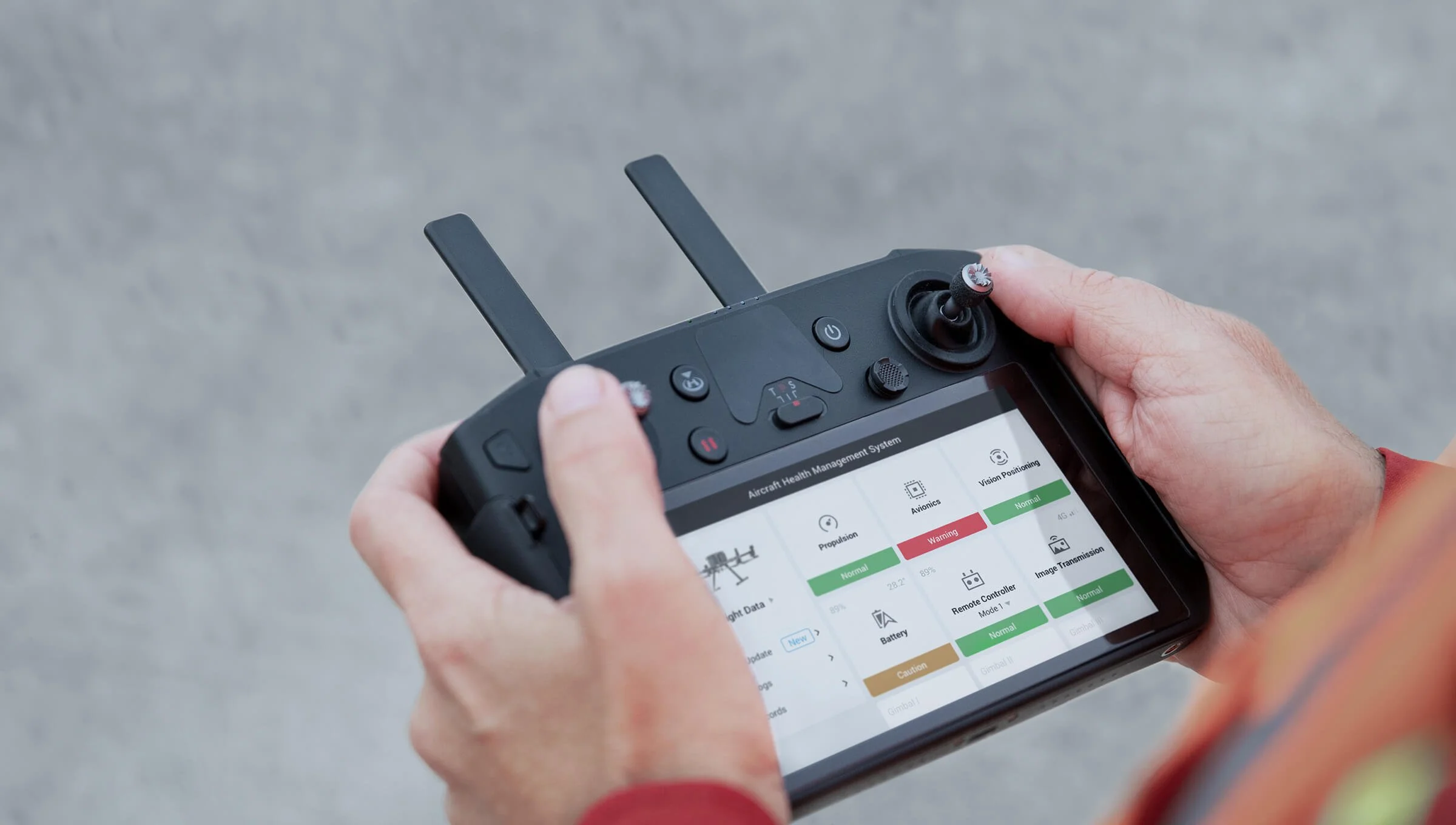

The new integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance.
Professional Maintenance for Your Drone Fleet
Redundancy Systems for Safer Flights
The M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.
Accessories

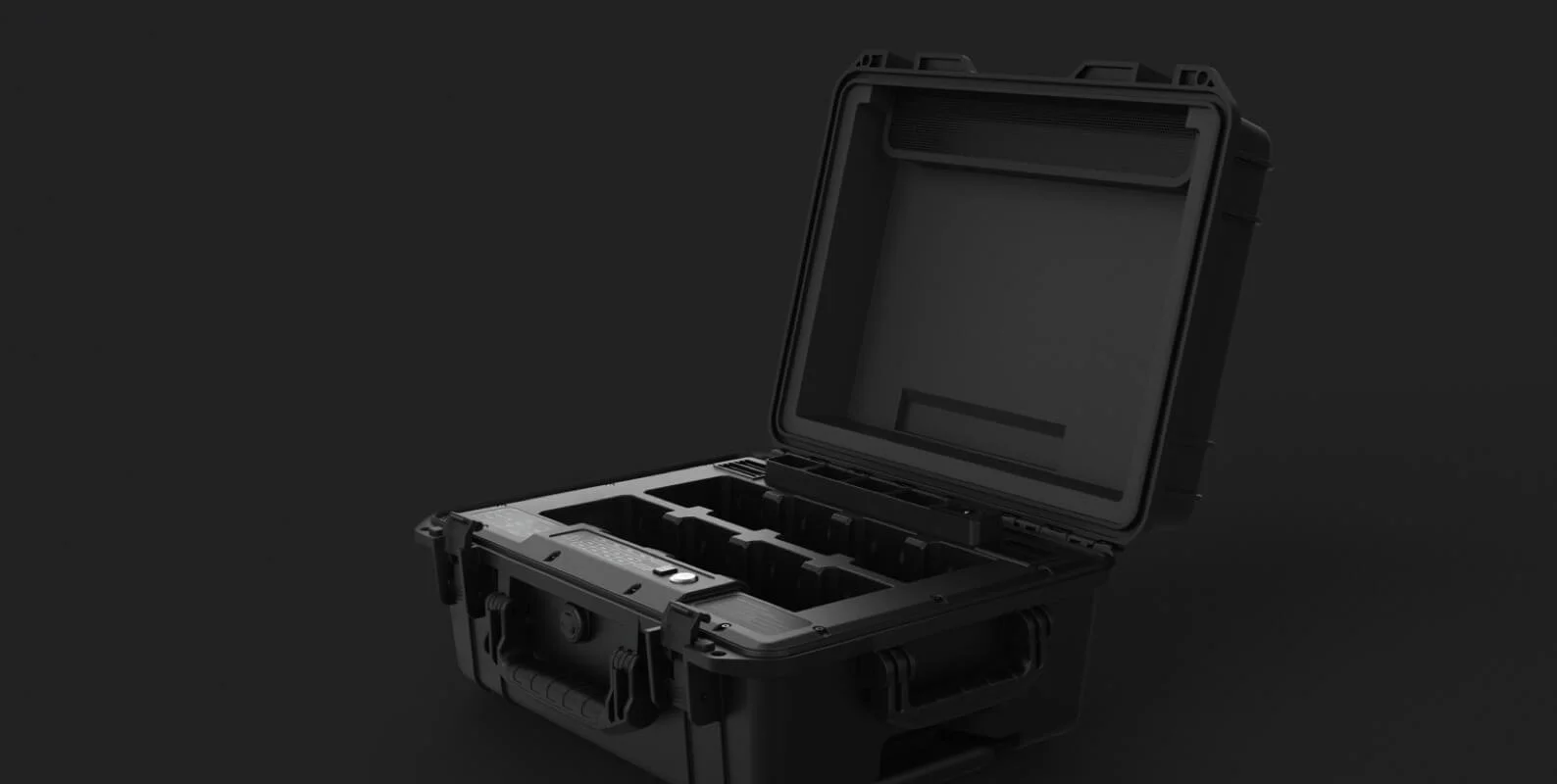

Battery Station

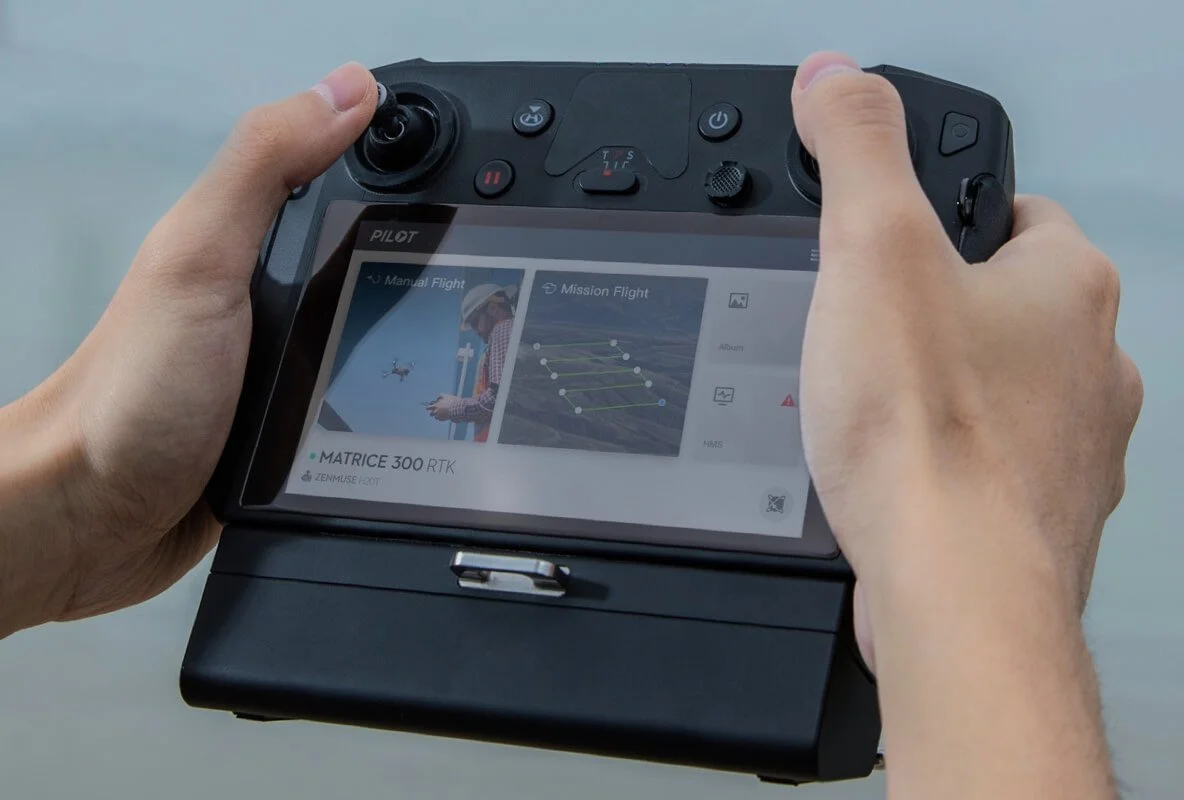

DJI Smart Controller
Enterprise
D-RTK 2 Mobile
Station
TB60 Intelligent
Flight Battery

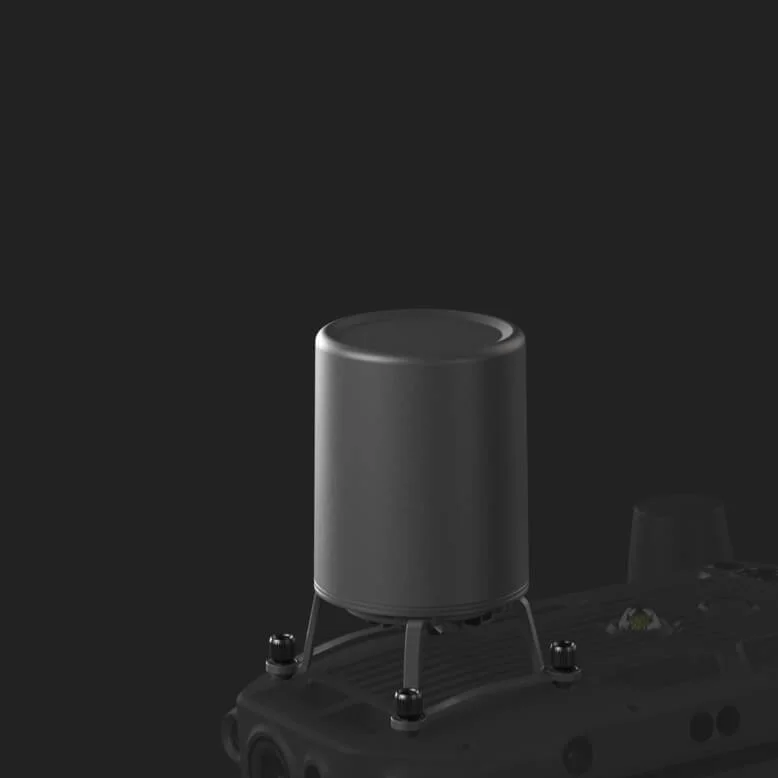

CSM Radar
Compatible Payloads
Zenmuse L1
An integrated Lidar + survey-grade
RGB solution for true-color point clouds

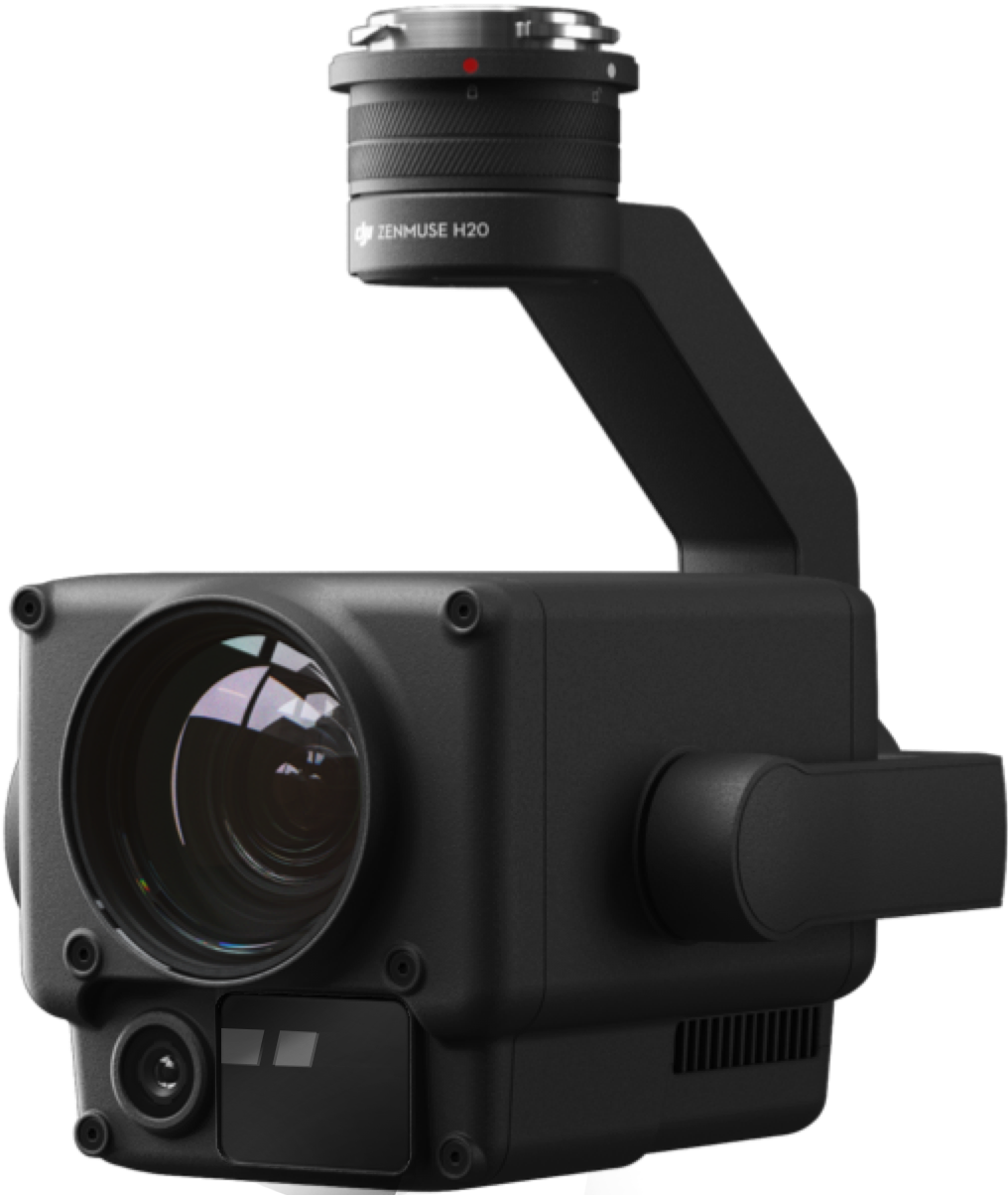

Zenmuse H20
Hybrid sensor solution with LRF,
zoom and wide camera
Zenmuse H20N
The Zenmuse H20N integrates starlight
sensors into its zoom and wide-angle
cameras
Zenmuse P1
A 45MP full-frame sensor with 3 lens options for photogrammetry flight missions
CSM Radar
Zenmuse H20T
Hybrid sensor solution with LRF,
zoom, wide and thermal camera
Third-Party Payloads
For specialized missions and tasks

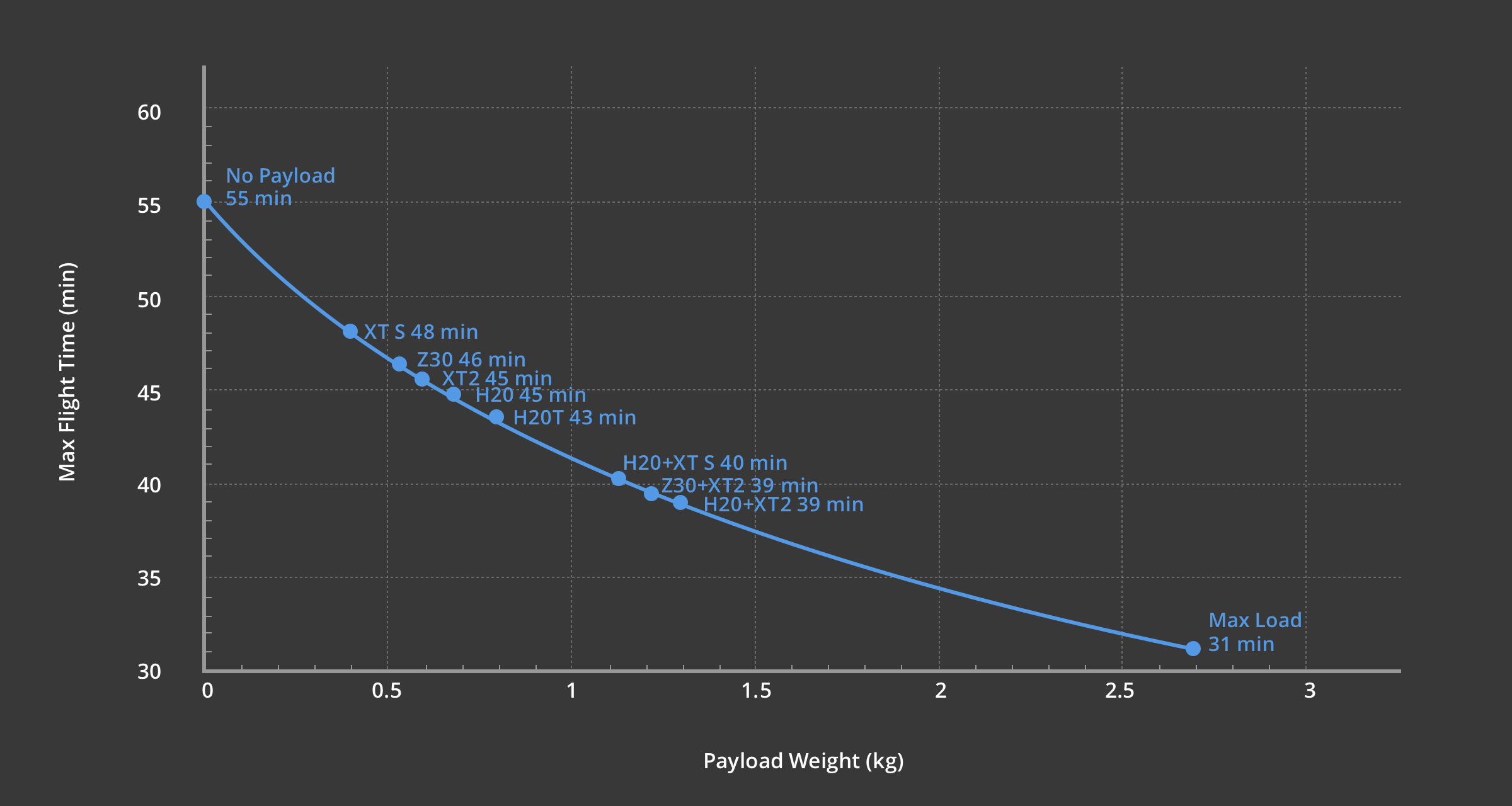

Flight Time
Estimate your M300 RTK’s flight time based on the payload configuration.
Purpose-built Applications

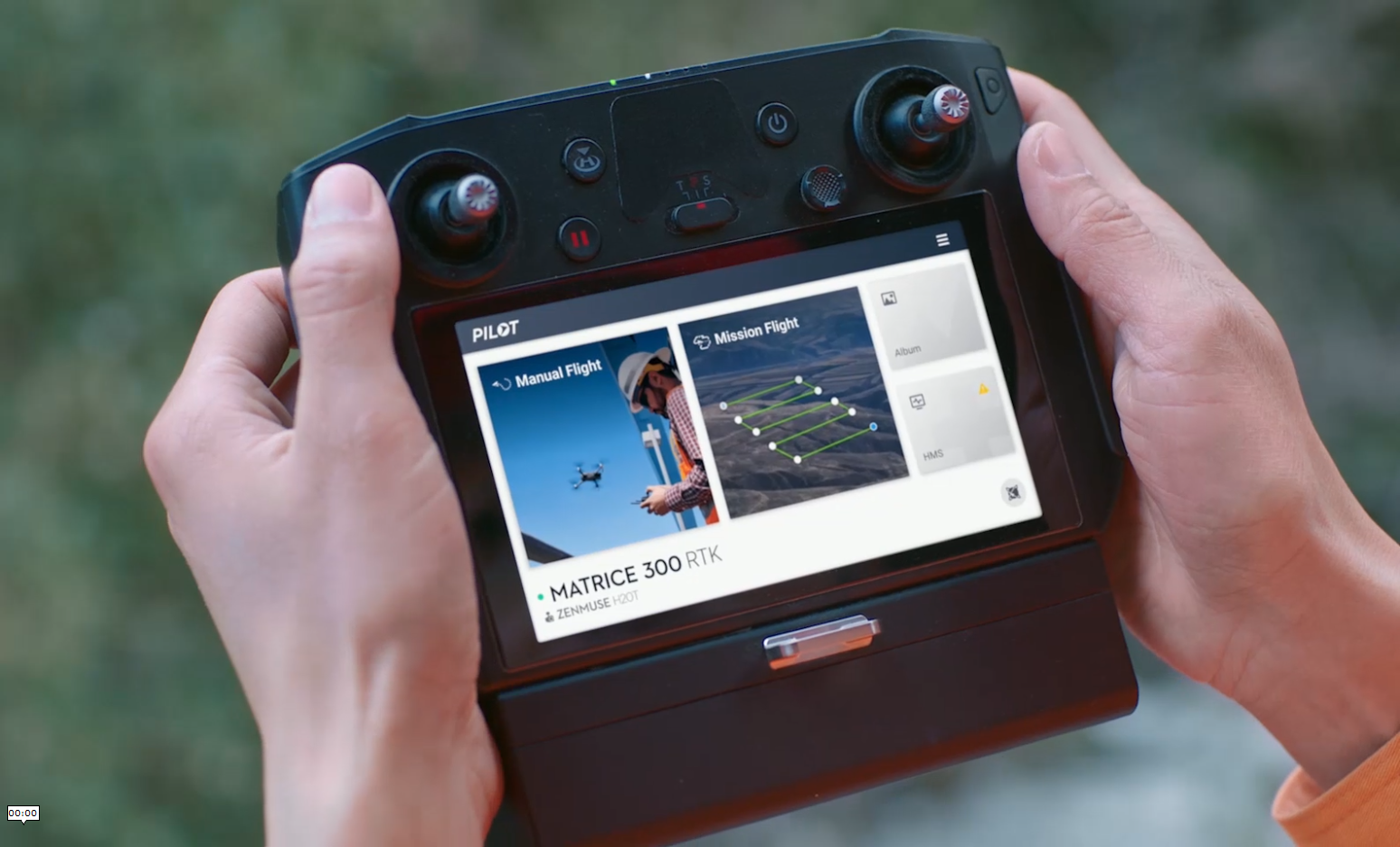

DJI Pilot
DJI Pilot is developed specifically for enterprise users to unleash the power of their DJI drones. With development made specifically for the M300 RTK, DJI Pilot optimizes your flight capability for peak performance.

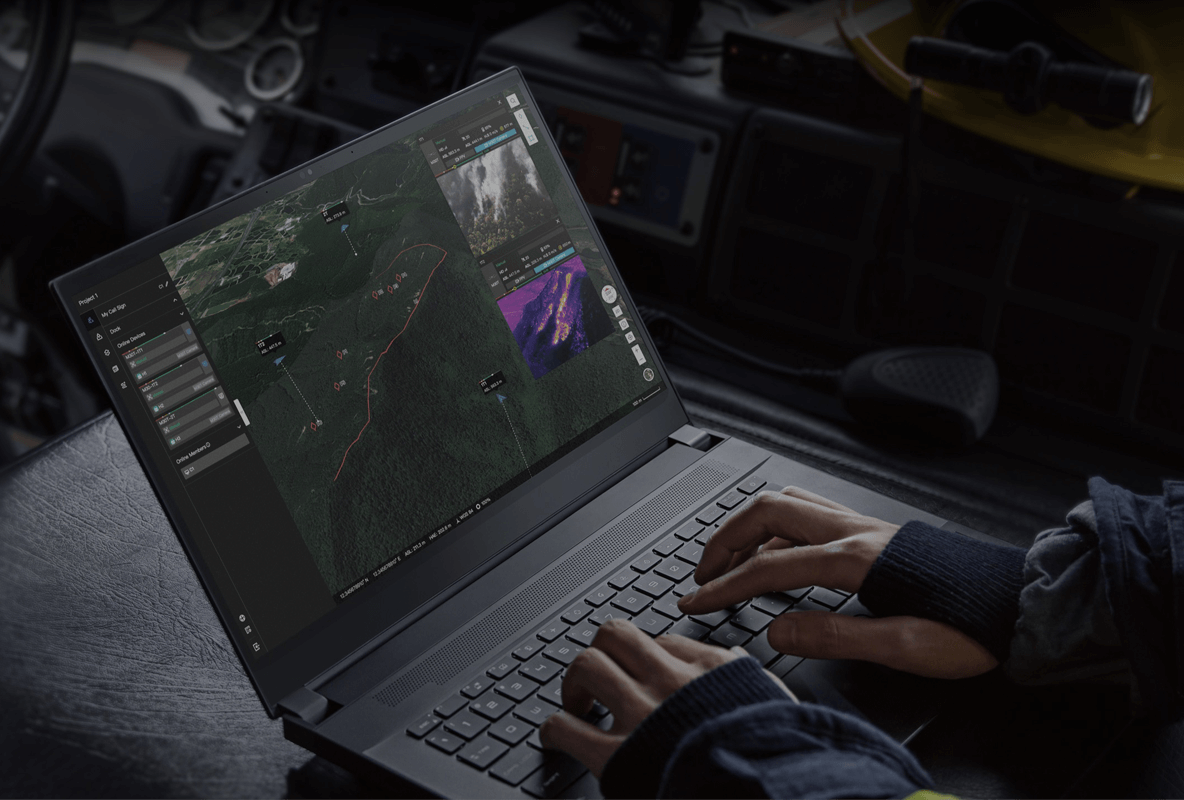

DJI FlightHub 2
DJI FlightHub 2 is a one-stop solution for managing your drone operations, supporting large organizations to effectively scale their aerial operations. Compatible with the M300 RTK, you can integrate FlightHub 2 directly into your existing fleet of DJI drones and leverage its aerial intel across your organization.
Footnote
1.Unobstructed, free of interference, when FCC compliant. Maximum flight range specification is a proxy for radio link strength and resilience. Always fly your drone within visual line of sight unless otherwise permitted.
2. Actual flight time may vary because of the environment and payload configurations.
3. Each RC supports two streams. Triple-stream channeling is only supported with dual RC.
4. Due to local policies, some countries do not support 5.8 GHz transmission.
5. Achieved in Forward Flight using S Mode.
6. The service ceiling of 7000 m is achievable with high altitude propellers.
7. This feature is only supported when the aircraft is paired with the Zenmuse H20 Series payloads.
8. This feature is only supported when the aircraft is paired with the Zenmuse H20 Series payloads.
9. Support for location sharing via DJI FlightHub is coming soon.
10. D-RTK 2 Mobile Station for Matrice 200 Series V2 and Phantom 4 RTK can be upgraded to support Matrice 300 RTK.
11. The CSM Radar will be available soon.
