DJI MATRICE 30 SERIEC

A New Generation of Commercial Drones

Two Models, Countless Applications

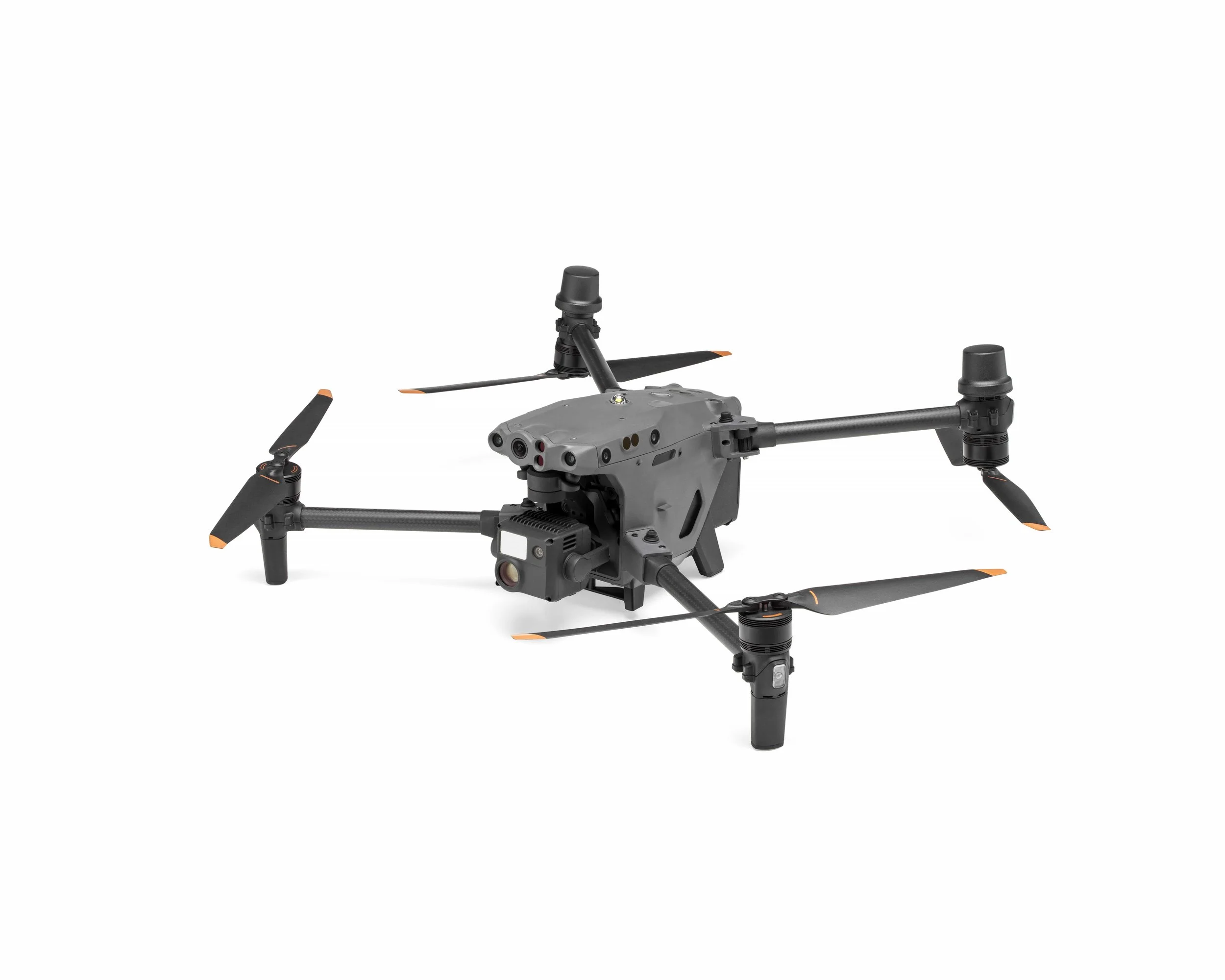

DJI MATRICE 30

DJI MATRICE 30T

Premium Camera Performance

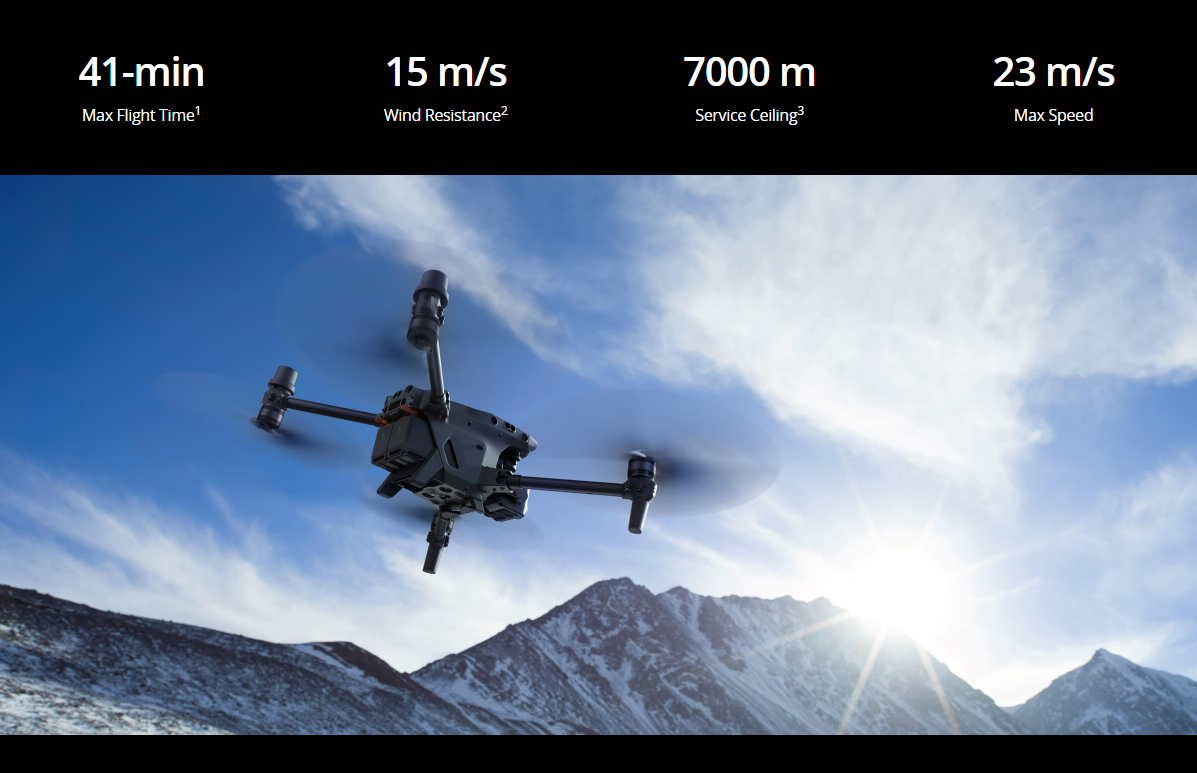

Powerful Flight Performance

A balance of power and portability delivers higher operational efficiency

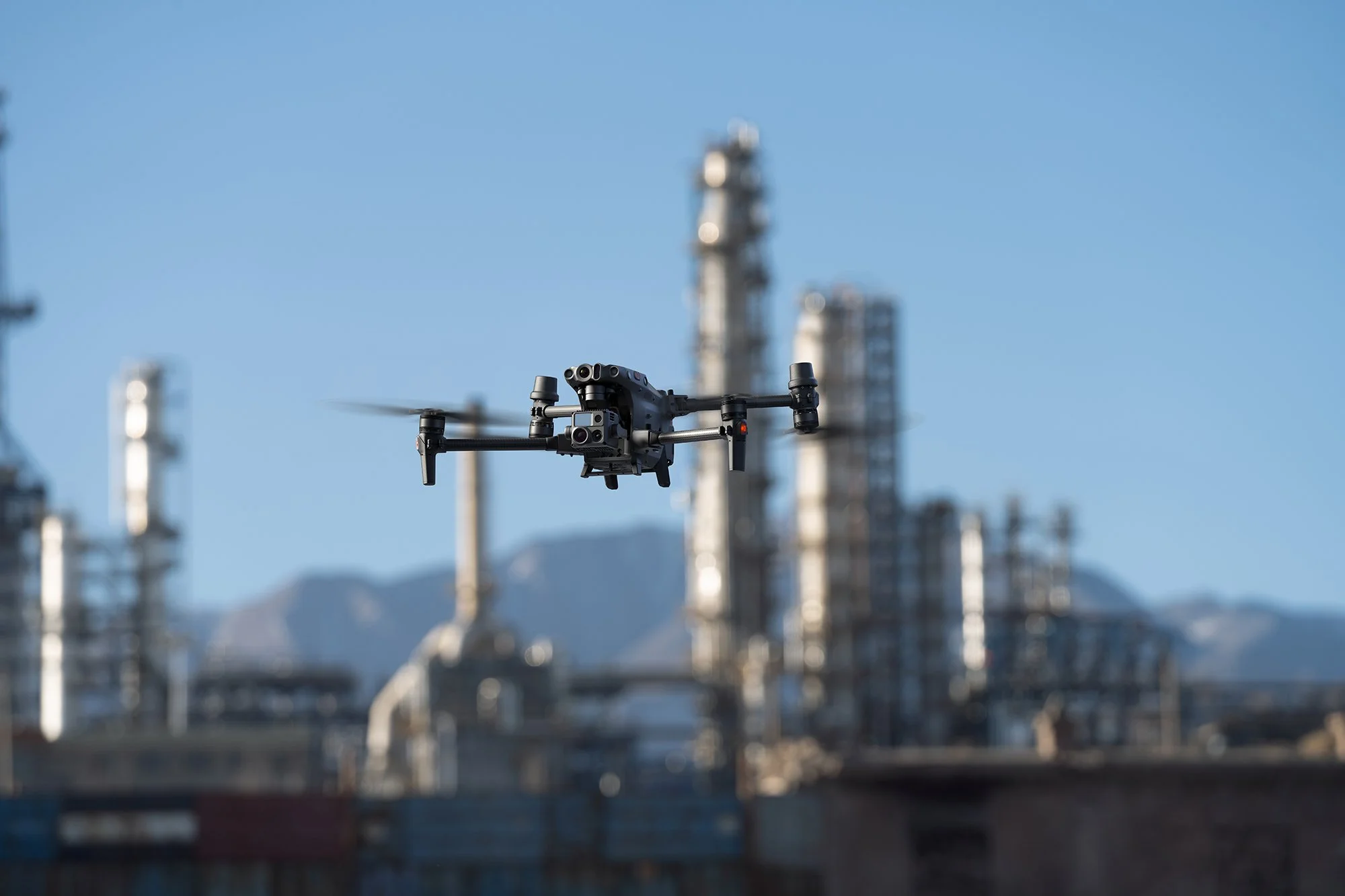

Environmental Adaptability

With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C~50° C.

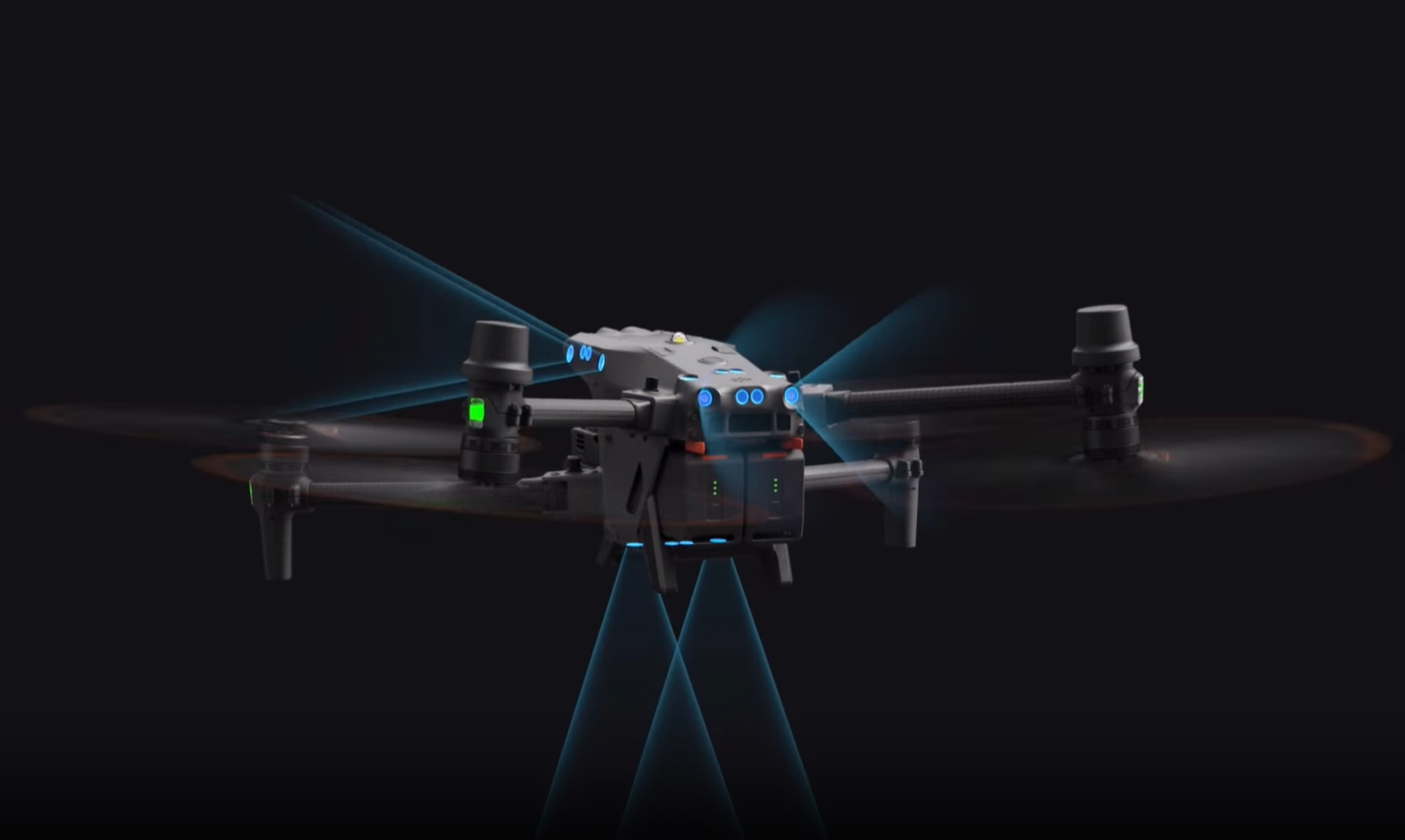

Safe and Reliable

Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.

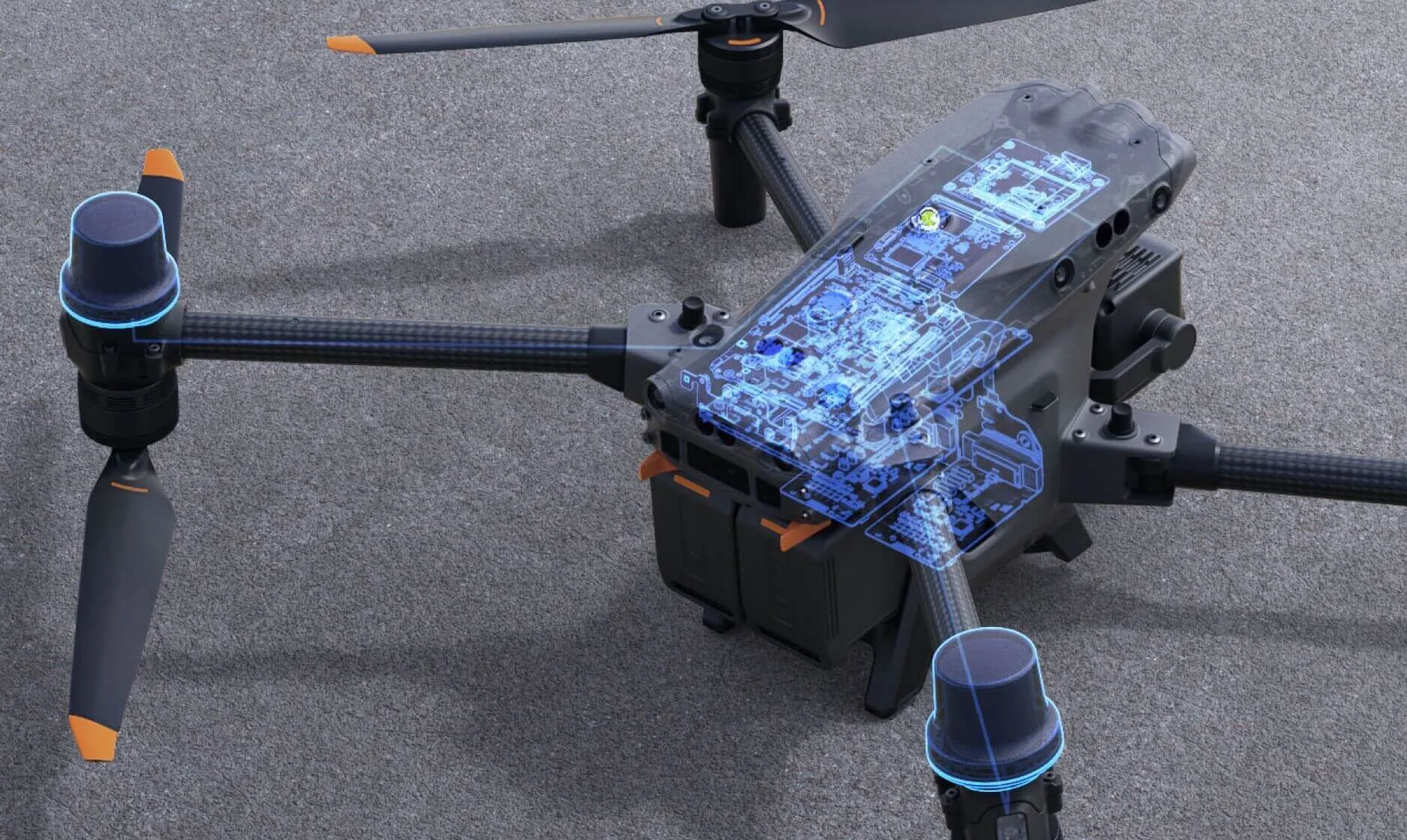

Redundancies and Backup Systems

Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

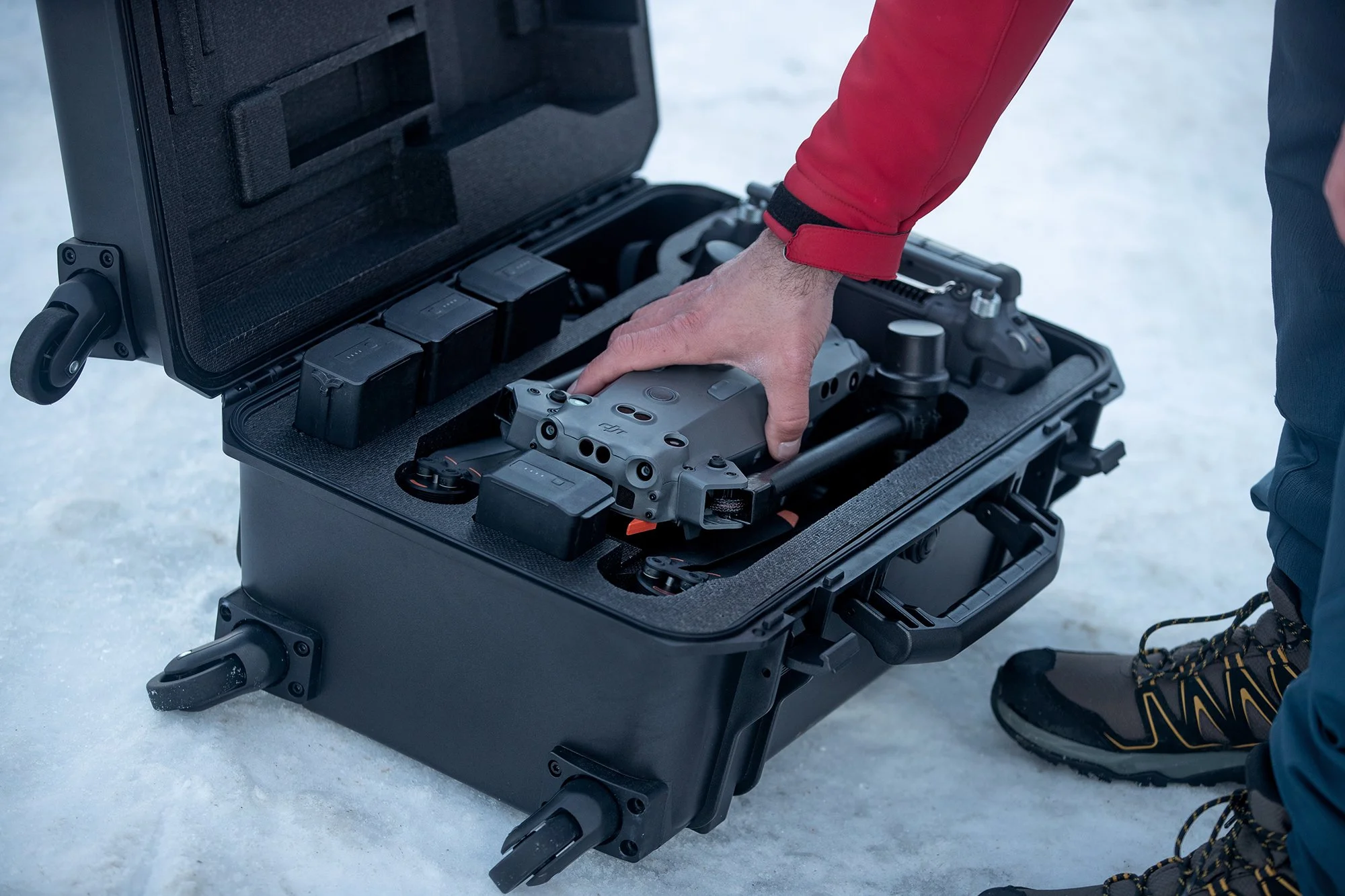

Lightweight and Portable

Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.

Enhanced Transmission

Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.

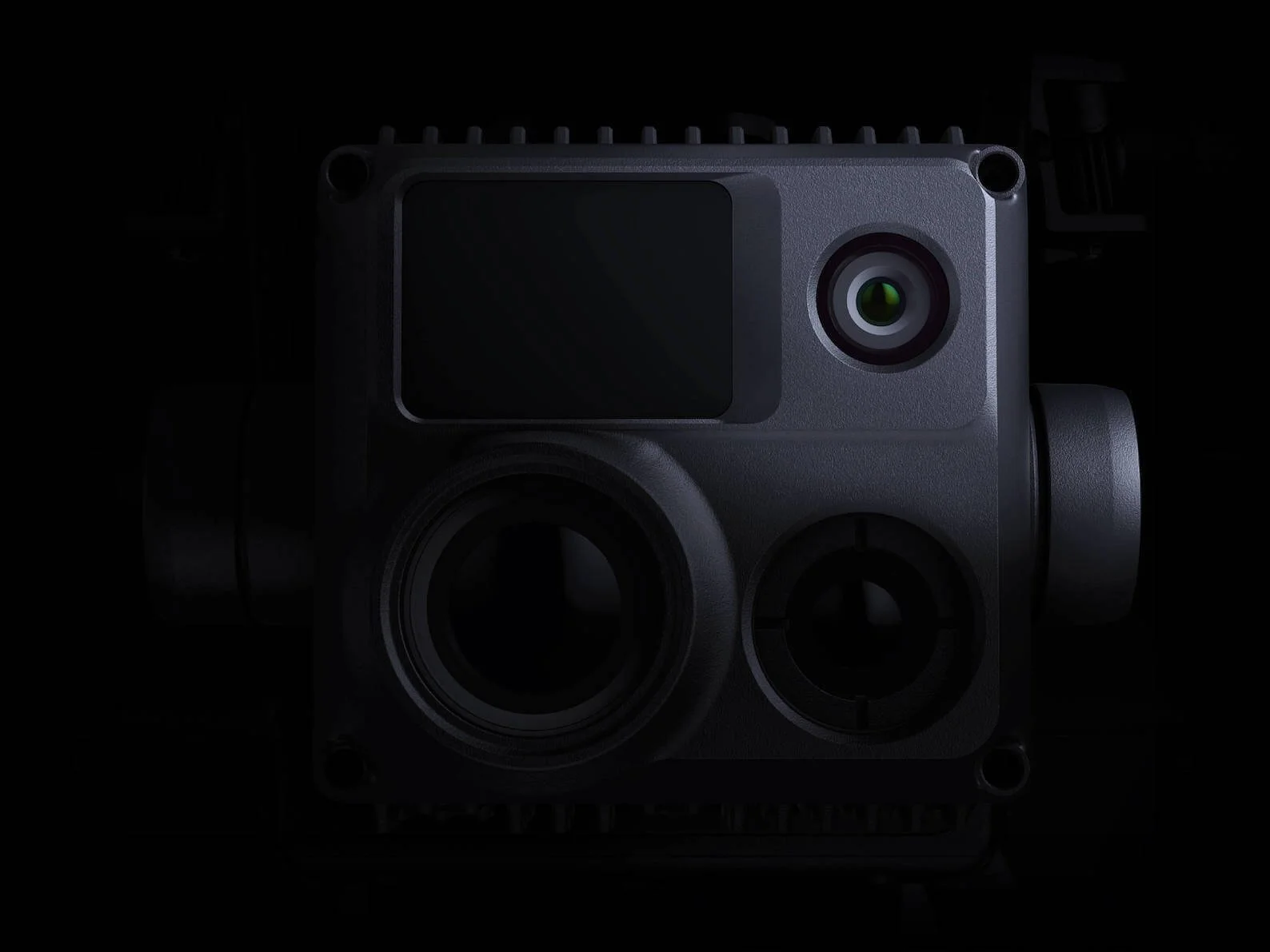

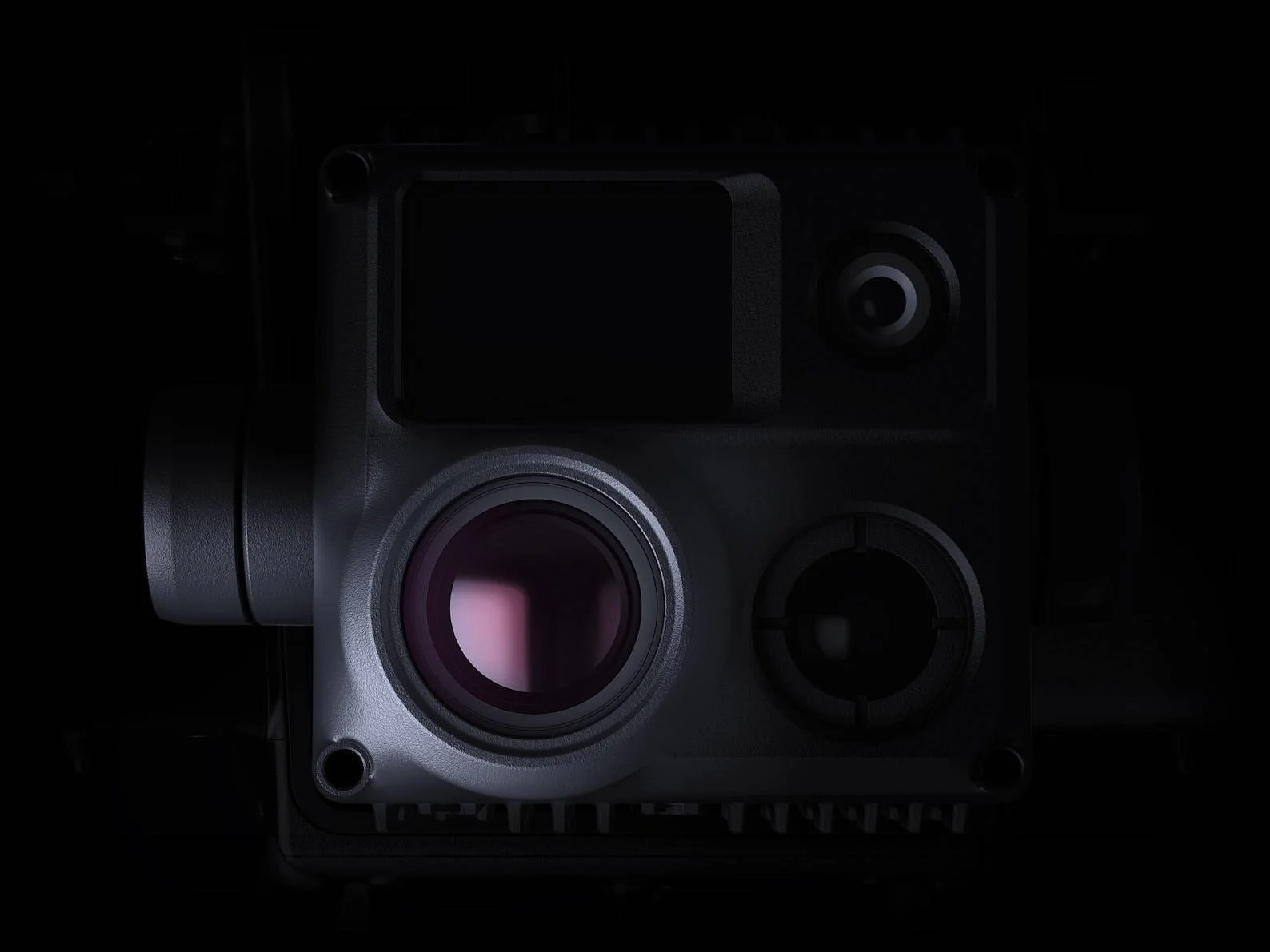

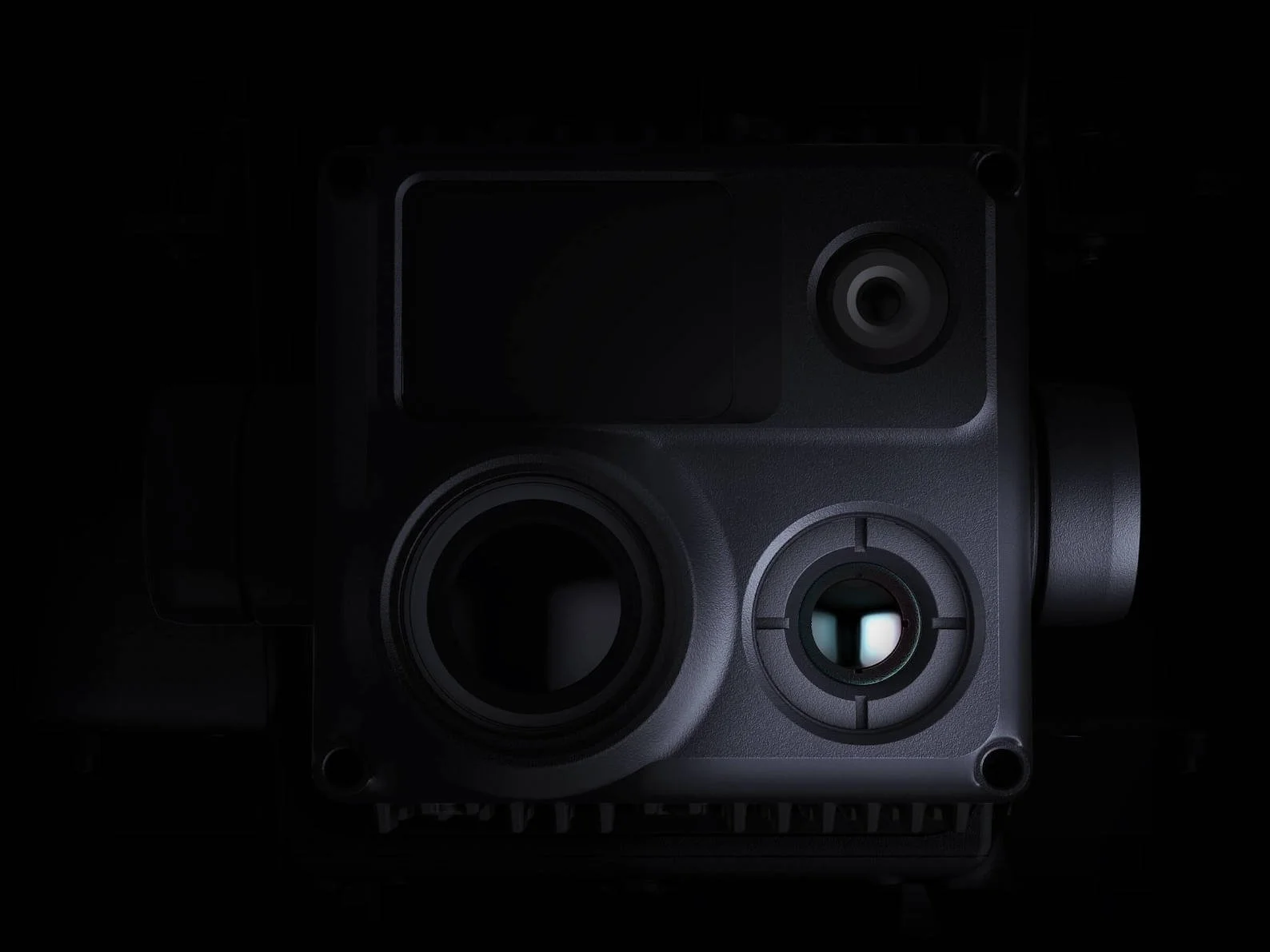

Capture Everything

The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.

Wide Camera

Equivalent Focal Length: 24 mm, DFOV: 84°

12 MP 1/2'' CMOS Sensor
Video Resolution: 4K/30fps

Laser Rangefinder

Laser Rangefinder

Range: 3 m - 1200 m

Accuracy: ±(0.2m+D×0.15%)6

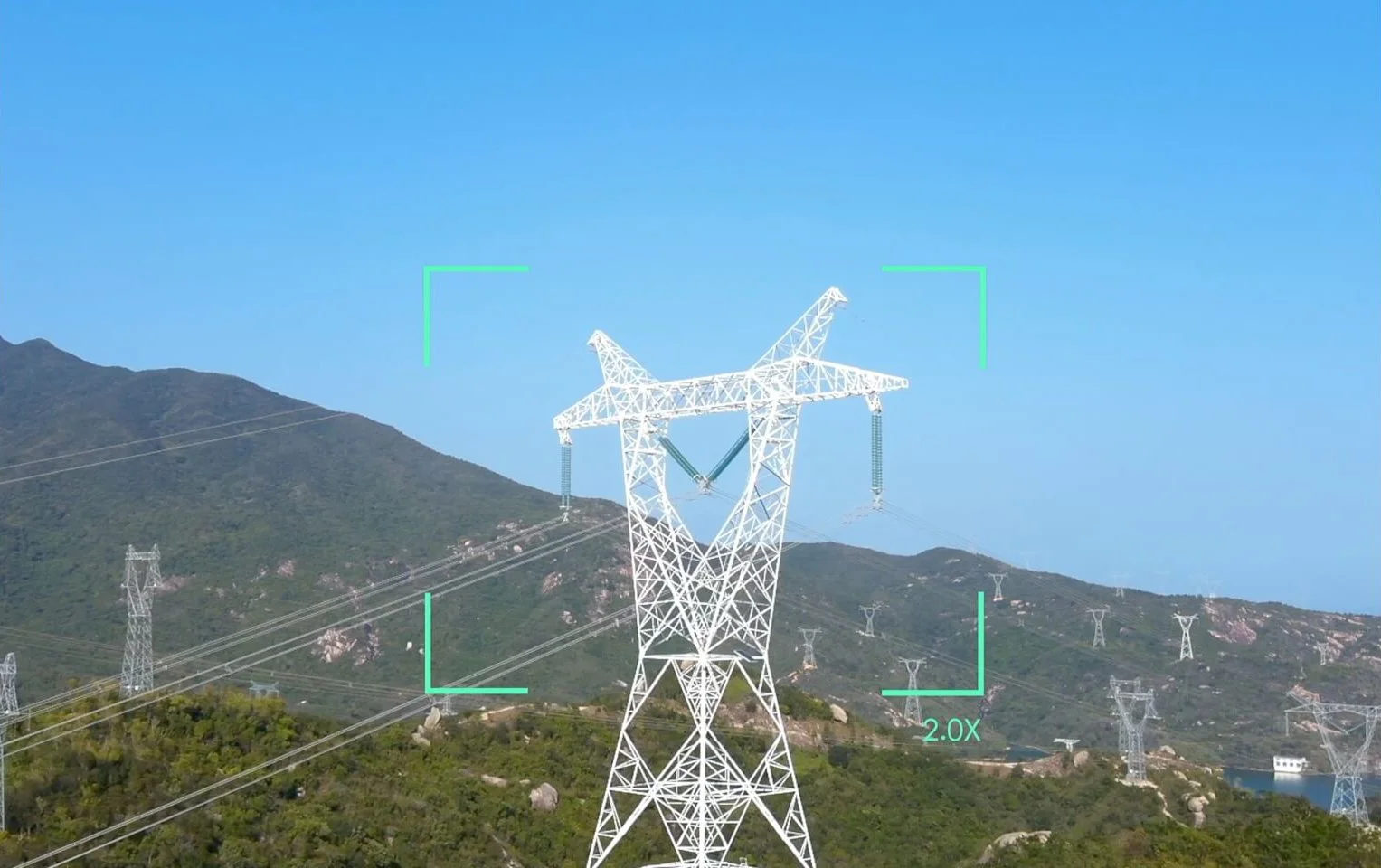

Zoom Camera

48 MP 1/2'' CMOS Sensor

5x-16x Optical Zoom, 200x Max. Hybrid Zoom

Photo Resolution: 8K, Video Resolution: 4K/30fps

Thermal Imaging Camera

Equivalent Focal Length: 40 mm
Resolution: 640×512
Frame Rate: 30fps
Measurement Accuracy: ±2°C or ±2%5

Superior Image Quality

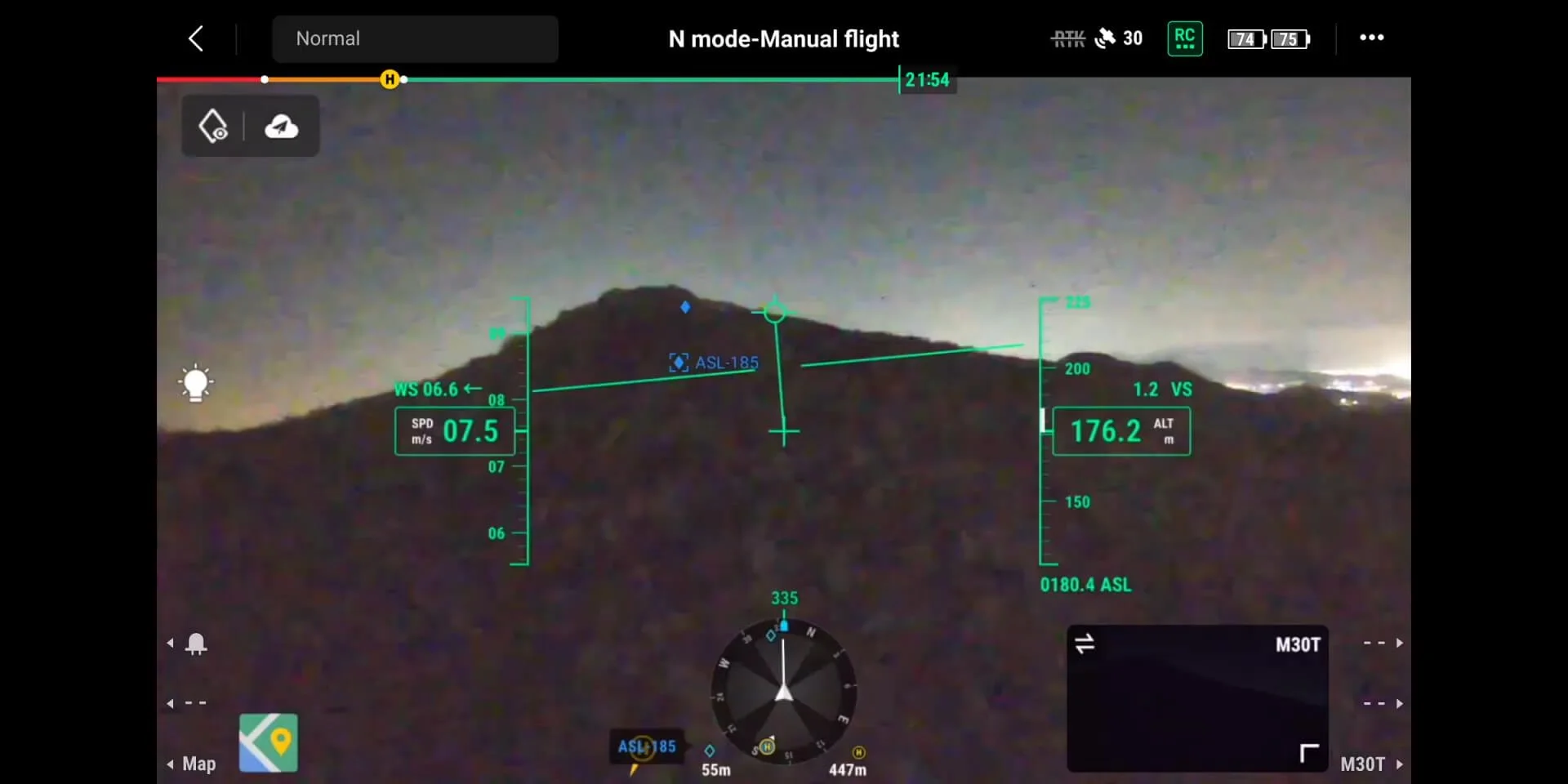

Night Flight

With the FPV camera optimized for low-light conditions, the ground and skyline are clearly visible, even at night, so you can fly with safety and confidence.

Smart Low-Light Photo

Capture bright, clear images in low-light conditions with Smart Low-Light Photo.

RGB

See it all from above.

Infrared

Find hotspots and heat signatures thanks to high-resolution thermal capabilities.

Enhanced Transmission

Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.

Lightweight and Portable

Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.

A Revolutionary Flight Control Experience

Built For Commercial Drone Pilots

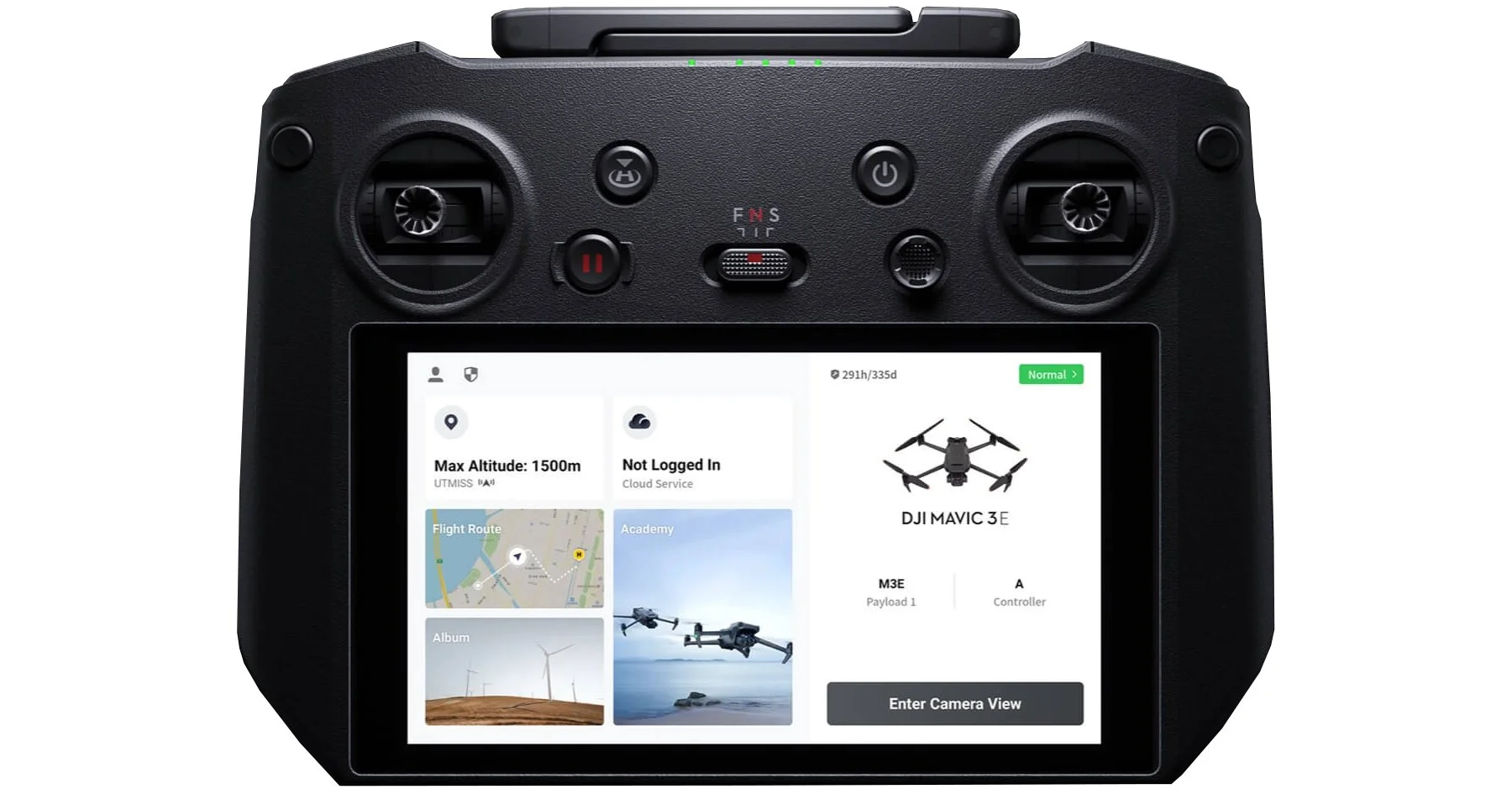

The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.

Enterprise Environmental Adaptability

IP54 Protection

Water and dustproof

-20°C to 50°C

Capable in climates both hot and cold

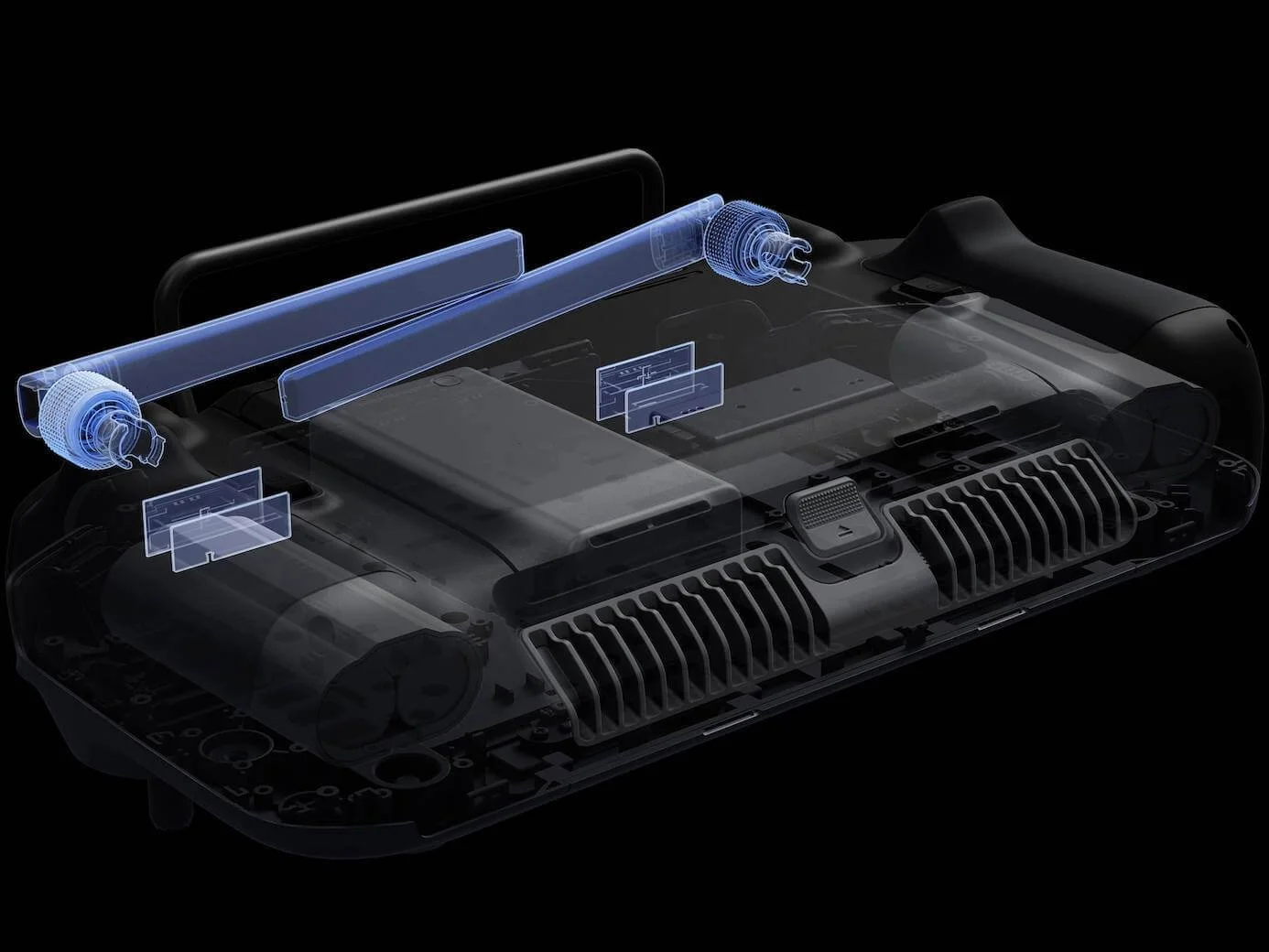

Four Antenna OcuSync 3 Enterprise

Four Antenna OcuSync 3 Enterprise

Cover more area with stable video transmission and removable dual-antennas.

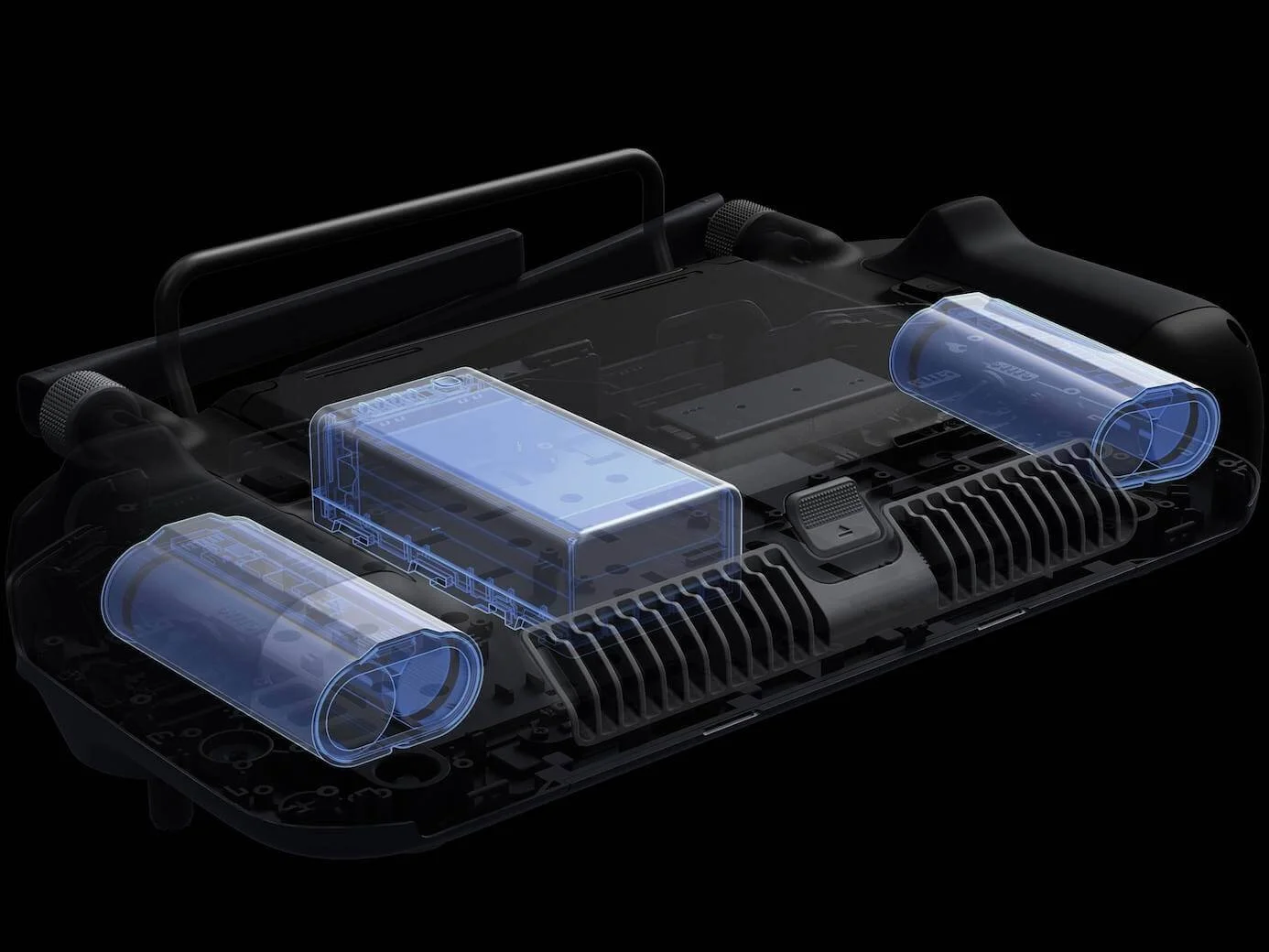

Extended Battery Life

Extended Battery Life

Internal and external battery configuration powers 6 hours of battery life and enables hot-swapping for seamless, uninterrupted flight operations.

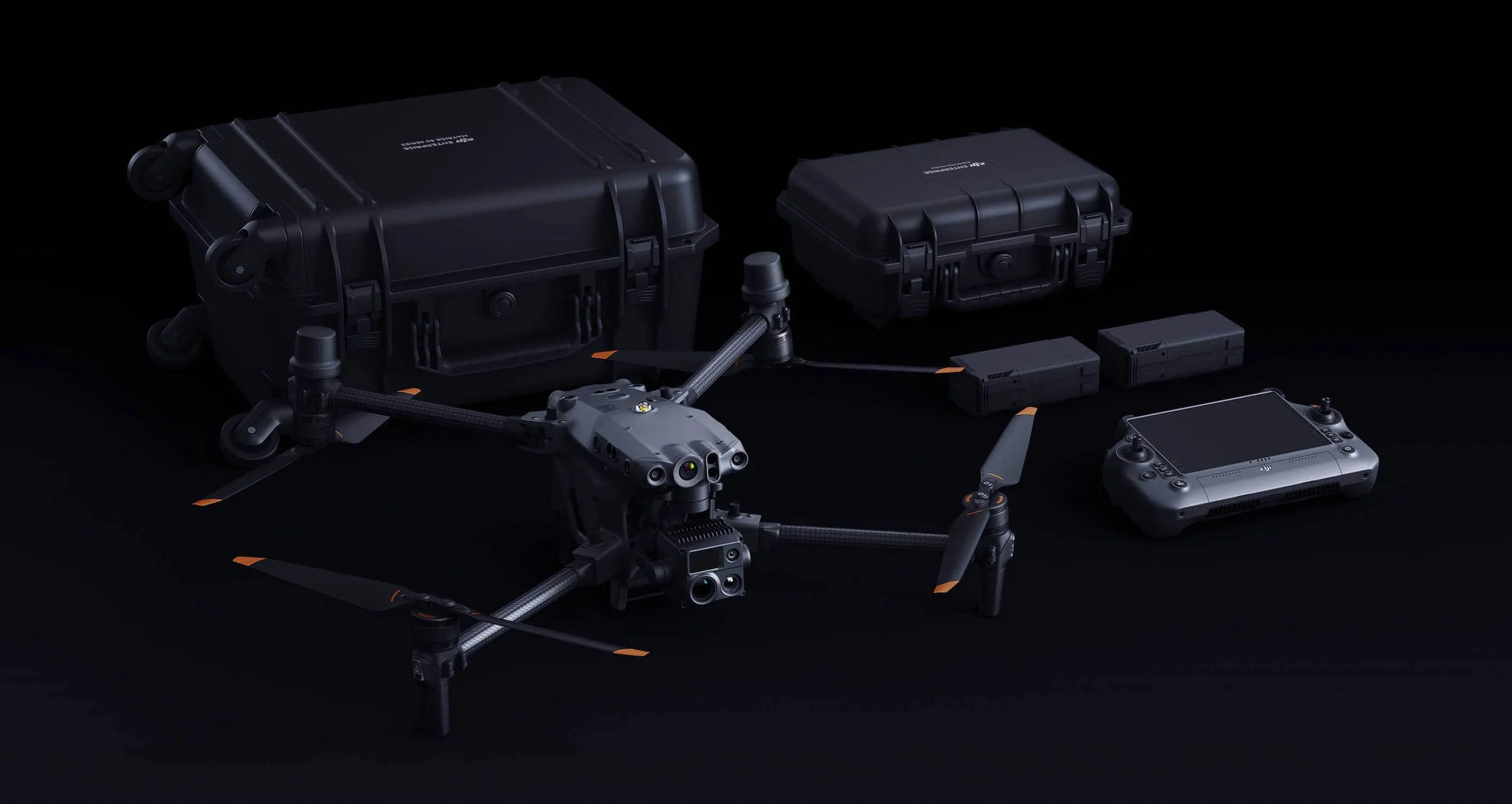

Core Package

The Matrice 30 Series (M30 or M30T) comes with a DJI RC Plus, two TB30 Intelligent Flight Batteries, one BS30 Intelligent Battery Station, and the aircraft storage case.

Full Software Suite

DJI Pilot 2

A revamped Enterprise flight interface designed to improve piloting efficiency and flight safety. Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience together with support for various route types.

DJI Terra

Full featured mapping software for all stages of work, from mission planning to processing of 2D and 3D models.

DJI FlightHub 2

All-in-one cloud drone operations management for your fleet with support for live annotations and cloud mapping for seamless ground-to-cloud synergy. Efficiently manage inspection operations with route planning and mission management.

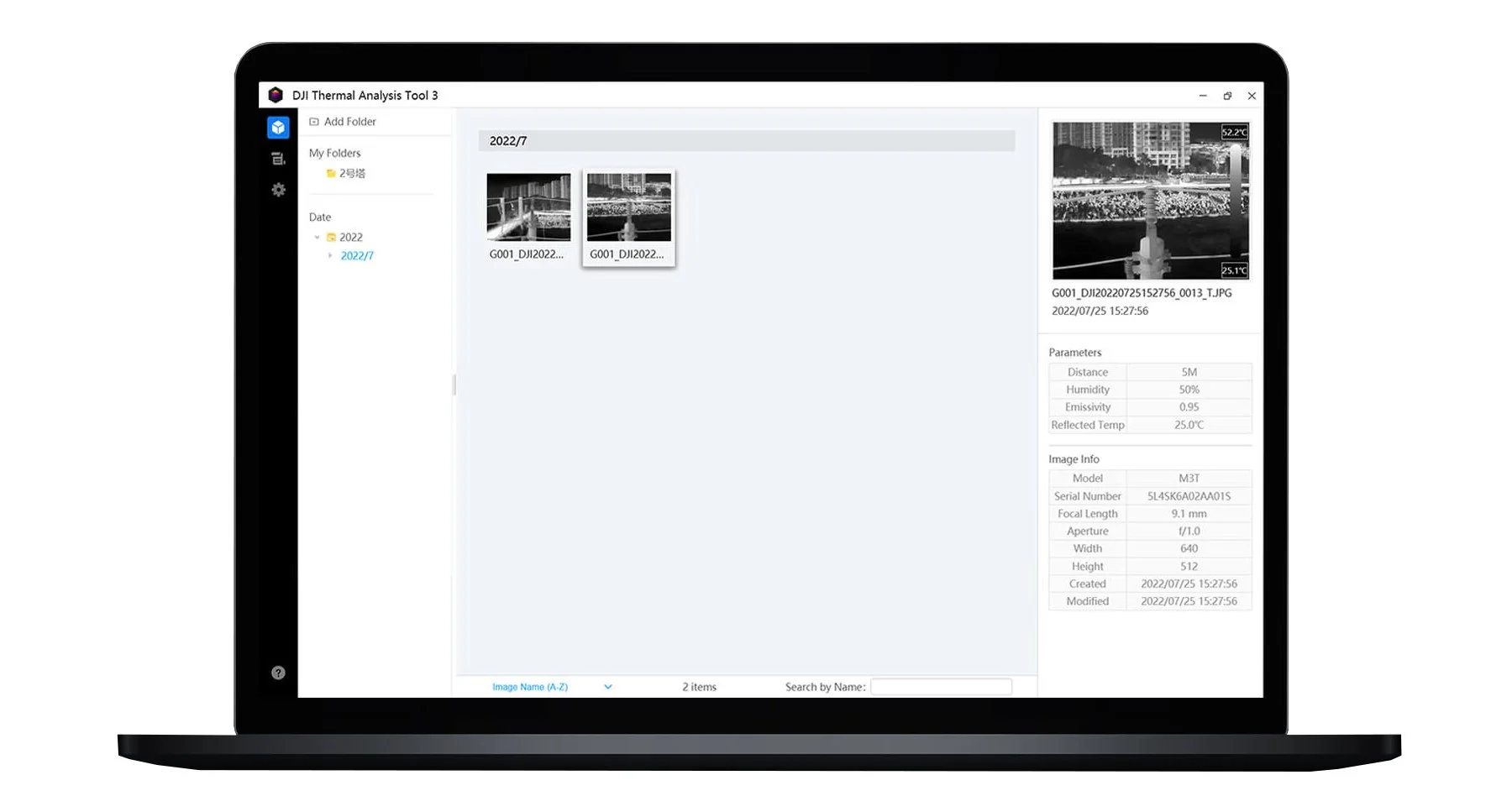

DJI Thermal Analysis Tool 3.0

Analyze, annotate, and process images captured by M3T using DTAT 3.0 to detect temperature abnormalities in your inspections.

1. Measured at 36 km/h uniform speed in a windless environment. Actual flight duration may vary depending on the environment, flight mode, and accessories.
2. Takeoff and landing can withstand wind speeds up to 12 m/s.
3. The service ceiling of 7000 m is achievable with high altitude propellers.
4. The maximum value is taken for both.
5. D refers to the vertical distance between the laser rangefinder and the reflective surface.
6. The Matrice 30 Series (Dock Version) has an additional integrated charging module. Please note that the M30 Series is not compatible with the DJI Dock and cannot be upgraded or modified to become a Dock Version.
7. Measured in clear environments without transmission or signal interference.
8. To ensure operation safety, DJI Docks will enter standby mode when the temperature goes below -20° C (-4° F), and resume flight missions when the temperate goes back up above that.
9. Based on 25℃ ambient temperature measurement. As ambient temperature increases, the battery cooling time will increase and the operating interval will be extended.
10. The TB30 can achieve up to 400 charge cycles within a 12-month period if it's charged to 90% or higher for fewer than 120 days combined. Battery-related information can be viewed in the Health Management System on the DJI Pilot 2 APP.
