DJI DOCK 3
Rise to Any Challenge
Equipped with Matrice 4D or Matrice 4TD high-performance drones, DJI Dock 3 empowers 24/7 remote operations and, for the first time, supports mobile vehicle-mounted deployment, effortlessly adapting to various environments. The drones utilize the same cameras as the Matrice 4 Series but offer improved flight and protection performance. They can also pair with DJI RC Plus 2 Enterprise for standalone use. With DJI FlightHub 2's intelligent features, pilots can significantly cut down on operational time and labor costs, maximizing efficiency and savings.
Master All
Environments
Efficient Operation with
Intelligent Features
Flexible Deployment,
Ultra-Long Transmission
Enhanced Experience
With Advanced Software
High-Performance
Drones
Secure and Compliant,
Open Ecosystem
DJI Care Enterprise
Master All Environments
Flexible Deployment, Ultra-Long Transmission

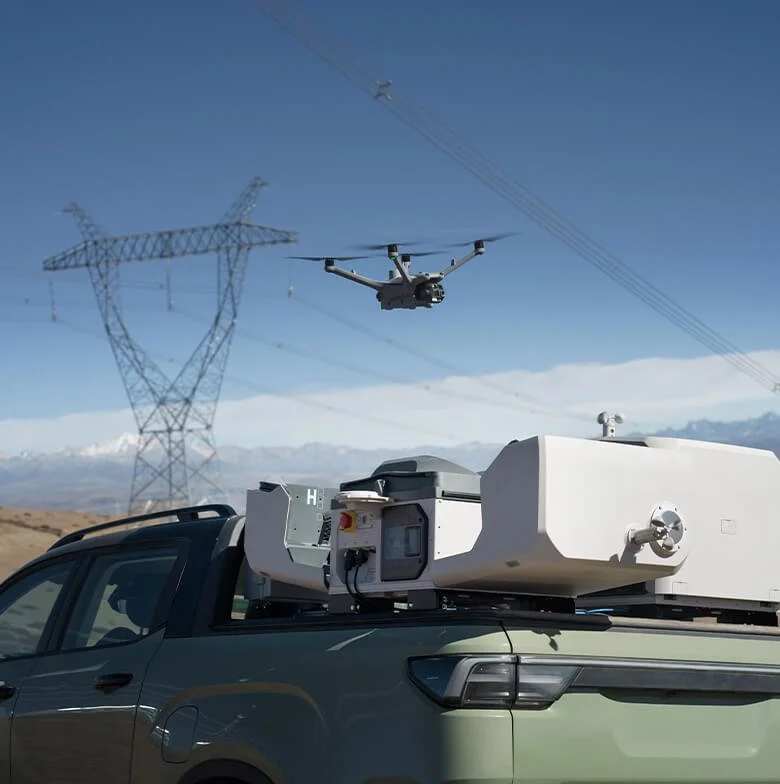

DJI Dock 3 can be flexibly deployed, redefining the paradigm of operations. For fixed deployments, signal quality can be enhanced by installing the next-gen D-RTK 3 Relay at elevated locations, allowing for flexible site selection of the dock. With the new DJI Enterprise app, deployment can be completed using just a smartphone. Additionally, for the first time, a DJI Dock supports vehicle-mounted deployment, enabling more efficient dispatch during urgent operations and long-distance inspections.
Fixed-Mounted Deployment
The new D-RTK 3 Relay Fixed Deployment Version offers superior anti-interference performance for video transmission and satellite acquisition. Installing it at elevated locations can effectively address RTK and video transmission signal issues caused by obstructions, extending the maximum transmission distance to 25 km. This capability allows for flexible site selection of Dock 3 based on actual operational needs.

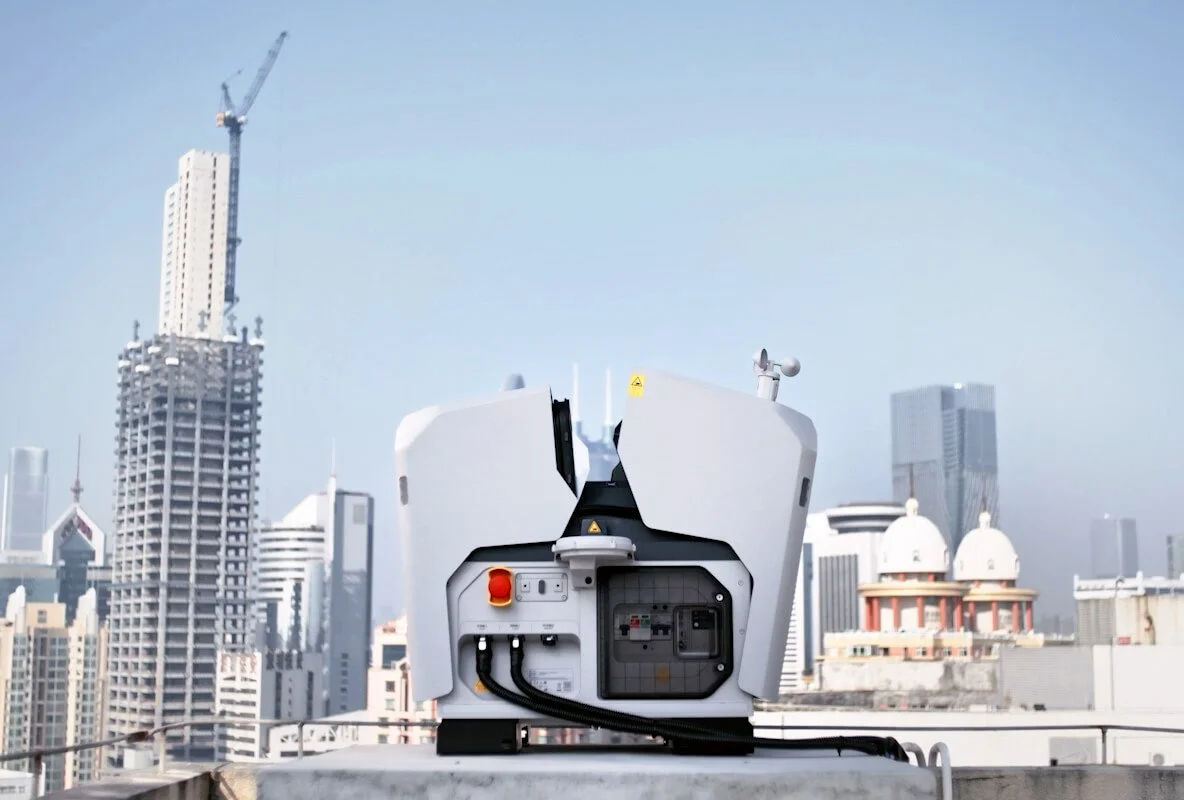

Near High-Rise Buildings
Installing the D-RTK 3 Relay on rooftops can significantly enhance signal quality, allowing Dock 3 to be deployed next to high-rise buildings or substation walls.
Near Communication Towers
Deploying the D-RTK 3 Relay on a nearby communication tower can significantly enhance signal quality during Dock 3 operations, ensuring safe takeoffs and landings even in environments with interferences from the communication tower.

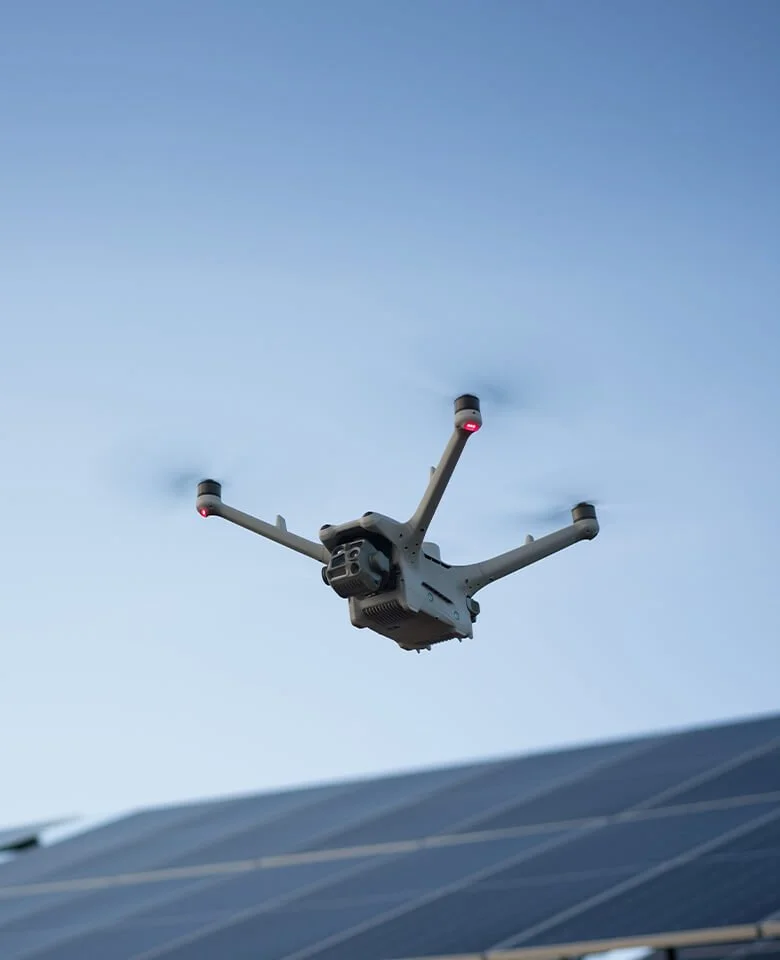

High-Performance Drones
The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.

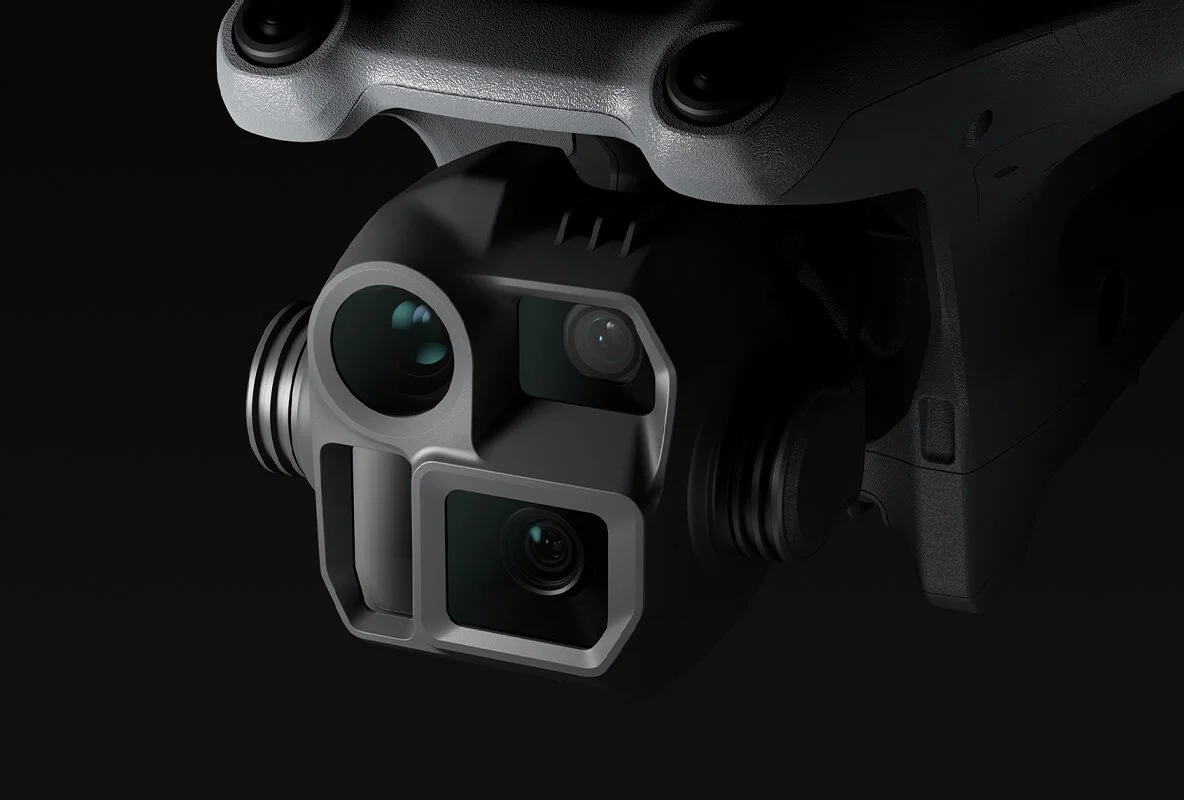

DJI MATRICE 4D
Wide-Angle Camera
4/3 CMOS
20MP Effective Pixels
f/2.8-f/11
24mm Format Equivalent
Mechanical Shutter
Medium Tele Camera
1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent
Tele Camera
1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent
Laser Range Finder
Measurement Range: 1800 m (1 Hz);
Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy (m): ± (0.2 + 0.0015 × D)

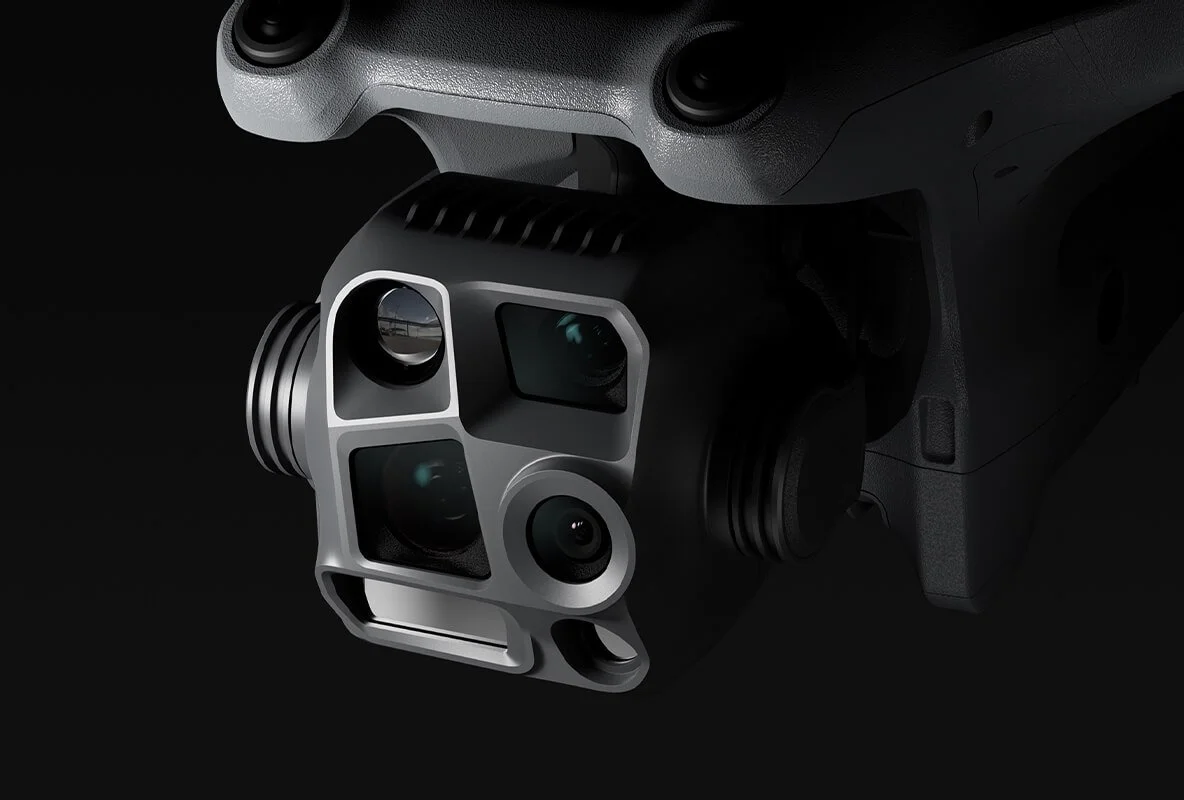

DJI MATRICE 4TD
Wide-Angle Camera
1/1.3-inch CMOS
48MP Effective Pixels
f/1.7
24mm Format Equivalent
Medium Tele Camera
1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent
Tele Camera
1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent
Laser Range Finder
Measurement Range: 1800 m (1 Hz);
Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy (m): ± (0.2 + 0.0015 × D)
NIR Auxiliary Light
6° FOV, 100m Illumination Distance
Infrared Thermal Camera
640×512 Resolution
f/1.0
53mm Format Equivalent
Uncooled VOx Microbolometer
Supports UHR Infrared Image mode
Longer Flight Time, Robust Protection
When fully charged, Matrice 4D/4TD delivers an impressive flight time of 47 minutes at a speed of 15 m/s, achieving a remarkable 37% increase in operation time. At a radius of 10 km, these drones provide 18 minutes of operation. Both models are designed to endure harsh conditions with an impressive IP55 dust and water resistance rating.
Obstacle Sensing for Safe Operation
The Obstacle Sensing Module for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.

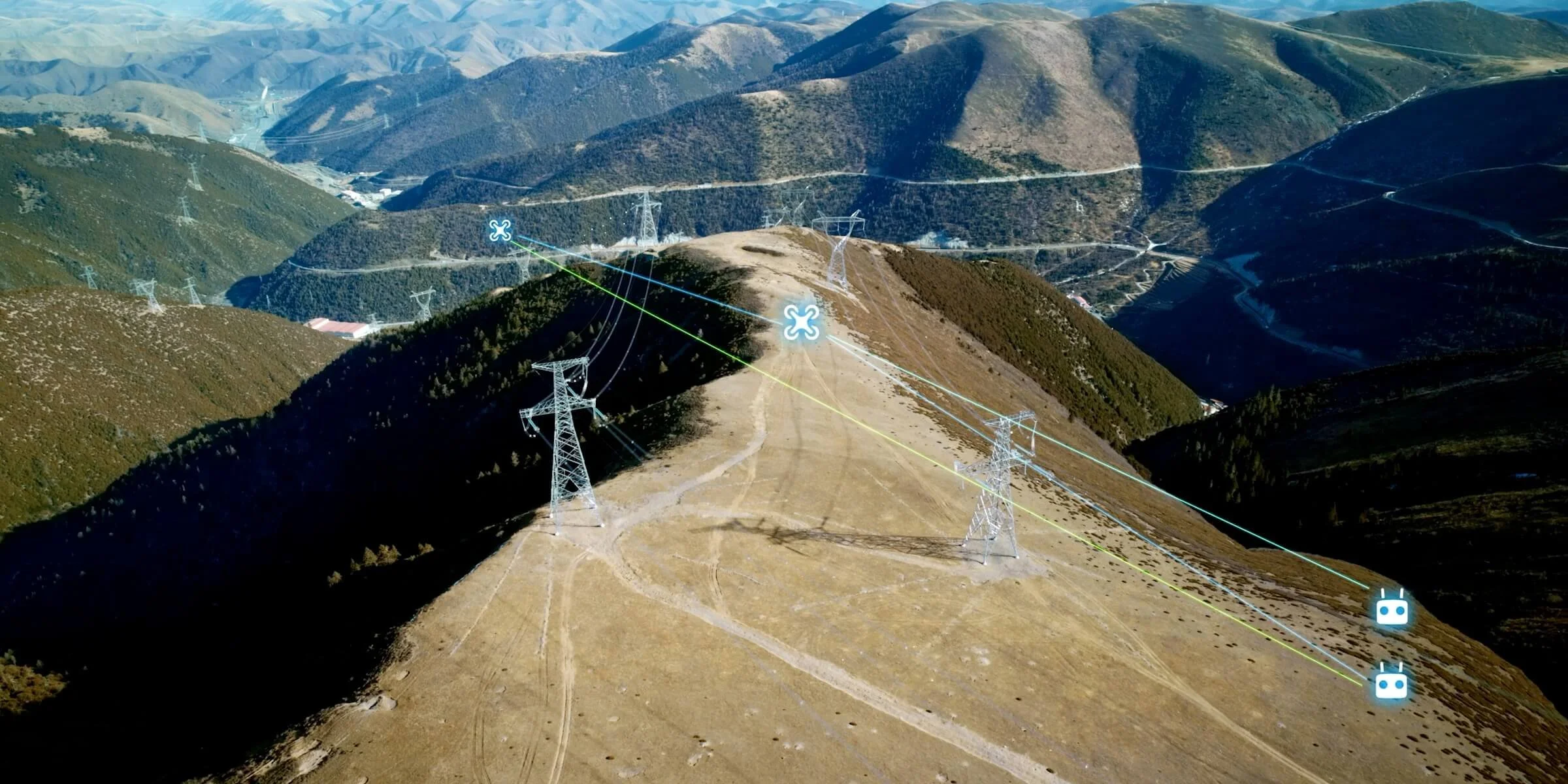

Seamless Airborne Relay for Mountainous Terrains
Matrice 4D Series can operate with the DJI RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function. With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, ensuring smooth video transmission without a 4G signal or in obstructed conditions. This capability significantly extends the transmission range, making it ideal for SAR tasks and inspections in mountainous areas.

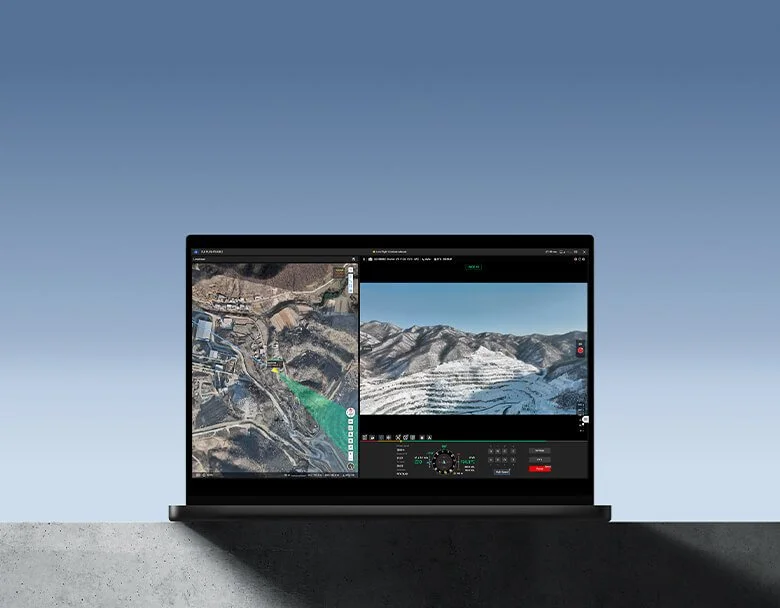

DJI FlightHub 2 Intelligent Features
When paired with DJI FlightHub 2, Dock 3 greatly enhances the intelligence and efficiency of remote operations.
Security Compliance

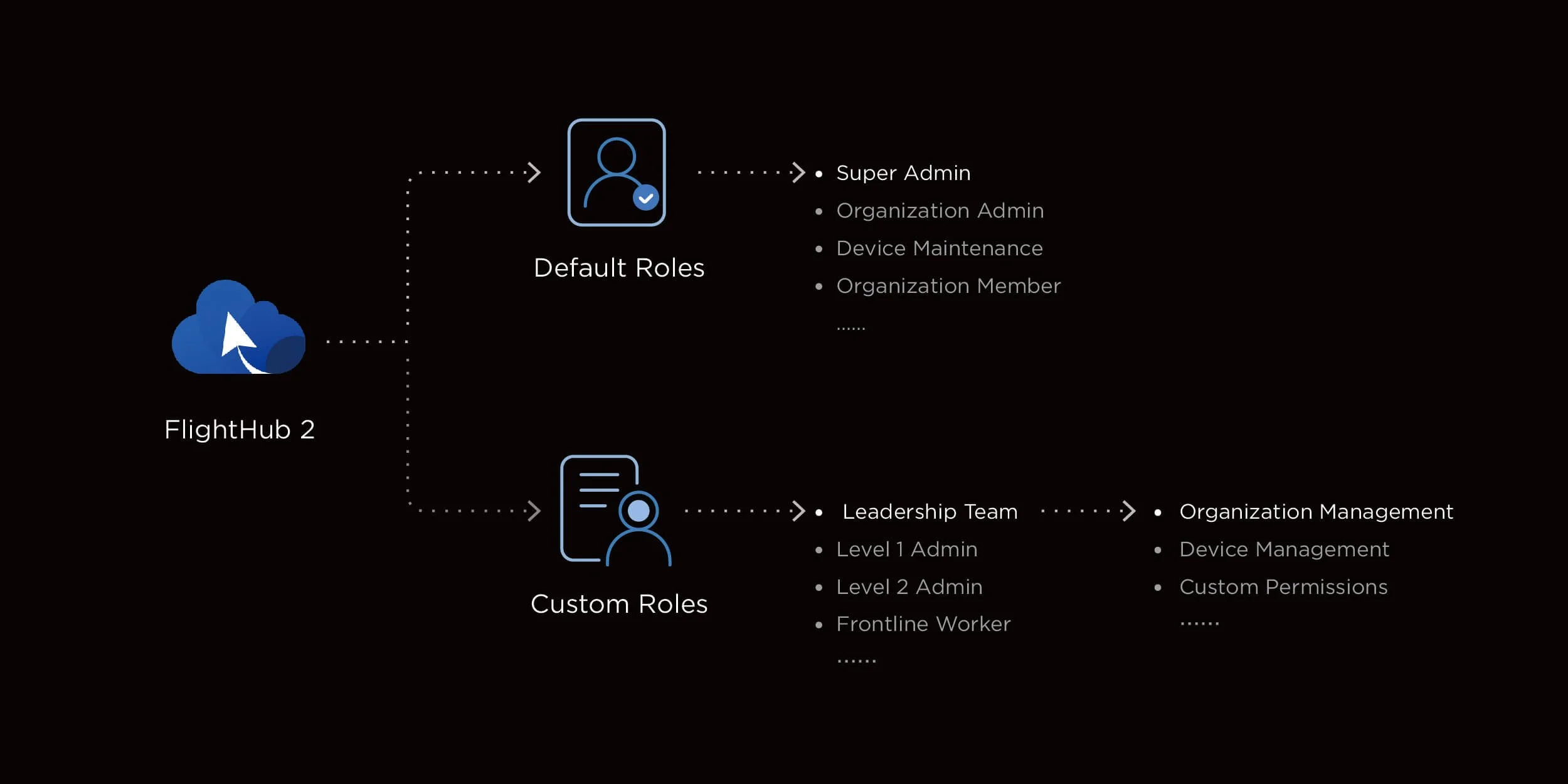

FlightHub 2 Custom Permission Management
FlightHub 2 has upgraded its permission management, allowing users to configure management permissions according to actual needs.
FightHub 2 Achieves ISO 27001 Certification
FlightHub 2 uploads, stores and manages data on Amazon Web Services (AWS) cloud servers, which are also ISO/IEC 27001 certified, ensuring secure and compliant data processing.

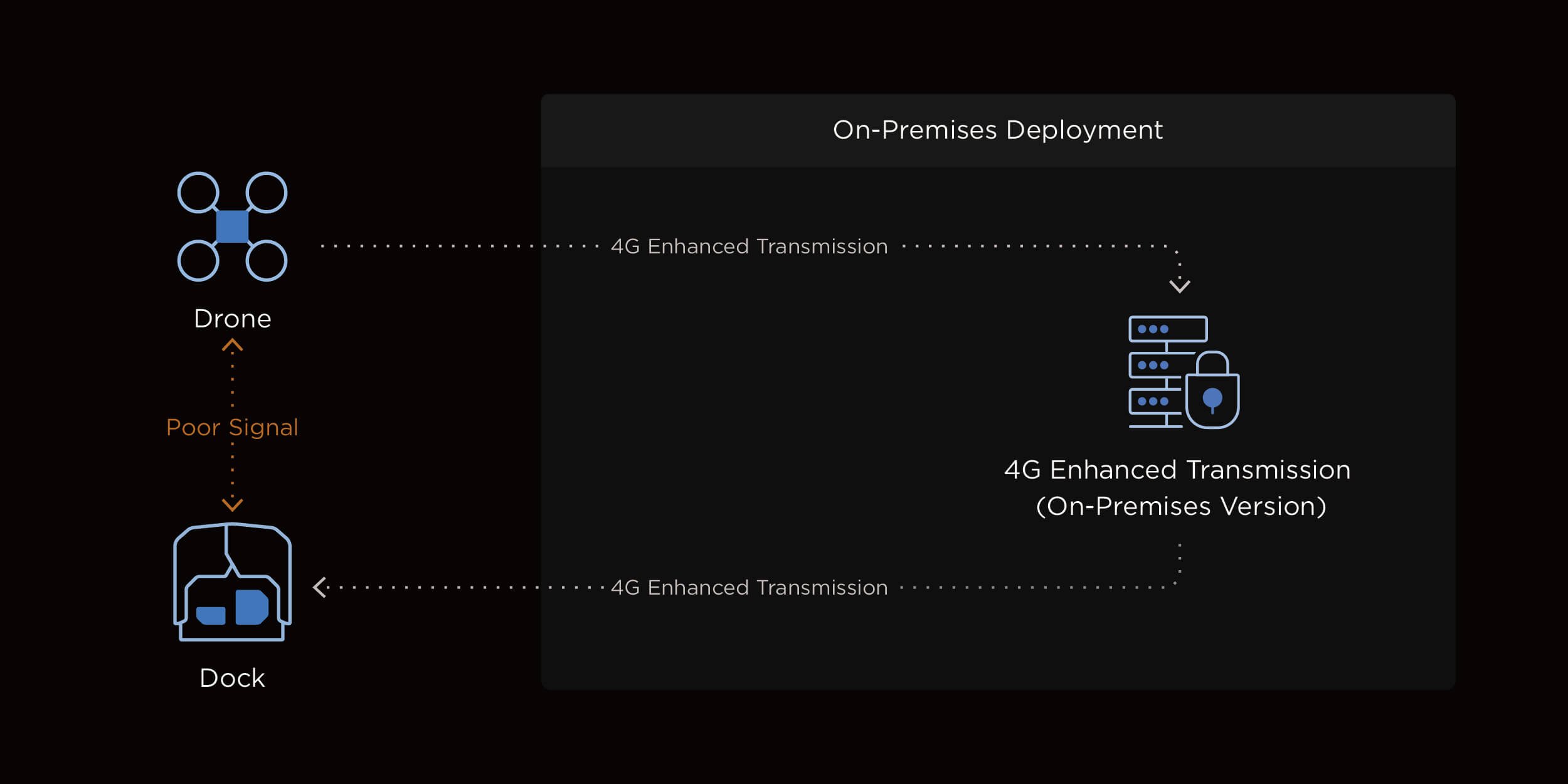

4G Dongle Private Deployment
With DJI Cellular Dongle 2, the aircraft can connect to 4G networks. In complex operational environments, the 4G network works in tandem with O4+ video transmission system to ensure a stable transmission and enhance flight safety. 4G enhanced video transmission service can be privately deployed and used in conjunction with the FlightHub 2 on-premises version to further enhance the stability and security of data transmission.
Comprehensive Accessory Upgrades

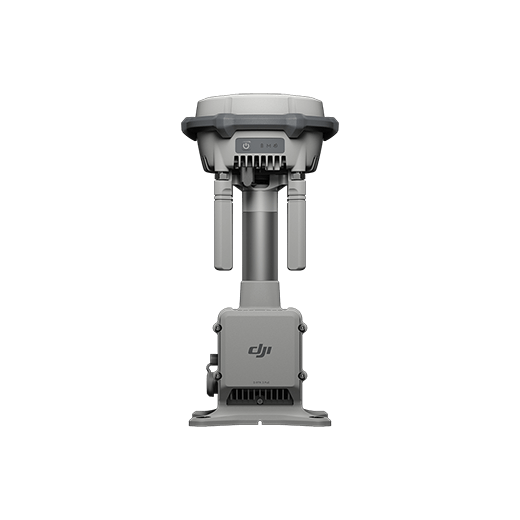

D-RTK 3 Relay Fixed Deployment Version

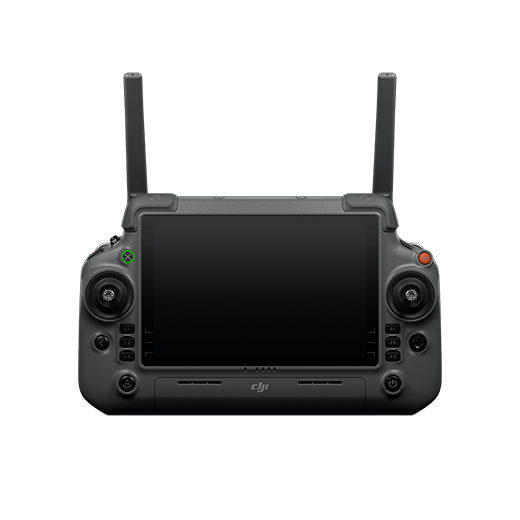

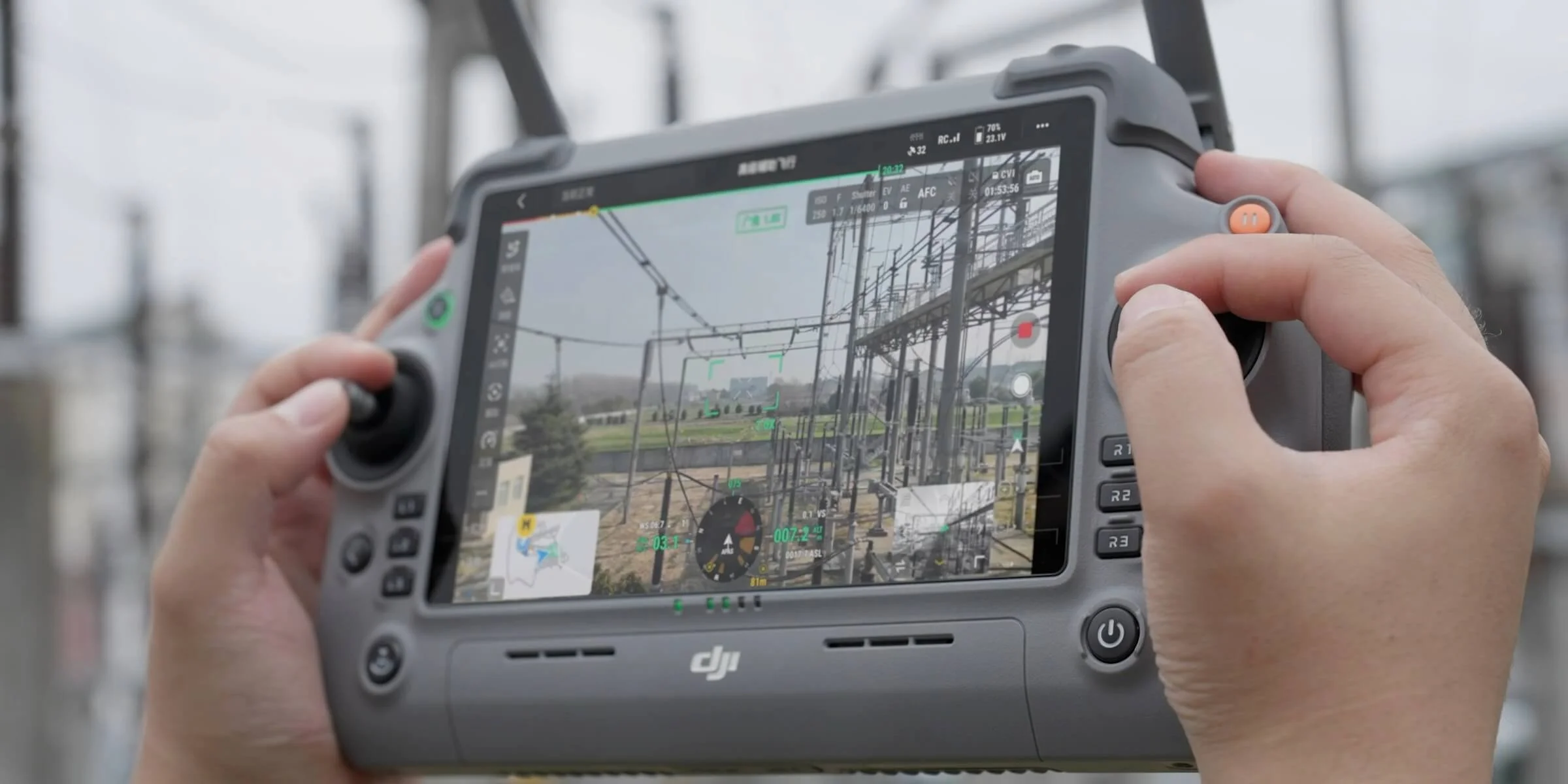

DJI RC Plus 2 Enterprise

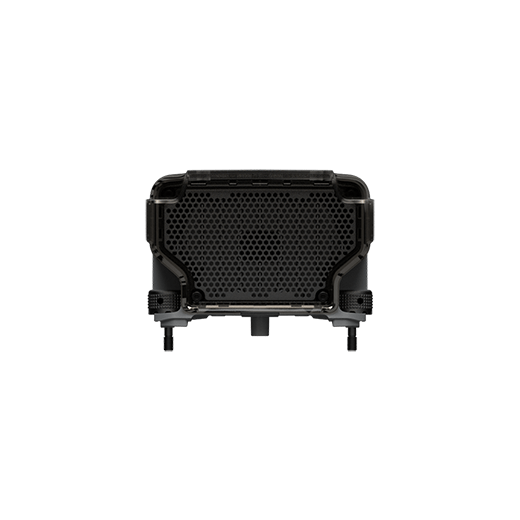

Real-Time Voice Speaker
Integrated Broadcasting and Lighting

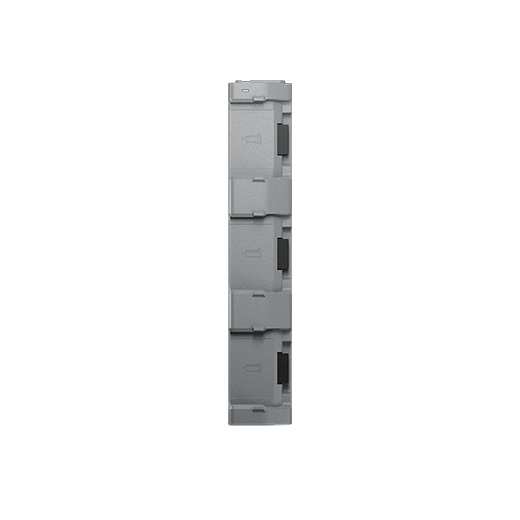

DJI Matrice 4D Series 240W Charging Hub

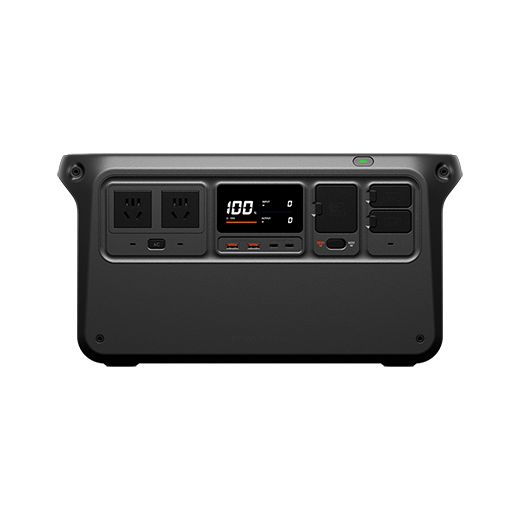

DJI Power 1000
DJI 240W Power Adapter

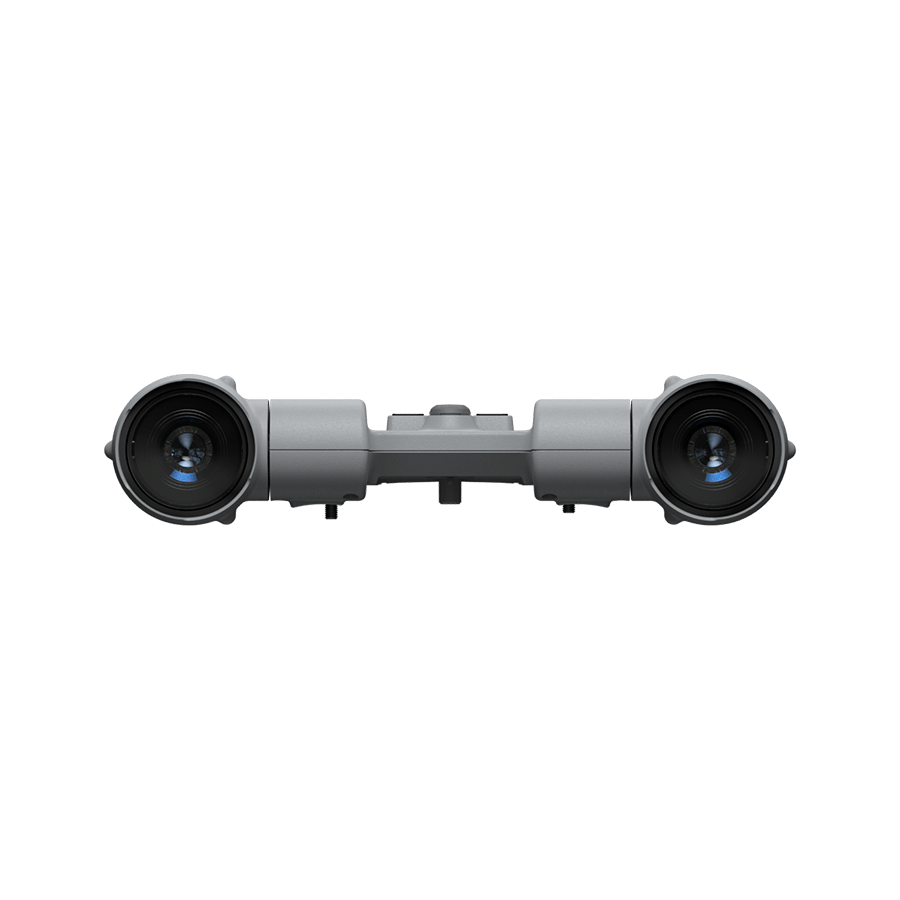

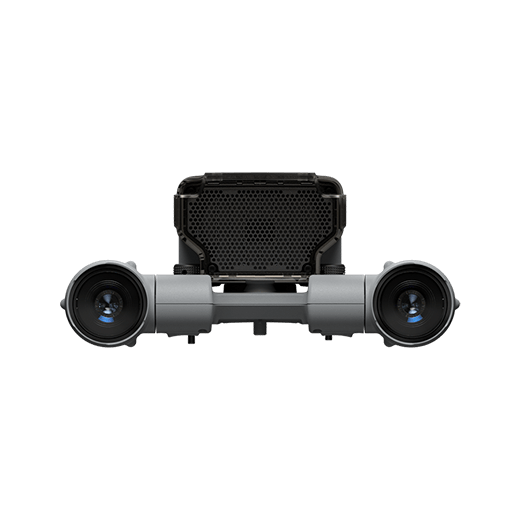

Gimbal-Following Spotlight

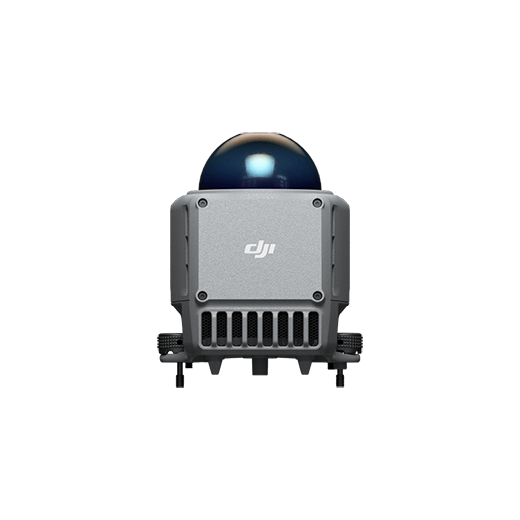

Obstacle Sensing Module

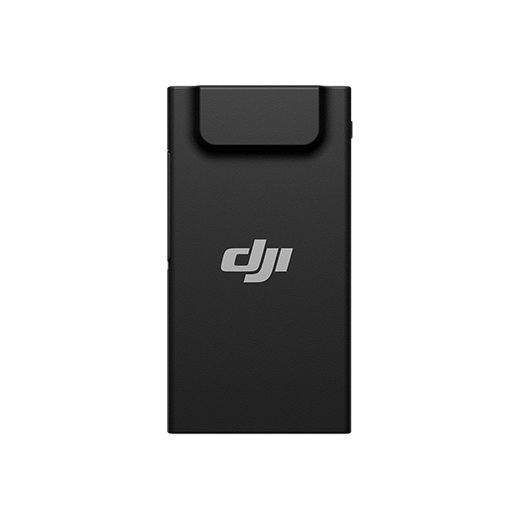

DJI Cellular Dongle 2
Certain accessories are sold separately. Installing certain accessories may affect the obstacle avoidance safety performance of the aircraft. Please follow the instructions for use.
