DJI DOCK 2
Take heavy responsibilities lightly

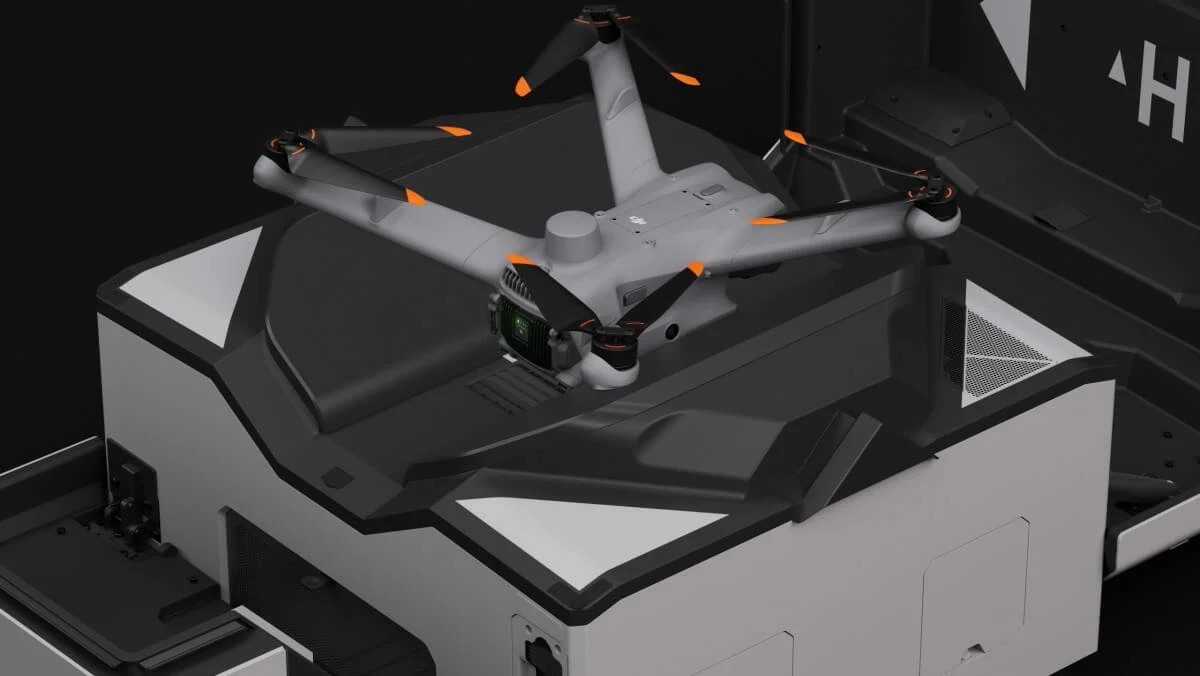

Smaller body, more capable of heavy tasks. The high-performance small unattended platform DJI Dock 2 is equipped with the proprietary Matrice 3D/3TD drone, which is not only lightweight and easy to deploy, but also has stronger operating capabilities and cloud smart functions, significantly reducing the threshold for unattended operations and improving operating efficiency and quality to new heights.
Easy to deploy and put in place quickly
Lightweight design

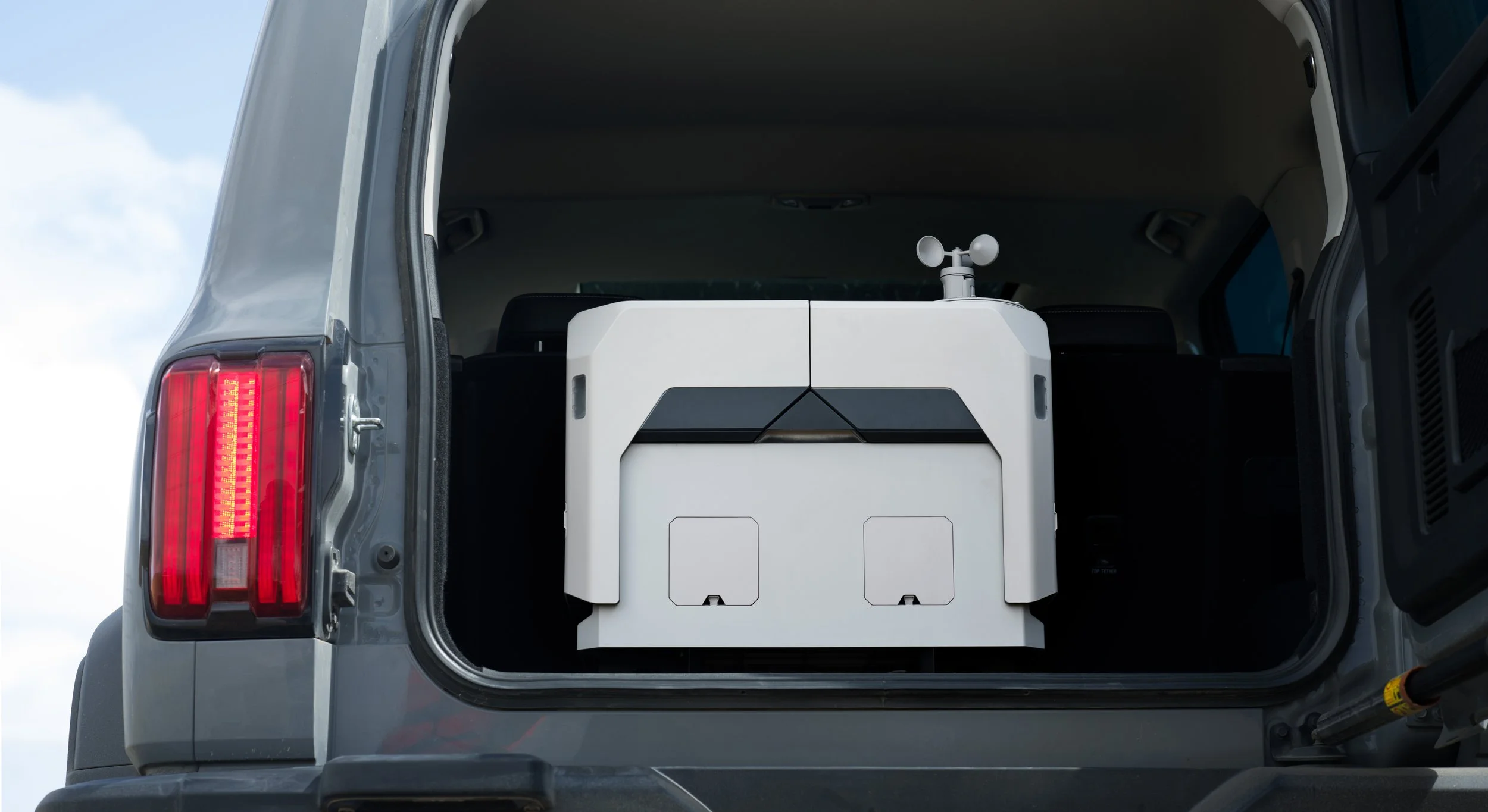

Compared with the previous generation, the volume and weight of DJI Dock 2 have been reduced by approximately 75% and 68% respectively. It can be carried by two people, greatly improving installation flexibility and reducing installation costs .
Quick site survey

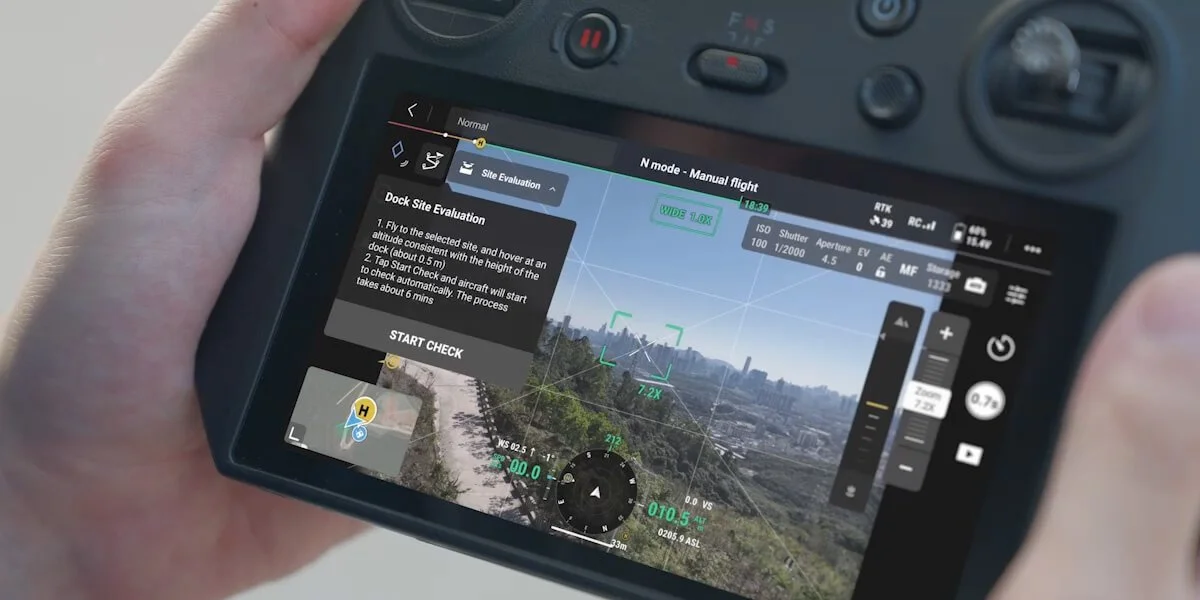

Before deployment, the aircraft* can detect the surrounding environment through visual sensors and quickly determine whether the deployment area has good GNSS signals. Compared with the original survey plan, the new visual survey plan significantly speeds up site selection, shortening the required time from 5 hours to less than 12 minutes* .
Reliable performance, safe and on duty

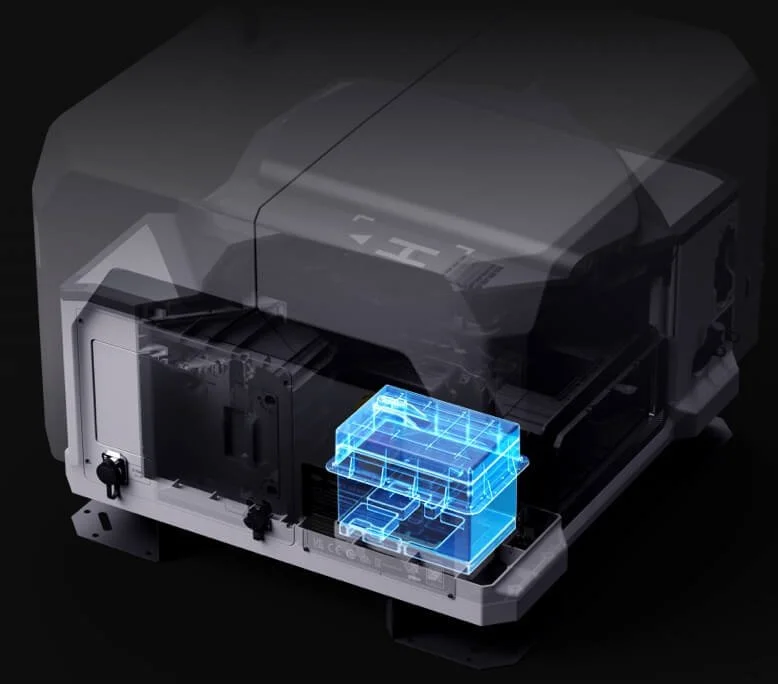

In the event of an unexpected power outage, the airport can still operate independently for more than 5 hours with the help of the built-in battery*, leaving sufficient time for the aircraft to return and land.
Built-in backup battery
Thanks to the high protection design and high reliability, the airport only needs maintenance once every 6 months at most* , effectively controlling labor investment costs.
Six months maintenance interval
When a mission failure or emergency occurs at the airport or aircraft, FlightHub 2 will send mobile phone text messages and email reminders as soon as possible, so operators can accurately troubleshoot the problem based on the guidance information .
Exception reminder
High performance drone

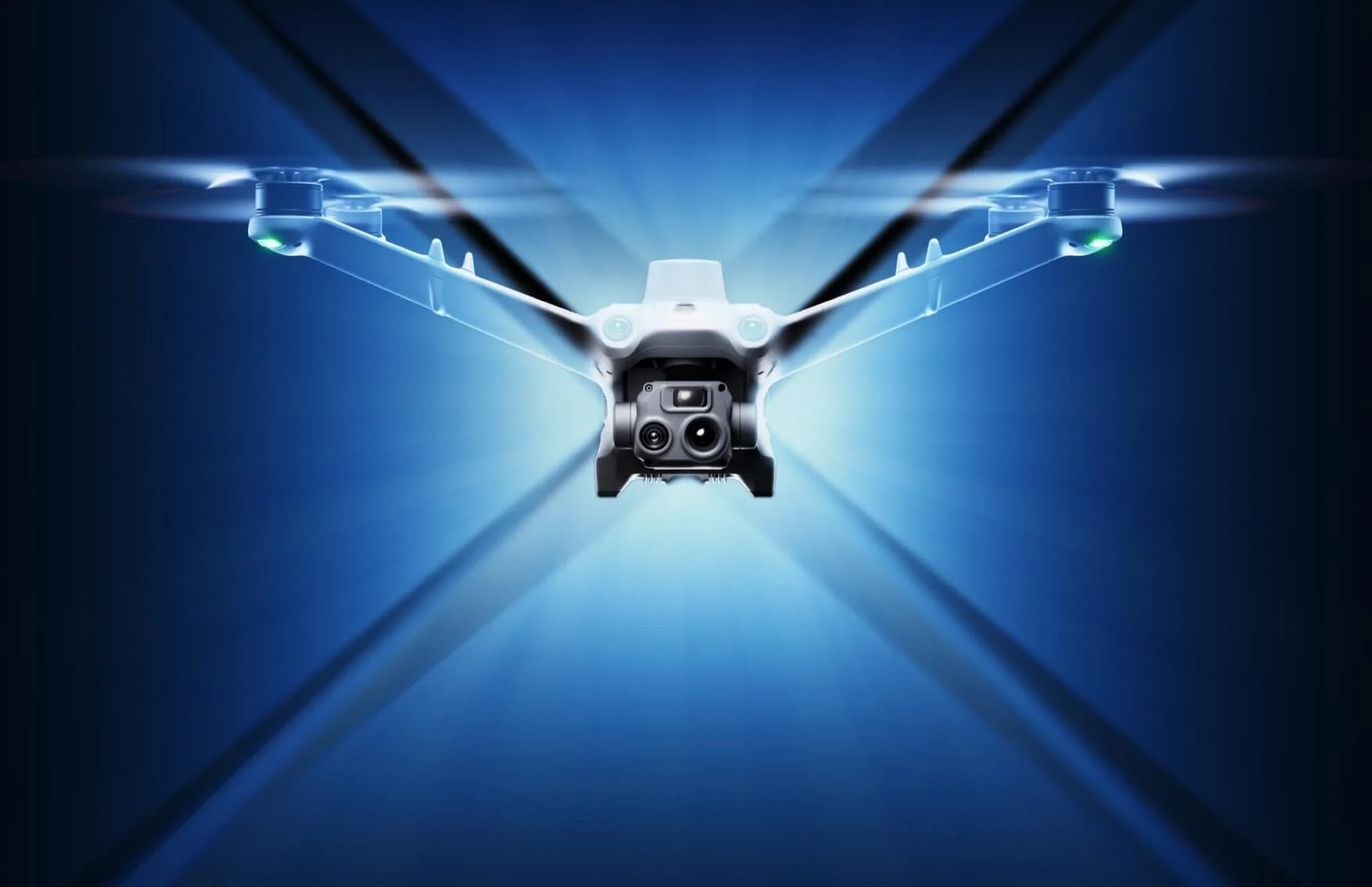

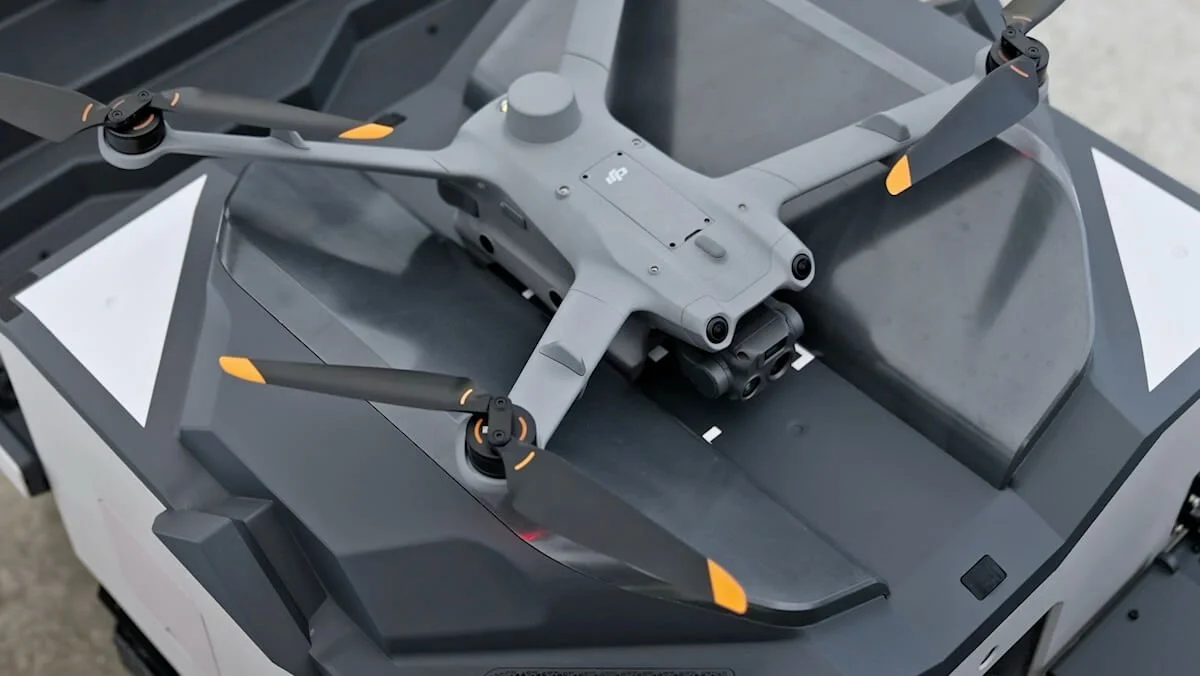

The new DJI Matrice 3D/3TD drone is specially built for DJI Dock 2. Matrice 3D is equipped with a telephoto camera and a mechanical shutter wide-angle camera, which can meet the requirements of 1:500 high-precision surveying and mapping operations. Matrice 3TD is equipped with wide-angle, telephoto and infrared cameras, which can intuitively display visible light and thermal imaging images, and is suitable for security and inspection operations.
Ultra-high performance, everything you need
Thanks to its powerful operating capabilities, DJI Matrice 3D/3TD can meet high-standard operating requirements.
Dustproof and waterproof *
IP54
Maximum flight time *
Six-way obstacle
avoidance system
Maximum effective working radius *
Obstacle avoidance system *
10 kilometers
Integrated RTK module
±3cm positioning accuracy

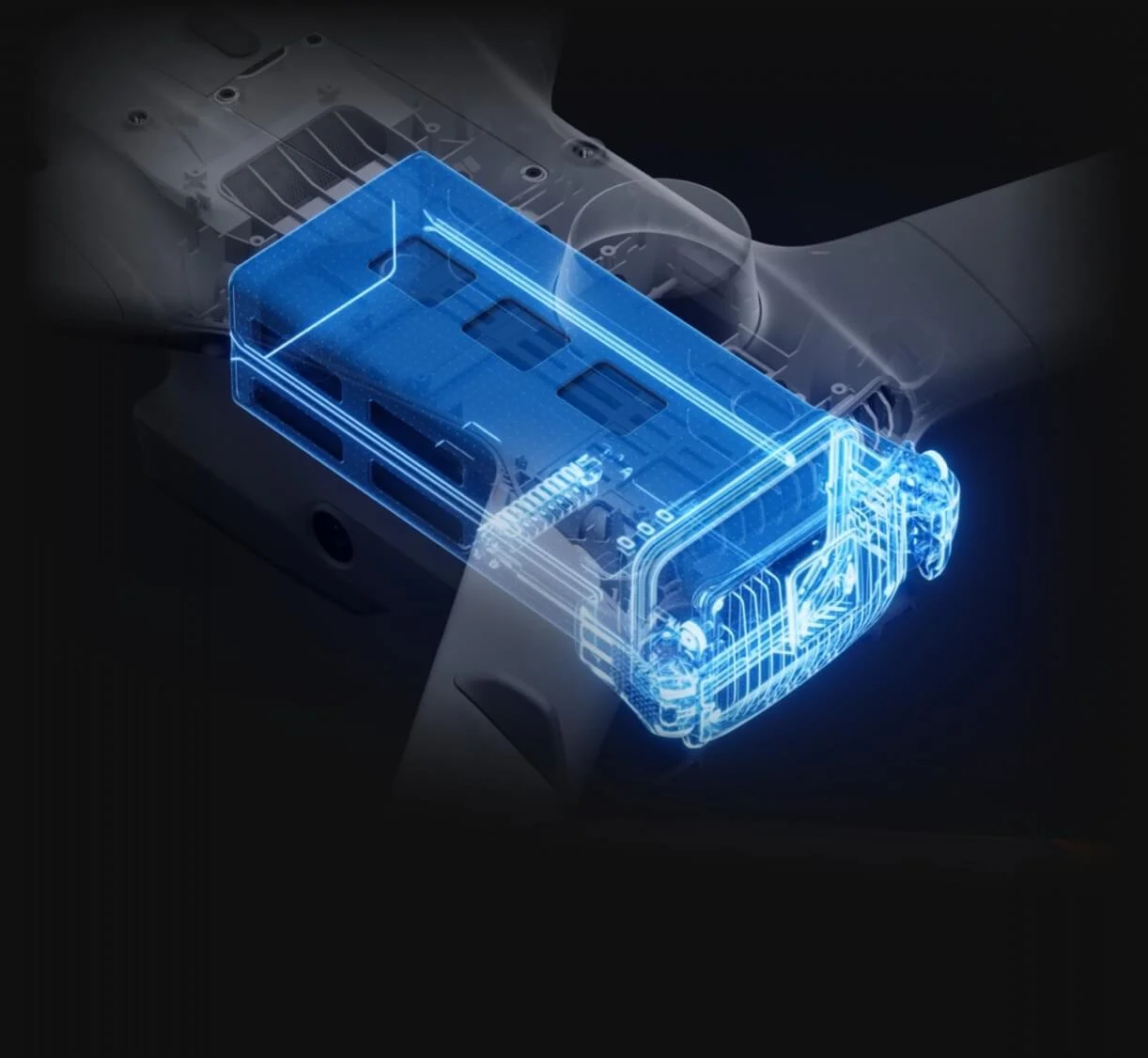

Number of battery cycles
400 times
Stable operation, efficiency first
The airport can quickly charge the aircraft, charging from 20% to 90% in only about 32 minutes, achieving high-efficiency continuous operations.
Fast charging

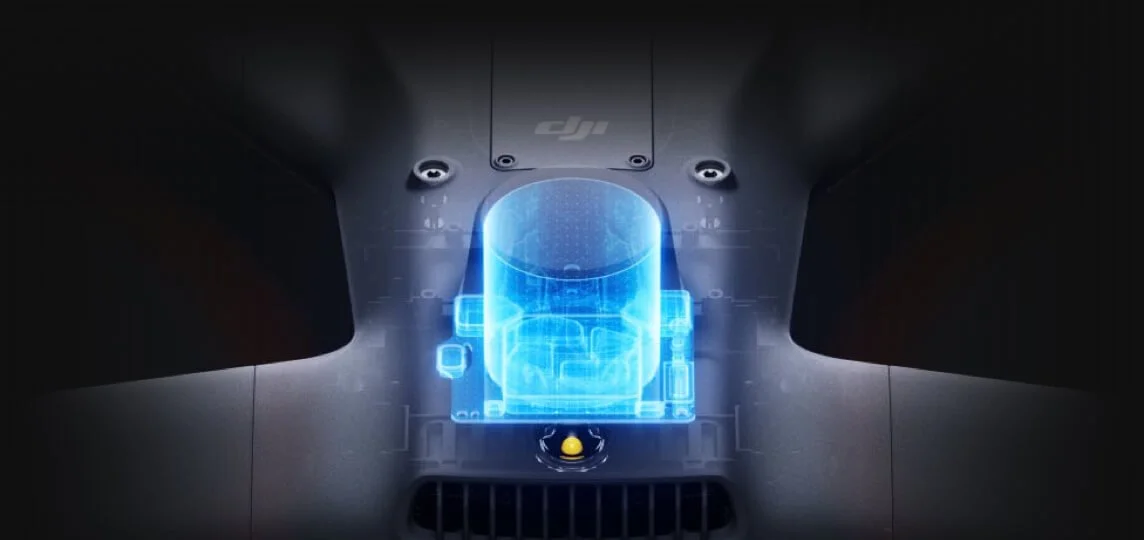

The airport integrates dual RTK antennas, so the aircraft can obtain accurate return position information without waiting for its own RTK to converge.It can complete blade detection and take off in about 45 seconds at the fastest status.
Take off quickly

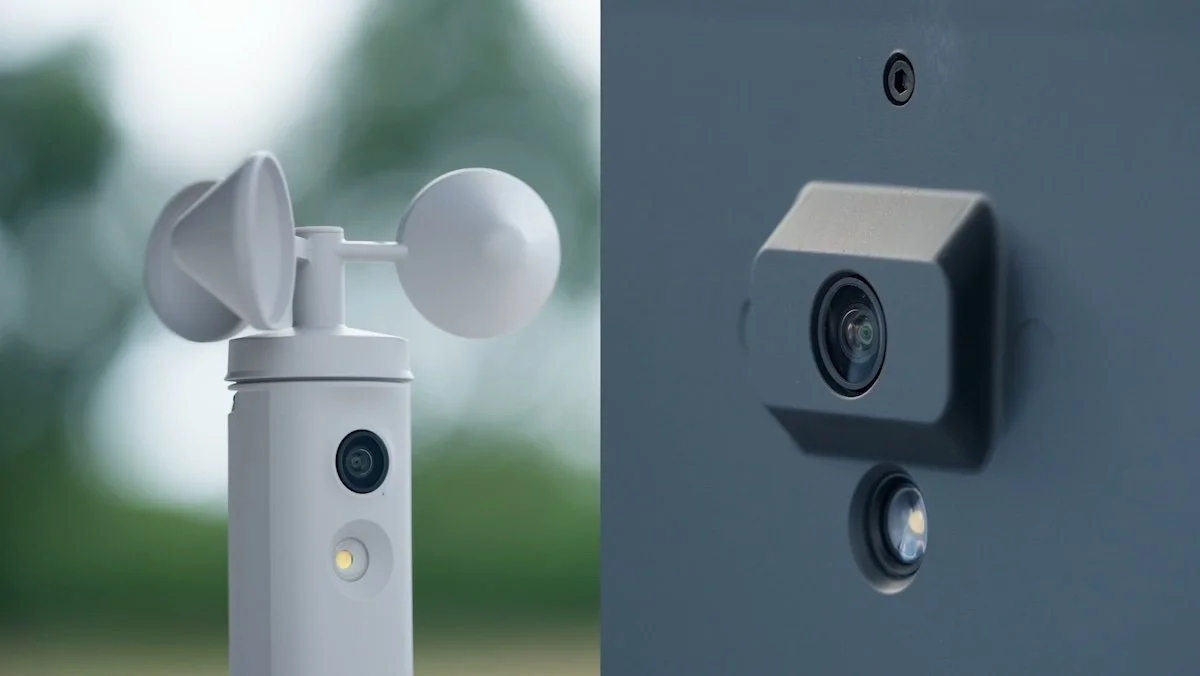

There is a fisheye camera inside and outside the airport, which can instantly display the monitoring images inside and outside the cabin, assisting operators to remotely observe weather conditions, on-site environment, and aircraft takeoff and landing conditions
Dual camera surveillance
Work in the cloud and take charge of the whole scene
Route Editor
With the help of high-precision three-dimensional models, operators can visually edit routes from a first-person perspective and preview simulated shooting results. The operation is more intuitive and efficient, and the accuracy .
Based on a high-precision 3D model, FlightHub 2 can automatically plan the optimal route for the aircraft through the pointing flight function. Before an emergency mission, the operator only needs to tap the target point, and the aircraft can fly to the destination in an efficient and safe path.
Point and fly
Route detour
When automatically executing route missions, the aircraft not only supports omnidirectional obstacle avoidance, but can also automatically bypass obstacles to improve the success rate of route mission execution.
After the aircraft completes its route mission, FlightHub 2 can generate a high-precision three-dimensional model based on the collected route data to truly restore the operating environment. The model can be annotated, measured and downloaded.
Cloud modeling
By selecting a target area in the 3D model, the aircraft can automatically compare the target shooting area and the selected image in subsequent automated operations, correct the camera's shooting angle, and ensure that the same target area can be accurately captured during multiple flights .
Accurate reshooting in the cloud

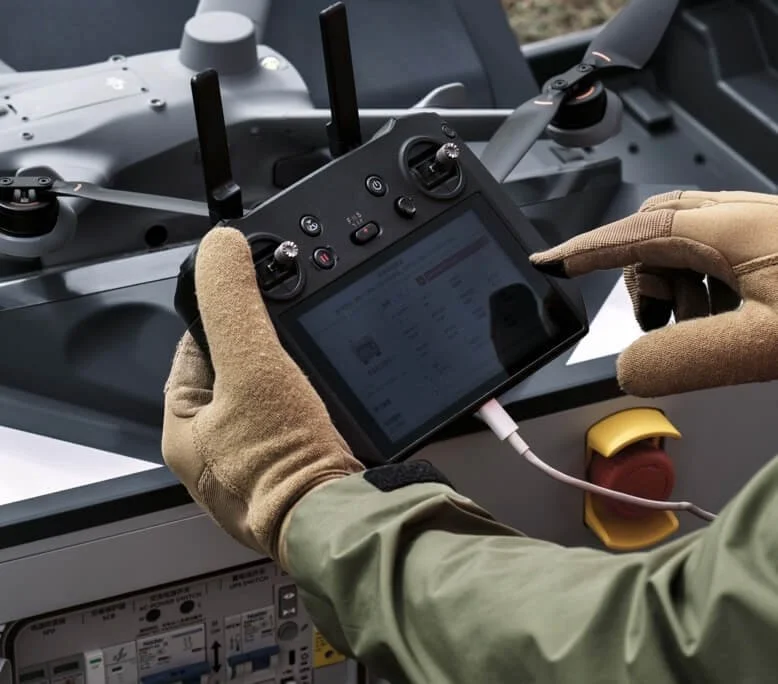

Even if the airport is deployed in a remote area, operators can still use the keyboard and mouse to control flight behavior and gimbal angle through FlightHub 2 or a third-party cloud platform.
Remote control
* The parameter data listed on this page are all measured under a controlled test environment on the mass-produced DJI Dock 2 and DJI Matrice 3D/3TD aircraft. They vary in different external environments, usage methods, and firmware versions. The results may vary to varying degrees, please refer to actual experience.
